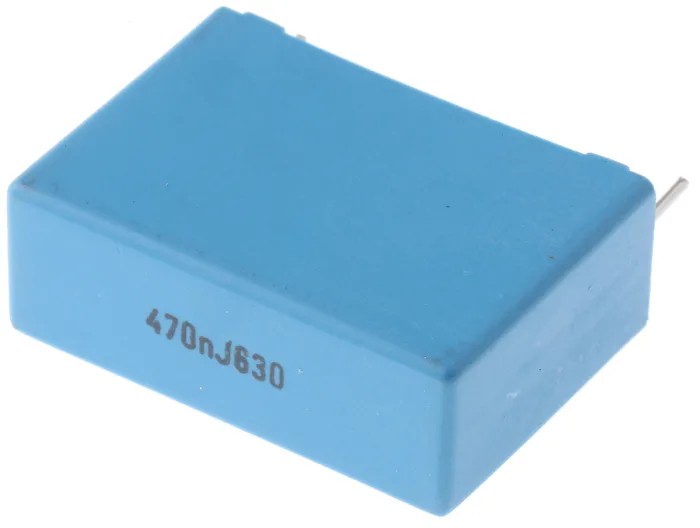

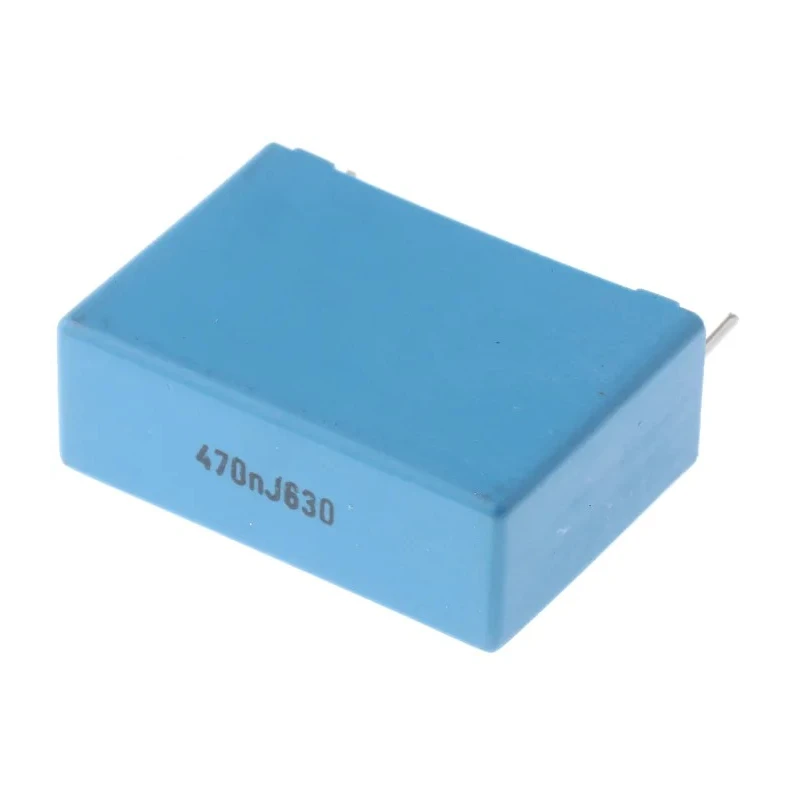

KEMET Film Capacitor, ±5 % Tolerance, 470 nF Capacitance, 630 V DC, 180 V AC, Through Hole Mounting, PHE450

Free Delivery in India | Lowest Global Shipping Charges

KEMET Film Capacitor, ±5 % Tolerance, 470 nF Capacitance, 630 V DC, 180 V AC, Through Hole Mounting, PHE450

Name: KEMET Film Capacitor, ±5 % Tolerance, 470 nF Capacitance, 630 V DC, 180 V AC, Through Hole Mounting, PHE450
Brand: KEMET
SKU: 196792
Price: 4.27 USD
Availability: InStock



Category Film Capacitor Brand KEMET Condition New

Specifications

Country of Origin	Finland
Brand	KEMET
Height	22.5mm
Length	31.5mm
Model	PHE450
Packaging	Tape & Reel
Width	11.5mm
Mount Type	Through Hole
Series	PHE450
Maximum Operating Temperature	105°C
Tolerance	±5 %
Capacitance	470nF
Minimum Operating Temperature	-55°C
Terminal type	Radial
Dissipation Factor	0.0003%
Rated Voltage	250 V dc to 3000 V dc
Lead Length	6mm
Standards/Approvals	RoHS
Pin Count	2
Rated AC Voltage	180V ac
Rated DC Voltage	630V dc
Lead Pitch	27.5mm
Lead Diameter	0.8mm
Capacitance tolerance	±5%, other tolerances on request
Lead Spacing	7.5 mm to 37.5 mm

Key Features

Constructed with double metallized polypropylene film for high reliability.
Encapsulated in self-extinguishing resin that meets UL 94 V-0 standards.
Suitable for high current stress environments such as switch mode power supplies and television deflection circuits.
Radial terminal type with 27.5 mm lead pitch and 6 mm lead length.
Operates within a temperature range of -55°C to 105°C.
Complies with RoHS standards and manufactured in Finland.
Pin count of 2 suitable for pulse and snubber circuit applications.
Low dissipation factor of 0.0003% ensuring high efficiency.

Product Description

KEMET PHE450 Film Capacitor with model number PHE450 is a high-quality electronic component offering 470 nF capacitance with a tolerance of ±5%. It supports a rated DC voltage of 630 V and a rated AC voltage of 180 V, designed for through hole mounting applications.

Manufactured using double metallized polypropylene film, these capacitors are encapsulated in a self-extinguishing resin compliant with UL 94 V-0 requirements, making them suitable for industrial, electronic manufacturing, power supply, and television circuit applications.

Its design caters to high current stress environments such as protection circuits for switch mode power supplies and deflection circuits in televisions. The radial terminal type with a lead pitch of 27.5 mm and lead length of 6 mm facilitates reliable circuit mounting.

The capacitor operates effectively within temperatures ranging from -55°C to 105°C and meets RoHS environmental standards. Its compact size of 31.5 mm length, 22.5 mm height, and 11.5 mm width with 0.8 mm lead diameter allows for efficient PCB layouts. The product is manufactured in Finland ensuring quality and reliability.

Constructed with double metallized polypropylene film for high reliability. Encapsulated in self-extinguishing resin that meets UL 94 V-0 standards. Rated for 630 V DC and 180 V AC voltages. Lead pitch of 27.5 mm and terminal type radial for through hole mounting.

Operates within a wide temperature range from -55°C to 105°C. Complies with RoHS standards for environmental safety. Low dissipation factor of 0.0003% for efficient operation. Packaging format is tape and reel for automated assembly.

Suitable for industrial, laboratory, commercial electronics, and power supply applications.

This capacitor is ideal for use in electronic manufacturing, power supply circuit design, and various industrial electronic assemblies. It is a trusted component in the electronics components segment offering stable performance and durability.
