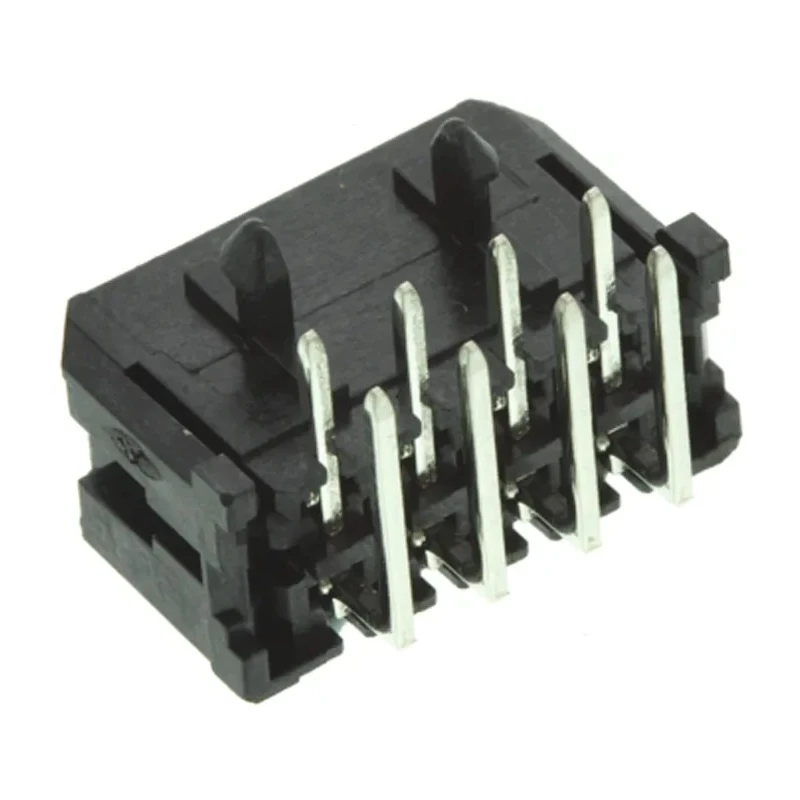

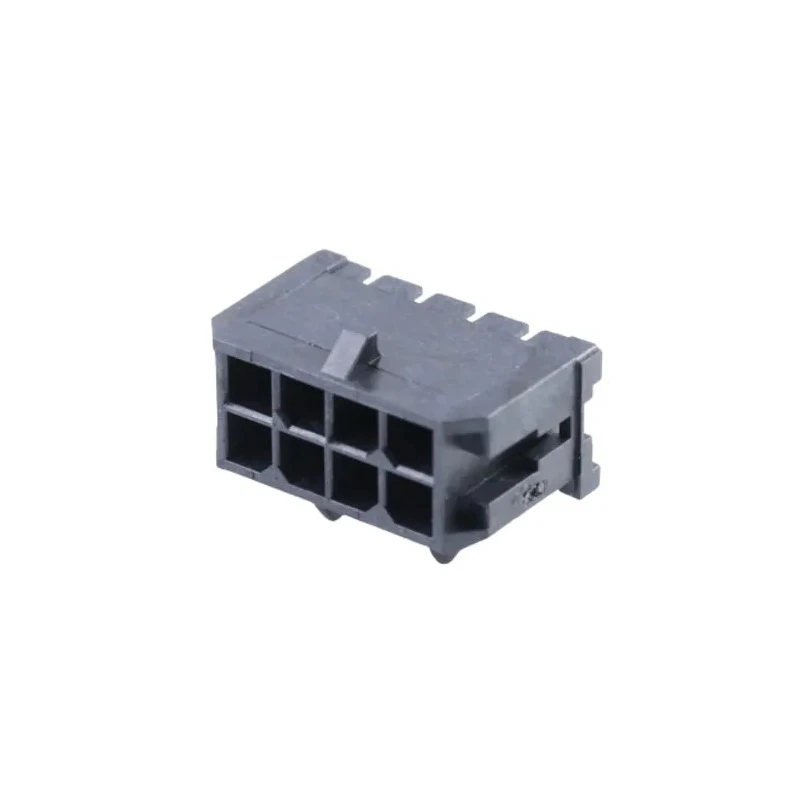

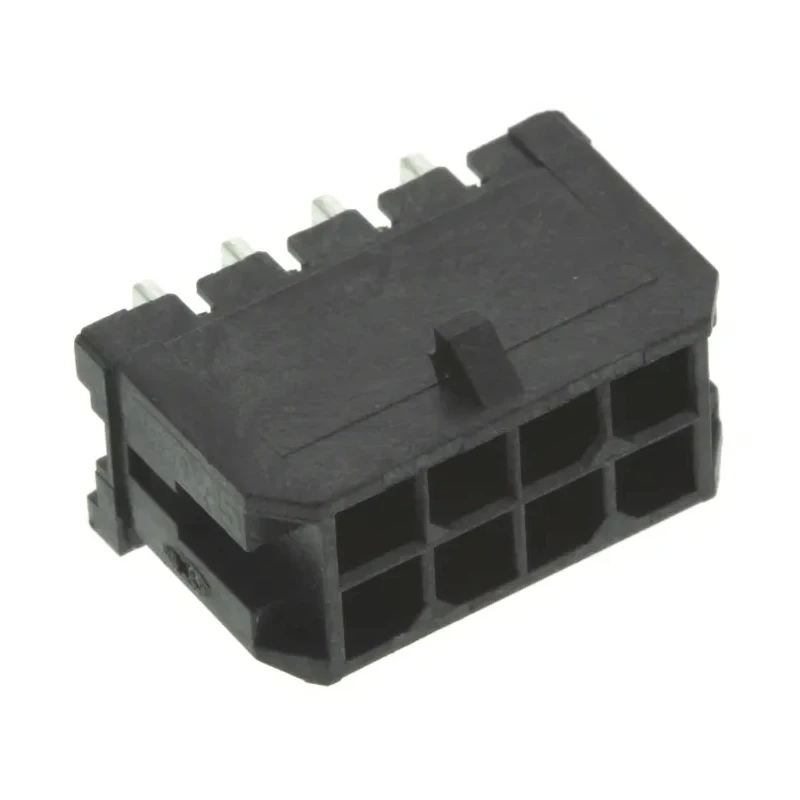

Molex Micro-Fit 3.0 Series Right Angle Through Hole PCB Header, 8 Contact, 3 mm Pitch, 2 Row, Shrouded 43045-0800
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 8.5A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | Micro-Fit 3.0 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 3mm |
| Contact Plating | Tin |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Mating Pin Length | 3mm |
Key Features
- Features a compact two-row shrouded design for enhanced EMI protection.
- Capable of carrying up to 8.5A current, suitable for light-duty power applications.
- Constructed with high-temperature thermoplastic housing for durability in harsh environments.
- Right-angle orientation improves connection flexibility in space-constrained setups.
- Through hole mounting provides firm attachment to circuit boards, ideal for vibration resistance.
- Tin-plated brass contacts ensure reliable conductivity and solder termination.
- Operates safely within -40°C to 105°C temperature range for industrial use.
- Rated for 600V voltage, supporting various electronic and industrial applications.
Product Description
Molex 43045-0800 Micro-Fit 3.0 Series PCB Header is a right-angle, through-hole mounted connector designed with 8 male contacts spaced at a 3 mm pitch across two rows. This shrouded header is primarily built for wire-to-board connections in electronic systems requiring compact, high current connectivity.
The thermoplastic housing is engineered to withstand high temperatures and physical impacts common in industrial environments. The right-angle orientation allows installation in tight spaces, granting designers flexibility without sacrificing mechanical reliability.
Tin-plated brass contacts provide excellent signal integrity and solderability, while the fully shrouded design helps reduce electromagnetic interference for better performance in sensitive circuitry.
Rated to carry currents up to 8.5A at 600V, it is suitable for light-duty applications including HVAC systems, industrial lighting, and process control equipment. Through-hole mounting ensures a robust mechanical bond with circuit boards, especially beneficial in setups exposed to vibration and mechanical stress.
Compact dual-row connector with 8 contacts for versatile multi-circuit control. Durable thermoplastic housing supports temperatures from -40°C to 105°C. Right-angle orientation facilitates easy connection in restricted spaces.
Shrouded design minimizes EMI and protects contacts. Reliable brass contacts plated with tin for conductivity and solderability. Rated for 600V and up to 8.5A current, suitable for diverse industrial applications. Through-hole mount provides secure mechanical attachment.
This Molex Micro-Fit 3.0 header is ideal for industrial, laboratory, HVAC, manufacturing, and general electronic assembly operations requiring reliable power and signal distribution. Explore our extensive range of PCB connectors and headers available on EnvMart for your specific application needs.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated to carry a maximum current of 8.5A, making it suitable for light-duty power applications.
It has a voltage rating of 600V, which supports various electronic and industrial applications.
The operating temperature range for this unit is from -40°C to 105°C, suitable for industrial environments.
This model features 8 male contacts arranged in a dual-row configuration.
It utilizes through-hole mounting, ensuring a secure mechanical bond with circuit boards, especially in vibration-prone environments.
The housing is constructed from high-temperature thermoplastic, designed for durability in harsh environments.
The contacts are spaced at a pitch of 3 mm, allowing for compact connections in electronic systems.
This model features a right-angle orientation, which improves connection flexibility in space-constrained setups.
It uses solder termination, which ensures reliable connectivity and solderability for assembly.
The contacts are made of brass and are tin-plated to ensure reliable conductivity and solder termination.
This header is shrouded, which helps minimize electromagnetic interference and protects the contacts.
