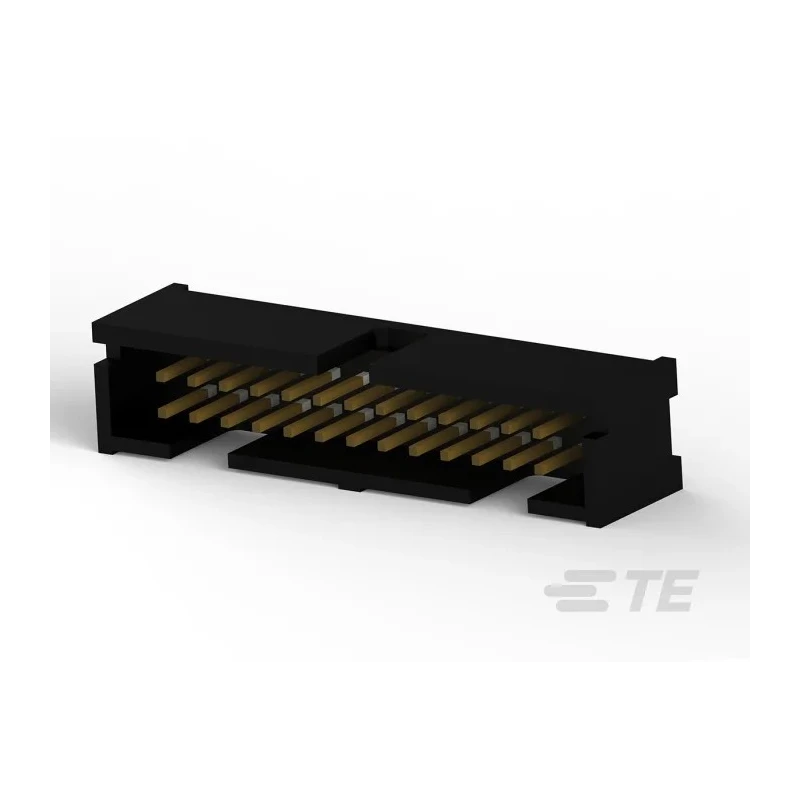

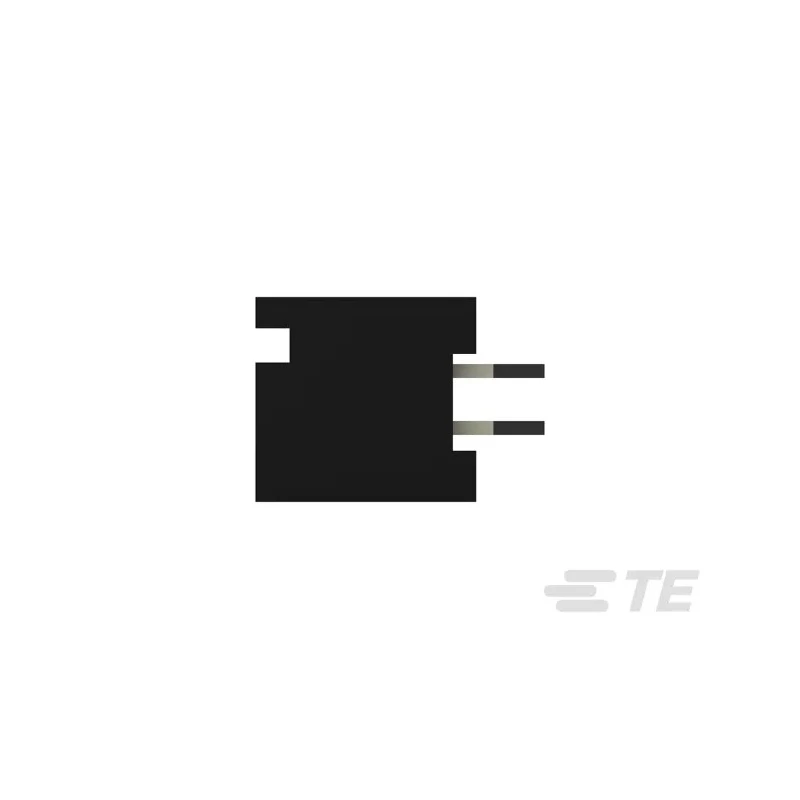

TE Connectivity 5103309-6 Series Straight Through Hole PCB Header, 26 Contacts, 2.54 mm Pitch, 2 Row, Shrouded

TE Connectivity 5103309-6 is a high-quality series PCB header designed for reliable wire-to-board connection applications. This connector features 26 male contacts arranged in 2 rows with a precise 2.54 mm pitch, suitable for through hole mounting on printed circuit boards. The housing is constructed from durable glass filled nylon and polybutylene terephthalate materials providing mechanical strength and thermal stability during operation.

Engineered for signal applications, the contacts are crafted from copper and plated with gold and nickel to ensure excellent conductivity and corrosion resistance. The connector is rated for a maximum current of 1 ampere and can withstand voltages up to 250 volts. Operating temperature range extends from -65 to 105 degrees Celsius, supporting a wide variety of industrial, commercial electronics, and manufacturing environments.

The termination type uses soldering with a tail pin length of 3.05 mm, facilitating secure through hole mounting on PCBs. The shrouded design offers protection for the contacts against accidental damage and ensures proper mating alignment through the dual polarizing bar feature. This connector assembly is designed without mating retention or panel mount features, favoring ease of installation in standard PCB layouts.

Its standard vertical orientation and standard 2.54 mm row pitch make it compatible with numerous existing PCB designs. The housing color is black, and the connector profile is low, making it suitable for compact electronic assemblies. The connector provides an insulation resistance of 5000 megohms, supporting signal integrity in electronic circuits.

Produced in China, this component is ideal for electronics manufacturing, telecommunications equipment, industrial automation, computer hardware, and various laboratory and commercial electronic systems.

Made from glass filled nylon and polybutylene terephthalate housing materials. Features a wire-to-board connector system with male copper contacts plated with gold and nickel. Rated for 1 A current and 250 V voltage with operating temperatures from -65°C to 105°C.

Termination type is solder with a 3.05 mm tail pin length for through hole PCB mounting. Shrouded design enhances mating alignment and mechanical protection of contacts. Compact vertical orientation with 2.54 mm row pitch ensuring standard spacing for PCB assembly.

Conforms to no specific external standards and made in China. Explore the TE Connectivity range and other quality PCB header solutions for your electronics projects and manufacturing needs at EnvMart.
