KEMET PHE450 Film Capacitor, ±5 % Tolerance, 220 nF Capacitance, 1.6 kV DC, 180 V AC, Through Hole Mount PHE450

Free Delivery in India | Lowest Global Shipping Charges

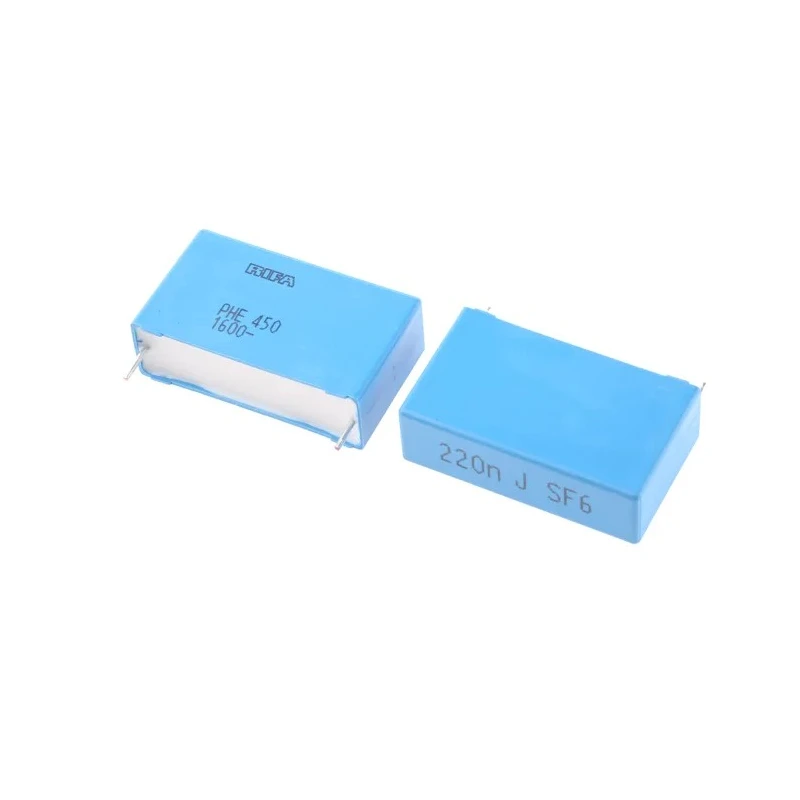

KEMET PHE450 Film Capacitor, ±5 % Tolerance, 220 nF Capacitance, 1.6 kV DC, 180 V AC, Through Hole Mount PHE450

Name: KEMET PHE450 Film Capacitor, ±5 % Tolerance, 220 nF Capacitance, 1.6 kV DC, 180 V AC, Through Hole Mount PHE450
Brand: KEMET
SKU: 196783
Price: 4.94 USD
Availability: InStock



Category Film Capacitor Brand KEMET Condition New

Specifications

Country of Origin	Finland
Brand	KEMET
Height	24mm
Length	41mm
Model	PHE450
Packaging	Tape & Reel
Width	13mm
Mount Type	Through Hole
Series	PHE450
Maximum Operating Temperature	105°C
Tolerance	±5 %
Capacitance	220nF
Minimum Operating Temperature	-55°C
Terminal type	Radial
Dissipation Factor	0.0003%
Rated Voltage	250 V dc to 3000 V dc
Lead Length	6mm
Standards/Approvals	RoHS
Pin Count	2
Rated AC Voltage	180V ac
Rated DC Voltage	1.6kV dc
Lead Pitch	37.5mm
Lead Diameter	1mm
Capacitance tolerance	±5%, other tolerances on request
Lead Spacing	7.5 mm to 37.5 mm

Key Features

Encapsulated in self-extinguishing UL 94 V-0 rated resin for safety.
Suitable for pulse and snubber circuits in power supplies and televisions.
Operating temperature range from -55°C to 105°C ensures durability.
Lead pitch of 37.5 mm with radial terminal type provides secure installation.
Low dissipation factor of 0.0003% for high efficiency.
Package includes tape & reel for automated PCB assembly.
Lead diameter is 1 mm with 6 mm lead length for robust connection.
Compliant with RoHS standards and manufactured in Finland.

Product Description

KEMET PHE450 film capacitor, model PHE450, features a capacitance of 220 nF with a tolerance of ±5 %, rated DC voltage of 1.6 kV, and AC voltage of 180 V. It is designed for through hole mounting and encapsulated in a self-extinguishing resin compliant with UL94 V-0 for enhanced safety and reliability.

This film capacitor is ideally suited for high current stress environments such as protection circuits in switch mode power supplies and deflection circuits in televisions. Its low dissipation factor of 0.0003% contributes to minimal energy loss during operation.

With an operating temperature range from -55°C to 105°C, this capacitor offers stable performance across diverse industrial and electronic applications. The radial terminal type and 37.5 mm lead pitch simplify PCB assembly and integration.

The capacitor is packaged in tape & reel, facilitating automated manufacturing processes. Its compact dimensions (41 mm length, 24 mm height, 13 mm width) make it compatible with space-constrained designs.

Manufactured in Finland, the product complies with RoHS directives, ensuring environmentally responsible materials. The lead diameter of 1 mm and lead length of 6 mm provide secure mechanical and electrical connectivity.

This film capacitor is essential for electronic components requiring high voltage handling and pulse resilience, applicable in industrial machinery, power supplies, and electronic manufacturing sectors.

Choose KEMET PHE450 film capacitor for dependable, high-performance capacitor solutions. Explore more Film Capacitors and components in the Electronics & Electricals category at EnvMart.

Encapsulated in self-extinguishing UL 94 V-0 rated resin for safety. Suitable for pulse and snubber circuits in power supplies and televisions. Operating temperature range from -55°C to 105°C ensures durability. Lead pitch of 37.5 mm with radial terminal type provides secure installation.

Low dissipation factor of 0.0003% for high efficiency. Package includes tape & reel for automated PCB assembly. Dimensions: 41 mm length, 24 mm height, and 13 mm width. Lead diameter is 1 mm with 6 mm lead length for robust connection.

Compliant with RoHS standards and manufactured in Finland.
