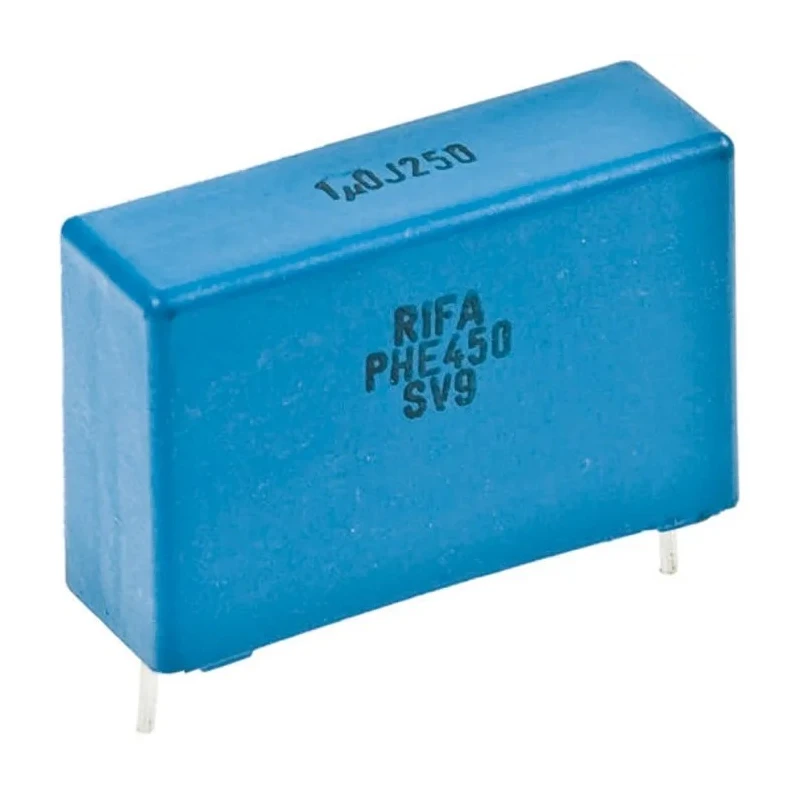

KEMET PHE450 Film Capacitor, ±5 % Tolerance, 47 nF, 630 V DC, 180 V AC, Through Hole Mount PHE450

KEMET PHE450 Film Capacitor model PHE450 is a high-performance metallized polypropylene film capacitor rated at 47 nF capacitance with ±5 % tolerance, supporting 630 V DC and 180 V AC voltage ratings. This component features a through-hole mounting with radial lead terminals designed for durable mechanical and electrical connections.

Encapsulated in a self-extinguishing resin meeting UL 94 V-0 standards, this capacitor ensures excellent fire resistance and safety in industrial and electronic applications including pulse and snubber circuits used in switch mode power supplies and deflection circuits in TV sets. The capacitor maintains performance stability within extreme temperature ranges of -55°C to 105°C, enabling use in demanding environments.

Its compact dimensions include a 15 mm lead pitch, 6 mm lead length, 0.8 mm lead diameter, and a body measuring 18 mm in length, 12.5 mm in height, and 6.5 mm in width. The low dissipation factor of 0.0003% minimizes energy losses, making it suitable for efficient electronic circuit designs.

Additionally, this capacitor comes packaged in tape and reel suitable for automated PCB assembly processes, enhancing production efficiency. Manufactured in Finland, it complies fully with RoHS environmental standards, assuring environmentally conscious manufacturing and disposal.

Applications of this capacitor include industrial electronic equipment, power supply units, signal processing devices, and consumer electronics where reliability and high voltage tolerance are critical. This capacitor is an essential component for laboratories, manufacturing, and electrical industries seeking stable and safe capacitor solutions.

The capacitor features a through-hole mount with a radial terminal type for secure PCB mounting. It is encapsulated in a self-extinguishing resin box meeting UL 94 V-0 standards. Lead pitch is 15 mm with 6 mm lead length and 0.8 mm lead diameter, ensuring robust mechanical stability.

Suitable for pulse and snubber circuits in switch mode power supplies and television deflection circuits. Operates reliably in temperatures ranging from -55°C to 105°C. Packaged in tape and reel format for automated assembly processes.

Designed for high current stress applications with low dissipation factor of 0.0003%. Manufactured in Finland adhering to RoHS compliance standards. Explore more Film Capacitors and electronic components at EnvMart to suit varied application requirements and enhance your electronic designs.
