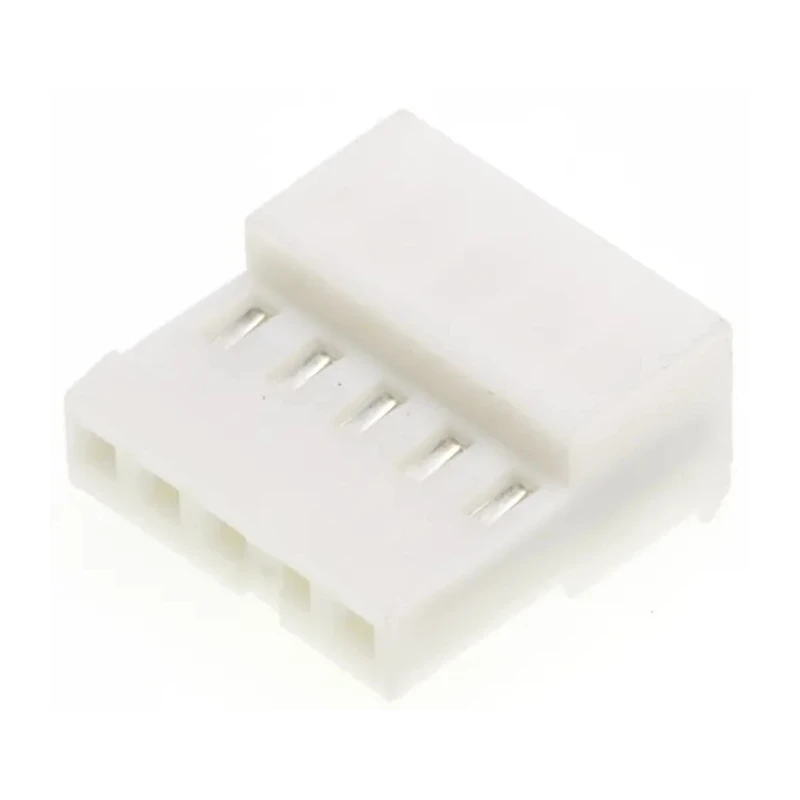

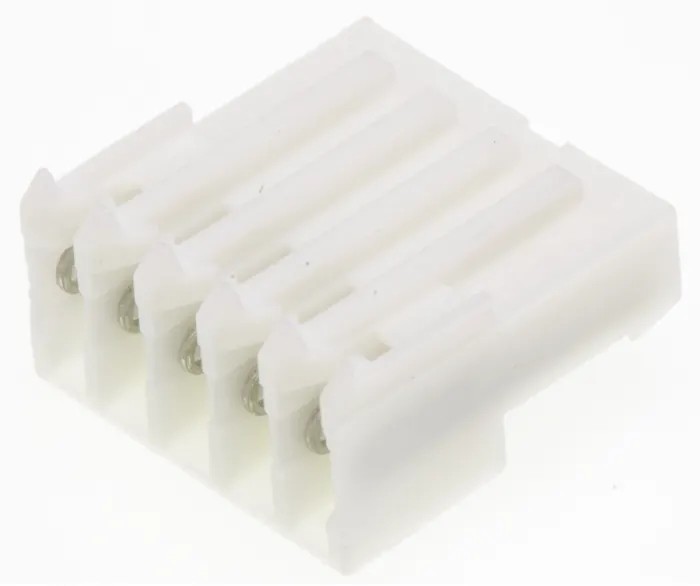

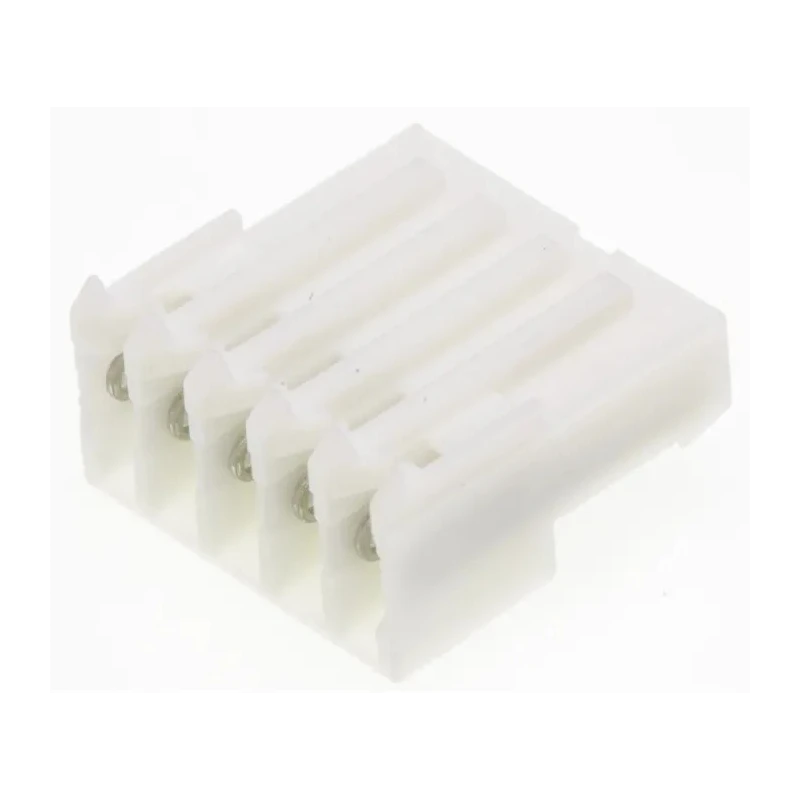

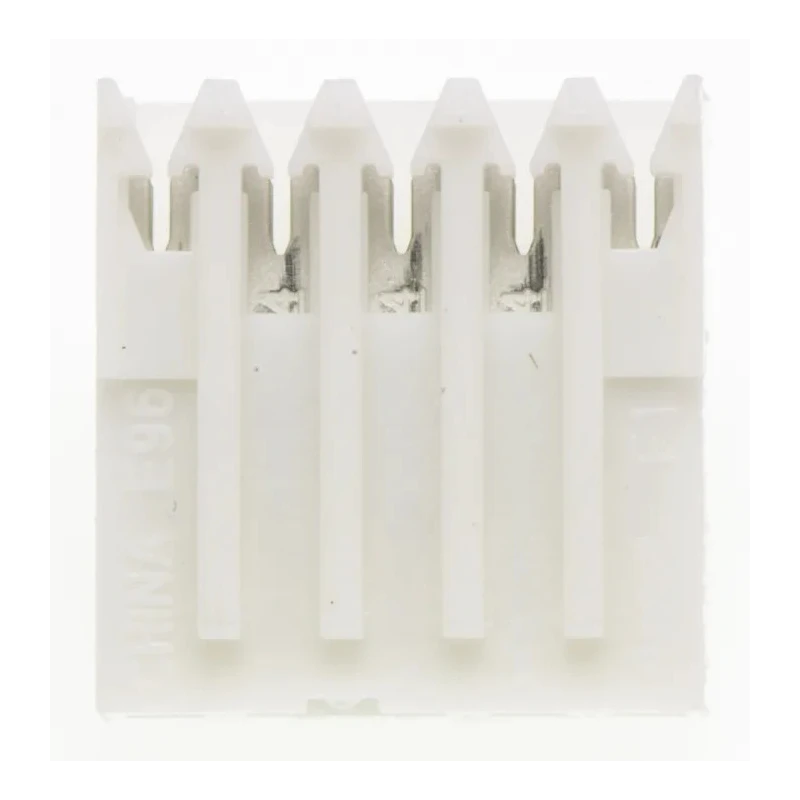

TE Connectivity 5-Way Shrouded Female IDC Connector for Cable, 1 Row, 250V AC, 5A, Right Angle Mount 3-640441-5

TE Connectivity 3-640441-5 is a 5-way shrouded female IDC connector designed for cable mounting with a single row configuration and right angle orientation. Rated for 250V AC and 5A current, this connector operates reliably across a broad temperature range from -55°C to 105°C. The housing is constructed of durable nylon material, ensuring mechanical robustness and resistance to wear. Featuring tin-over-nickel plated copper contacts, it provides excellent corrosion resistance and electrical conductivity.

This MTA-100 series connector system employs insulation displacement contact (IDC) technology, enabling one-step assembly by eliminating the need for wire stripping. The contacts are dual beam and slotted, lubricated to protect against fretting corrosion, and designed for mass termination with discrete wire sizes ranging from 28 AWG to 22 AWG or notched ribbon cable.

The connector includes a friction lock mechanism for secure mating and moulded ribs to prevent reverse connections. Polarizing tabs are available in some versions for additional alignment. It is end-to-end stackable, facilitating efficient wiring harness construction.

Widely used in automotive body and chassis systems, driver information modules, safety and security electronics, as well as in computer industry components such as desktops, notebooks, servers, and storage units, this connector supports applications demanding secure and efficient cable interconnection solutions.

Electric current rating of 5A ensures reliable power transfer. 2.54 mm pitch design allows for standardized wire spacing. Durable nylon housing withstands mechanical stresses and environmental factors. Tin over nickel plating on copper contacts resists corrosion and wear.

Temperature range from -55°C to 105°C supports diverse operating conditions. Insulation Displacement Contact eliminates wire stripping for faster assembly. Friction lock and moulded ribs enhance connector reliability and correct mating.

Right angle orientation enables compact cable routing in assemblies. End-to-end stackable design supports efficient harness construction.

Choose TE Connectivity 3-640441-5 IDC Connector for your industrial, automotive, or electronics manufacturing needs, backed by proven performance and mass termination efficiency. Explore more high-quality connectors and accessories in the EnvMart Electronics Components catalog.
