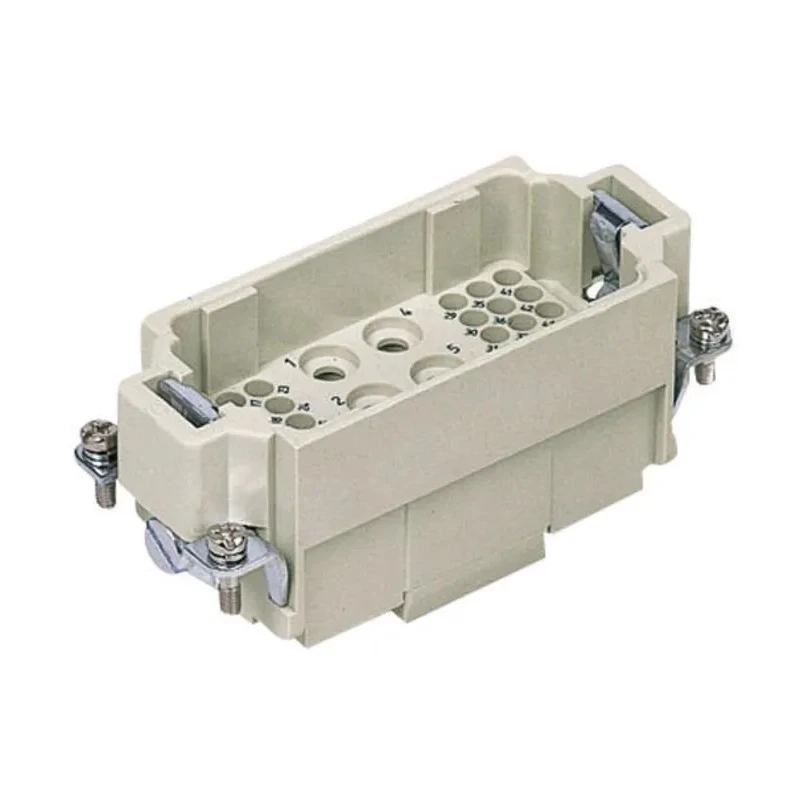

HARTING Heavy Duty Power Connector Insert 40A Han K Series Male 43 Contacts 09380423001
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 160, 690V |
| Brand | HARTING |
| Orientation | Straight |
| IP Rating | IP65 |
| Mount Type | Cable |
| Contact Material | Polycarbonate |
| Current Rating | 40A |
| Series | Han K |
| Sub Type | Connector Insert |
| Number of Rows | 4 |
| For Use With | Heavy Duty Power Connector |
| Pole Format | 43 |
| Number of Contacts | 43 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 1.5mm² |
| Maximum Wire Size mm² | 6mm² |
Key Features
- This connector is part of the Han K series and features 4 rows of contacts.
- It supports a voltage rating of 160V and 690V for different poles.
- The insert is constructed with polycarbonate contact material for durability.
- Designed with an IP65 protection rating, ensuring resistance against dust and water.
- Compatible with cable mount type installations and has a straight orientation.
- Minimum and maximum wire sizes supported are 1.5 mm² and 6 mm² respectively.
- This insert is suitable for heavy duty power connectors requiring reliable and secure connections.
- It provides a total of 43 contacts - 6 poles rated at 40A and 36 poles at 10A plus earth pole.
Product Description
HARTING 09380423001 Heavy Duty Power Connector Insert is a versatile male connector insert designed for demanding industrial and electronic applications. Rated for a current of 40A and compatible with voltages of 160V and 690V, this Han K series insert features 43 contacts arranged in 4 rows, providing reliable power and signal capabilities.
The contact material is high-quality polycarbonate, ensuring robust electrical performance and mechanical strength. The insert supports wire sizes ranging from 1.5 mm² to 6 mm², making it adaptable to various cabling requirements. Designed with a straight orientation and cable mounting type, it ensures ease of installation and secure connectivity.
With an IP65 protection rating, this insert resists dust ingress and water jets, making it suitable for harsh industrial environments. Its design supports Han-Com® signal and power crimp and screw contacts, making it ideal for integration into heavy duty power connectors.
This product is commonly used in industrial electrical systems, automation, manufacturing equipment, and power distribution setups requiring robust and reliable connectors. The connector features 6 poles rated at 40A for power and an additional 36 poles rated 10A for signals, plus a dedicated earth contact ensuring safety.
Compatibility with HARTING's range of hoods and housings allows for modular assembly, making it easier to customize solutions for various industrial applications. This insert supports a nominal current rating of 40A for power contacts.
It ensures electrical safety with IP65 ingress protection. The 43-pole configuration includes signal and power contacts for multi-function use. Constructed from polycarbonate for durability and insulation. Meets the requirements of heavy duty connector systems.
Explore more heavy duty power connectors and accessories within the EnvMart catalog for industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector insert has a nominal current rating of 40A for power contacts.
It supports voltage ratings of 160V and 690V for different poles.
The insert features a total of 43 contacts arranged in 4 rows.
It has an IP65 protection rating, providing resistance against dust and water ingress.
It supports minimum and maximum wire sizes of 1.5 mm² and 6 mm², respectively.
The contacts are constructed from polycarbonate, ensuring robust electrical performance.
This model is designed for cable mounting type installations.
It is designed with a straight orientation for ease of installation.
This insert is part of the Han K series from HARTING.
It is suitable for use in industrial electrical systems, automation, manufacturing equipment, and power distribution setups.
The connector insert includes 36 poles rated at 10A for signal use, in addition to 6 poles rated at 40A for power.
The connector insert is manufactured in India.
