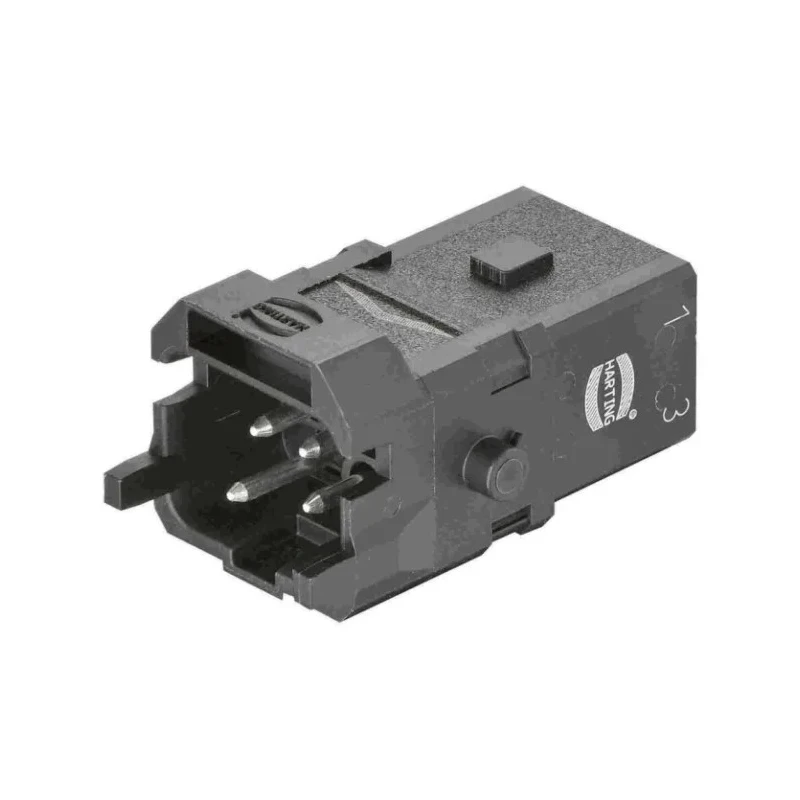

HARTING Heavy Duty Power Connector Insert 10A Han 1A Series Male 3 Contacts 09100032601
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 230, 400V |
| Brand | HARTING |
| Orientation | Straight |
| IP Rating | IP65, IP20 |
| Mount Type | Screw |
| Contact Material | Copper Alloy |
| Current Rating | 10A |
| Series | Han 1A |
| Sub Type | Connector Insert |
| Number of Rows | 2 |
| Pole Format | 3+E |
| Contact Plating | Silver |
| Number of Contacts | 3 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.75mm² |
| Maximum Wire Size mm² | 1.5mm² |
Key Features
- Supports a current rating of 10A for robust power delivery.
- Features 3+E pole format with male connector gender.
- Suitable for 230V and 400V electrical systems.
- Screw termination ensures secure and stable electrical connections.
- IP20 rating with option for IP65 protection using compatible hoods.
- Constructed with silver-plated copper alloy contacts for enhanced conductivity.
- Compatible with conductor wire sizes from 0.75mm² to 1.5mm².
- Provides reliable performance from -30°C to +90°C ambient temperatures.
Product Description
HARTING 09100032601 Heavy Duty Power Connector Insert from the Han 1A Series offers dependable industrial power connections rated for 10A current and voltages of 230V and 400V. This male connector insert features a screw termination mount type ensuring robust and secure wiring connections. It is engineered for applications requiring stable electrical interfaces in automation, industrial machinery, and mechanical systems.
The connector supports a 3+E pole format accommodating three contacts plus earth for safe power delivery. The contact elements are crafted from copper alloy with silver plating to provide excellent conductivity and corrosion resistance. Its straight orientation and snap-in latches secure connection integrity even under mechanical stress.
The IP20 ingress protection rating makes it suitable for indoor environments with protection against solid objects over 12mm. For more demanding conditions, pairing with appropriate hoods can achieve IP65 rating for dust and water resistance.
This connector insert is compatible with conductor sizes ranging from 0.75mm² to 1.5mm² and performs reliably across a wide temperature range of -30°C to +90°C. It supports a minimum of 100 mating cycles, ensuring durability in repeated connection and disconnection scenarios.
Typical use cases include automation systems requiring high current reliability, electrical installations in industrial machines, and mechanical setups demanding robust and safe electrical contacts. The screw termination method minimizes accidental disconnection risks, maintaining operational safety in electrical installations.
Users are advised not to connect or disconnect under electrical load and to avoid powering the connector in an un-mated state to maintain safety compliance. Supports a current rating of 10A for robust power delivery. Features 3+E pole format with male connector gender.
Screw termination guarantees secure connections. IP20 rated with option for IP65 with compatible hoods. Constructed with silver-plated copper alloy contacts for conductivity. Compatible with wire sizes from 0.75mm² to 1.5mm².
Operates from -30°C to +90°C ambient temperature range. Durable design supports at least 100 mating cycles. Explore more in HARTING Heavy Duty Power Connector Inserts and modules for industrial power connection solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector insert supports a current rating of 10A, making it suitable for robust power delivery.
It is compatible with voltage levels of 230V and 400V electrical systems.
This model features a screw termination type, ensuring secure and stable electrical connections.
The connector has an IP20 rating, with an option for IP65 protection when used with compatible hoods.
The contacts are constructed from a copper alloy with silver plating, enhancing conductivity and corrosion resistance.
It features a 3+E pole format, accommodating three contacts plus an earth for safe power delivery.
This connector operates reliably within an ambient temperature range of -30°C to +90°C.
It is compatible with conductor wire sizes ranging from 0.75mm² to 1.5mm².
This model supports a minimum of 100 mating cycles, ensuring durability in repeated connection and disconnection scenarios.
It is engineered for applications in automation systems, industrial machinery, and mechanical setups requiring robust electrical interfaces.
The connector has a straight orientation, which aids in secure and easy installation.
The connector is manufactured in India.
