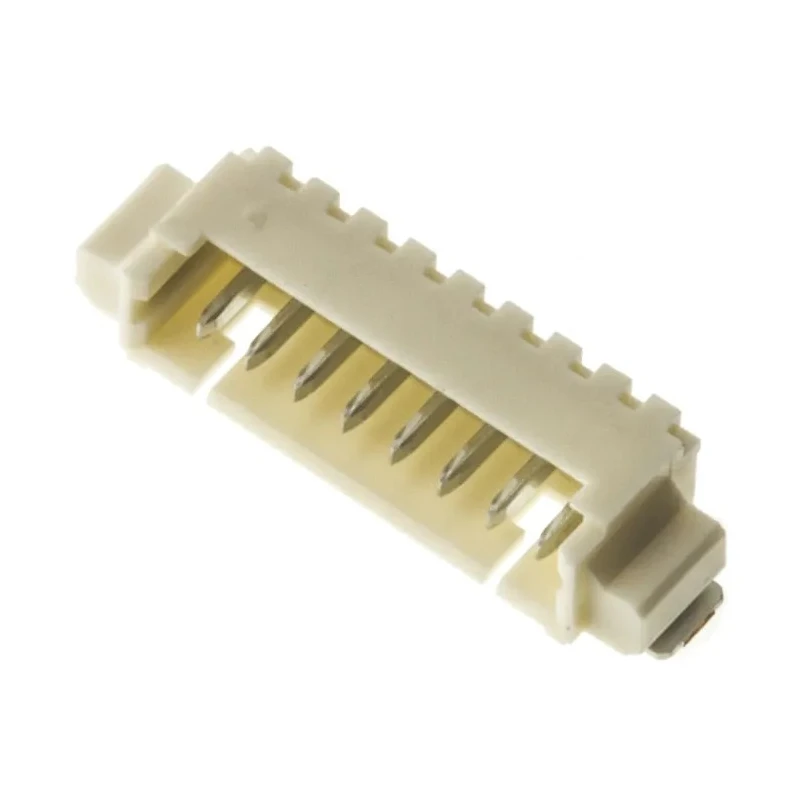

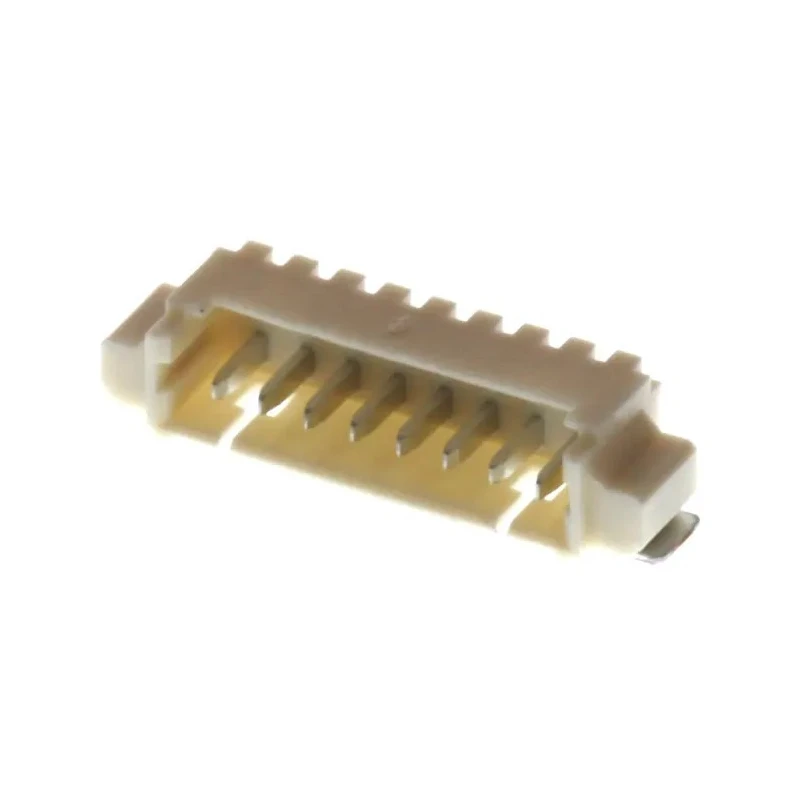

Molex PicoBlade Series Right Angle Surface PCB Header 8 Contact 1.25 mm Pitch 1 Row Shrouded 53261-0871

Molex 53261-0871 PicoBlade Series Right Angle Surface PCB Header is engineered for compact, reliable wire-to-board connections in industrial and electronics applications. Featuring 8 male contacts arranged in a single row with 1.25 mm pitch, this shrouded header supports a current rating of 1A per contact and operates up to 105°C. The thermoplastic housing ensures durability and insulation, while phosphor bronze contacts plated with tin provide corrosion resistance and reliable conduction.

The right angle orientation offers strain relief to connected cables, reducing mechanical stress, while the surface mount design streamlines installation on PCB without the need for drilling. The fully shrouded pins protect against pin bending, ensuring longevity and consistent mating cycle performance. Suitable for use in computer systems, telecommunication devices, automation, and robotics, this header is optimized for compact spaces requiring consistent electrical connection and stability under vibration.

Features include a precise 1.25 mm row pitch and solder termination providing strong mechanical and electrical attachment to printed circuit boards. The product is designed to operate reliably in temperatures ranging from -40°C to 105°C, making it suitable for a wide range of industrial electronics environments. The Molex PicoBlade connector series is known for compact pitch and modular flexibility, ideal for professional and commercial electronic devices.

1.25 mm pitch ensures precise and consistent contact spacing for reliable connectivity. Current rating of 1A per contact supports stable electrical performance. Right angle orientation reduces strain and enhances cable management.

Surface mount design enables easy installation without drilling. Fully shrouded pins protect contacts from mechanical damage and bending. Thermoplastic housing ensures insulation and durability under industrial conditions.

Phosphor bronze contacts with tin plating resist corrosion and wear. Operating temperature range from -40°C to 105°C accommodates diverse applications. Solder termination type allows secure mechanical and electrical connection to PCB.

Suitable for computer, telecommunication, automation, and robotics applications. Explore the range of Molex PCB connectors at EnvMart for industrial, laboratory, commercial, and manufacturing needs.
