ROHM 45 V 200 mA Surface Mount Schottky Barrier Diode SOD-523 RB520SM-40T2R

Free Delivery in India | Lowest Global Shipping Charges

ROHM 45 V 200 mA Surface Mount Schottky Barrier Diode SOD-523 RB520SM-40T2R

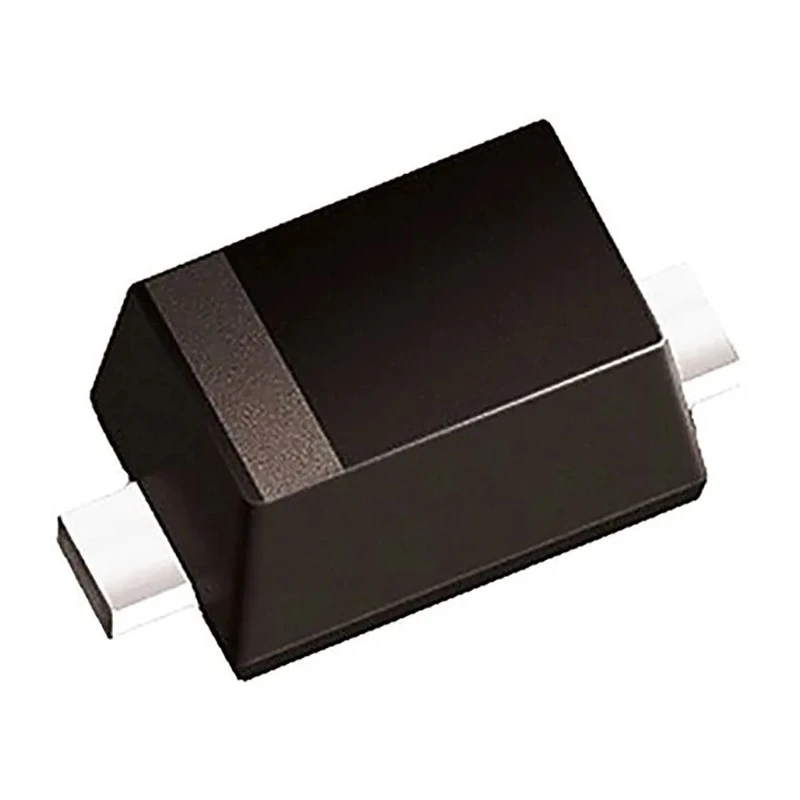

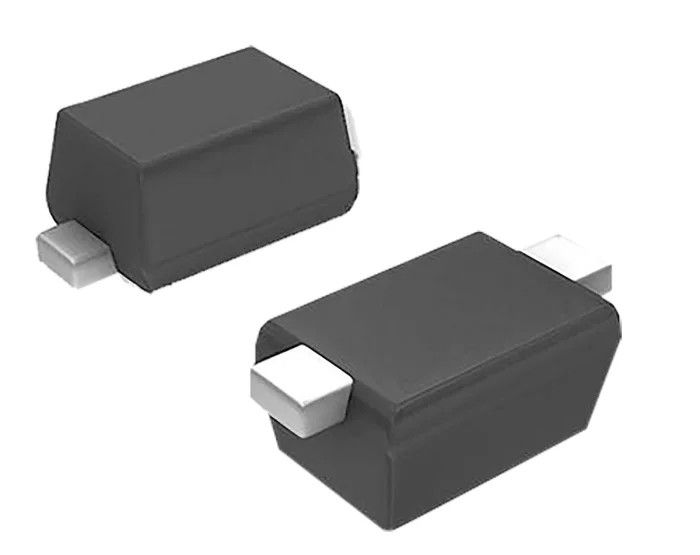

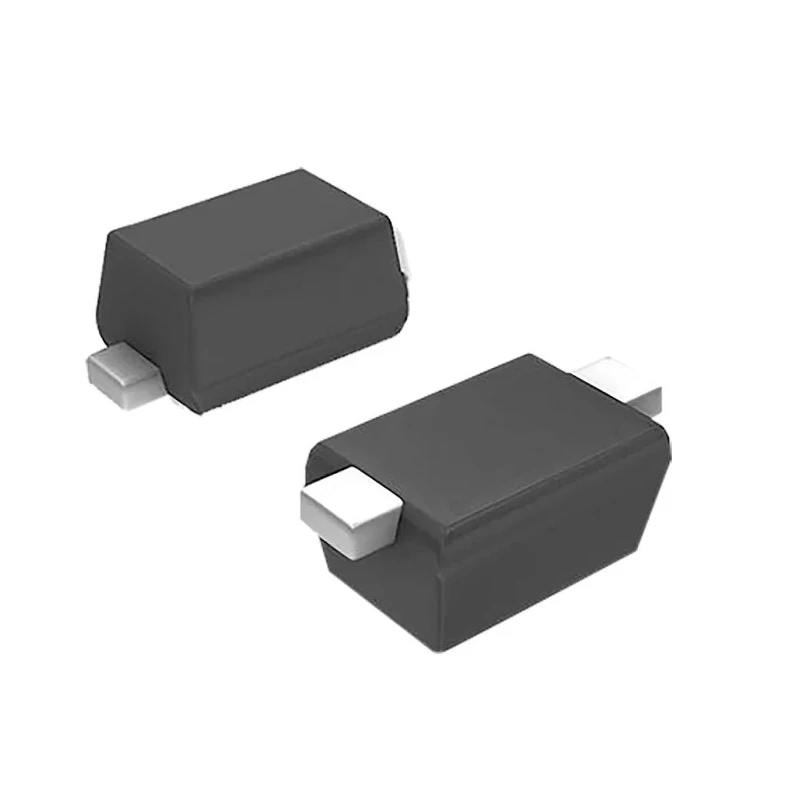

Name: ROHM 45 V 200 mA Surface Mount Schottky Barrier Diode SOD-523 RB520SM-40T2R
Brand: ROHM
SKU: 196072
Price: 0.06 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand ROHM Condition New

Specifications

Country of Origin	India
Brand	ROHM
Height	0.6mm
Length	1.2mm
Model	RB520SM-40T2R
Width	0.8mm
Mount Type	Surface
Series	RB520SM-40
Maximum Operating Temperature	150°C
Package Type	SOD-523
Minimum Operating Temperature	-40°C
Standards/Approvals	JEDEC: SOD-523, JEITA: SC-79
Pin Count	2
Maximum Continuous Forward Current If	200mA
Peak Reverse Repetitive Voltage Vrrm	45V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	10μA
Peak Non-Repetitive Forward Surge Current Ifsm	1A
Maximum Forward Voltage Vf	550mV
Standards/ApprovalsJEDEC	SOD-523, JEITA: SC-79
JEDEC	SOD-523, JEITA: SC-79

Key Features

This diode has a low forward voltage drop of 550 mV which ensures efficient power usage.
The device operates reliably between -40°C and 150°C temperature range.
Constructed with a single diode configuration and Schottky rectifier type for low-loss switching.
The package dimensions are 1.2 mm length, 0.8 mm width, and 0.6 mm height supporting surface mount technology.
Peak non-repetitive forward surge current of 1 A enables tolerance to transient surges.
Low peak reverse current of 10 µA ensures minimal leakage in reverse biased conditions.
Complies with JEDEC SOD-523 and JEITA SC-79 standards for quality and reliability.
Designed for electronic applications requiring fast switching and high efficiency in compact form factors.

Product Description

ROHM RB520SM-40T2R is a high-quality Schottky Barrier Diode designed for surface mount applications in electronic circuits. It supports a maximum continuous forward current of 200 mA and a peak reverse repetitive voltage of 45 V, making it ideal for protection and rectification purposes.

The diode features a low forward voltage of 550 mV, ensuring reduced power dissipation and improved energy efficiency during operation. It operates effectively within a wide temperature range from -40°C to 150°C, suitable for various industrial and commercial electronic environments.

Encased in a compact SOD-523 package with dimensions of 1.2 mm length, 0.8 mm width, and 0.6 mm height, this diode is perfect for surface mount technology (SMT) assembly processes, facilitating modern compact and automated PCB manufacturing.

The RB520SM-40T2R diode supports a peak non-repetitive forward surge current of 1 A, providing robustness against occasional transient current spikes. Its low peak reverse current of 10 µA minimizes leakage current, optimizing circuit performance.

This diode complies with JEDEC SOD-523 and JEITA SC-79 standards, ensuring reliable performance and quality consistency. It is widely used in electronic components, power supplies, switching regulators, and circuits that require fast switching and low forward voltage drop.

Low forward voltage reduces power loss. Wide operating temperature range from -40°C to 150°C. SOD-523 surface mount package for space-saving design. Low leakage current enhances circuit stability. Robust against transient surge currents up to 1 A.

Compliant with JEDEC and JEITA standards. Suitable for power and signal rectification in electronic systems.

This Schottky diode from ROHM is an excellent choice for engineers and manufacturers seeking efficiency and compact design in diode components. Explore similar semiconductor components and Schottky diode selections in the Electronics & Electricals category on EnvMart for your industrial and commercial needs.

Explore more products in our Schottky Diodes & Rectifiers category.
