TDK 2.2 nF Multilayer Ceramic Capacitor, 450V dc, ±5 % Tolerance, Surface Mount, C0G Dielectric, 0805 C2012C0G2W222J085AA

Free Delivery in India | Lowest Global Shipping Charges

TDK 2.2 nF Multilayer Ceramic Capacitor, 450V dc, ±5 % Tolerance, Surface Mount, C0G Dielectric, 0805 C2012C0G2W222J085AA



Category Multilayer Ceramic Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Voltage	450V dc
Brand	TDK
Height	0.85mm
Length	2mm
Model	C2012C0G2W222J085AA
Packaging	Tape & Reel
Width	1.25mm
Mount Type	Surface
Series	C
Termination Type	Surface Mount
Maximum Operating Temperature	125°C
Tolerance	±5 %
Capacitance	2.2nF
Minimum Operating Temperature	-55°C
Package/Case	0805
Dielectric	C0G
Suppression Class	Class I

Key Features

High voltage rating up to 450V dc for reliable performance.
Accurate ±5 % tolerance ensuring precision in electronic circuits.
Surface mountable 0805 package suitable for compact PCB layouts.
Utilizes C0G dielectric for low loss and stable capacitance over temperature.
Wide operating temperature range from -55°C to 125°C for harsh environments.
Class I capacitor suitable for noise bypass and filtering applications.
Low residual inductance delivers superior frequency characteristics.
Ideal for snubber circuits, power supply filters, and driver circuits.

Product Description

TDK C2012C0G2W222J085AA is a 2.2 nF multilayer ceramic capacitor designed for surface mount applications, offering a 450V dc voltage rating paired with a ±5 % capacitance tolerance. This capacitor uses a C0G dielectric known for its excellent electrical stability and low losses, making it ideal for precision electronic applications.

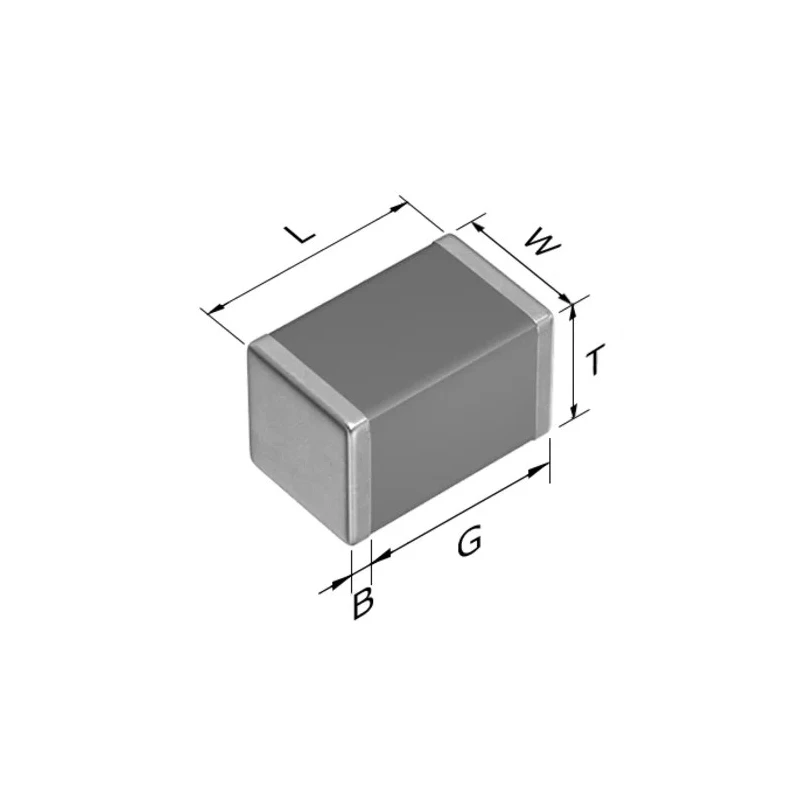

The device is housed in an 0805 package measuring 2 mm in length, 1.25 mm in width, and 0.85 mm in height, supporting compact and high-density PCB layouts. With a broad operating temperature range of -55°C to 125°C and Class I suppression classification, it excels in high-reliability environments requiring stable capacitance and thermal stability.

Features such as low residual inductance enable superior performance at high frequencies, making this capacitor suitable for use in power supply snubbers, noise bypass filters, input-output filtering, and driver circuits in plasma display panels and other consumer electronics.

The capacitor is supplied in tape and reel packaging, facilitating efficient surface mount assembly processes in industrial manufacturing settings. High voltage rating of 450V dc supports versatile power applications. ±5 % tolerance ensures tight capacitance control for critical circuits.

C0G dielectric provides low loss, stable operation over wide temperature range. Compact 0805 surface mount package compatible with automated pick-and-place machines. Wide operating temperature from -55°C to 125°C suitable for demanding environments.

Class I capacitor ideal for suppression and filtering in power electronics. Low inductance design enhances frequency response and noise reduction. Applications include snubber circuits, power factor improvement, and digital camera flash circuits.

Tape and reel packaging optimized for mass production assembly lines.

This Multilayer Ceramic Capacitor is an essential component in various industrial, automotive, consumer electronics, and HVAC systems, offering reliable performance and longevity. For more industrial and electronic components, explore EnvMart's extensive catalog of high-quality capacitors and passive components.
