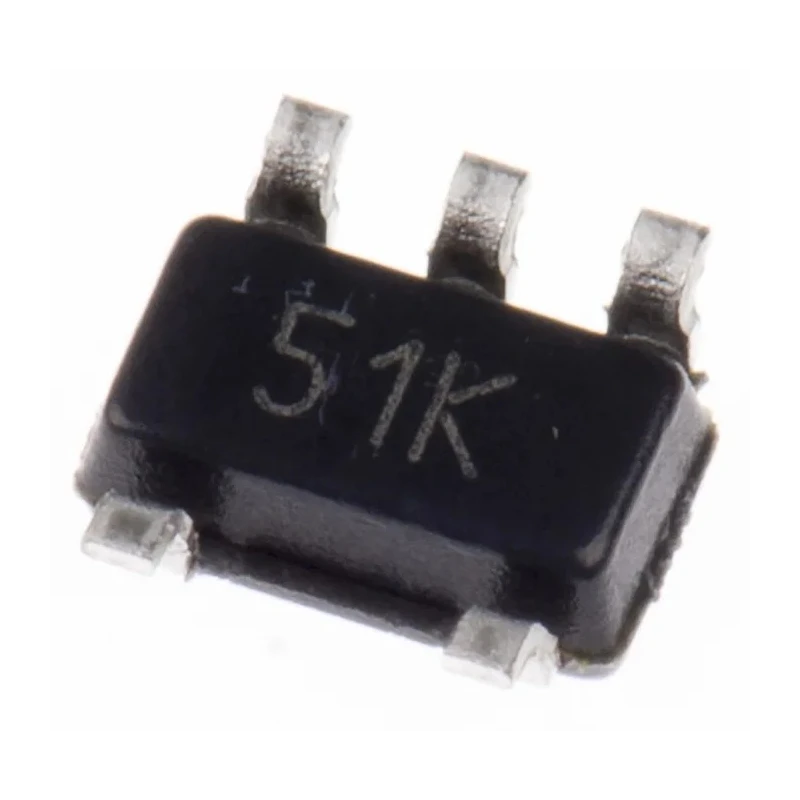

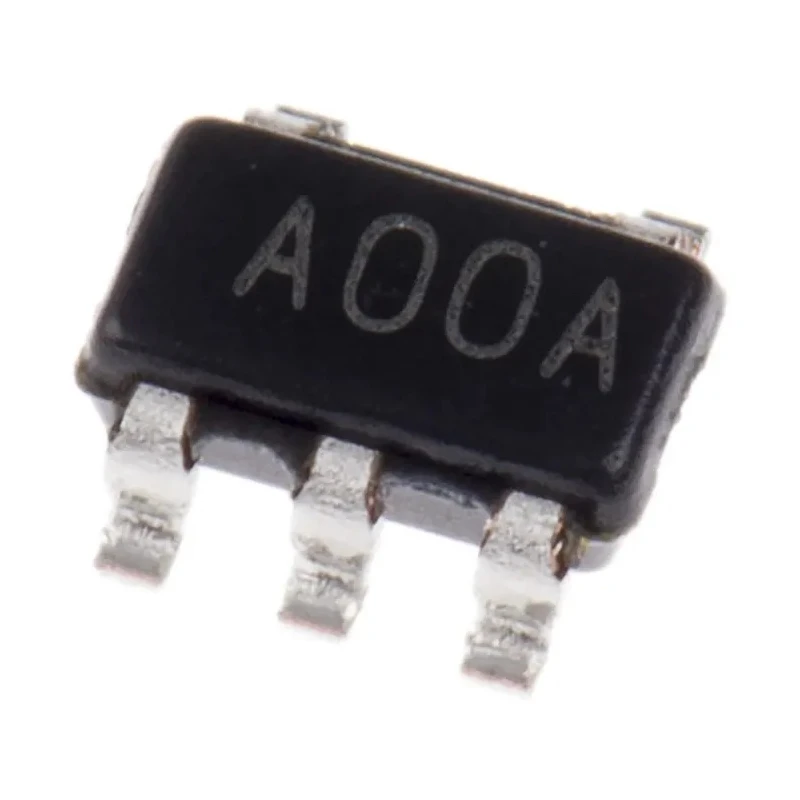

Texas Instruments Operational Amplifier 1 MHz 5-Pin 15.5V CMOS Surface Mount SOT-23 LMC7101AIM5/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.02mm |
| Length | 2.92mm |
| Model | LMC7101AIM5/NOPB |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | LMC7101 |
| Output Current | 16mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 15.5V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 64 pA |
| Vos - Input Offset Voltage | 0.11 mV |
| Slew Rate | 1V/μs |
| Input Offset Current | 32 pA |
Key Features
- The device features a gain bandwidth product of 1 MHz.
- It operates with a supply voltage range from 5V to 15.5V ensuring flexibility in power requirements.
- The operational amplifier has low input bias current of 64 pA and input offset current of 32 pA.
- The input offset voltage is 0.11 mV, providing high precision in signal amplification.
- The slew rate is 1 V/μs, enabling fast response to input changes.
- It supports a maximum output current of 16 mA for drive capability.
- The device is built with AEC-Q100 automotive standard for reliability in automotive applications.
- Operating temperature range spans from -40°C to 85°C suitable for harsh environments.
Product Description
Texas Instruments LMC7101AIM5/NOPB is a CMOS operational amplifier designed for precision amplification in electronic circuits. With a gain bandwidth product of 1 MHz and a slew rate of 1 V/μs, it offers reliable signal processing suitable for industrial, automotive, and consumer electronics applications.
This single-channel operational amplifier features low input bias and offset currents, ensuring minimal signal distortion and high accuracy over a wide range of supply voltages from 5V up to 15.5V. Its robust operation over an extended temperature range from -40°C to 85°C allows deployment in demanding environments.
The LMC7101AIM5/NOPB is housed in a compact surface mount SOT-23 package with dimensions of 2.92 mm by 1.6 mm by 1.02 mm, making it ideal for space-constrained PCB designs. It complies with the AEC-Q100 automotive standard, providing confidence for use in automotive electronic systems.
This operational amplifier can be integrated into power management, signal conditioning, and analog signal processing circuits within industrial machines, laboratory instruments, consumer electronics, and automotive systems.
The gain bandwidth product of 1 MHz ensures adequate frequency response for general purpose amplification. Low input bias and offset currents minimize signal error in precision circuits. Slew rate of 1 V/μs allows quick response to input signal changes.
Stable operation across automotive temperature range enhances reliability. Compact SOT-23 surface mount package saves PCB space. Meets AEC-Q100 automotive quality standard for enhanced durability. Single channel amplifier with 5-pin configuration supports straightforward circuit implementation.
Maximum output current of 16 mA supports driving moderate loads. Explore EnvMart’s wide selection of Texas Instruments Operational Amplifiers for your next electronics design project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the LMC7101AIM5/NOPB is 1 MHz, ensuring adequate frequency response for general purpose amplification.
It operates with a supply voltage range from 5V to 15.5V, providing flexibility in power requirements.
The input bias current is specified at 64 pA, which helps minimize signal distortion.
The maximum output current is 16 mA, allowing it to drive moderate loads effectively.
The slew rate is 1 V/μs, enabling a fast response to input changes.
The dimensions of the SOT-23 package are 2.92 mm in length, 1.6 mm in width, and 1.02 mm in height.
It complies with the AEC-Q100 automotive standard, ensuring reliability in automotive applications.
This model features a single channel configuration, supporting straightforward circuit implementation.
The input offset voltage is 0.11 mV, providing high precision in signal amplification.
The input offset current is specified at 32 pA, which contributes to the overall accuracy of the amplifier.
It is designed for surface mounting, specifically in a SOT-23 package.
