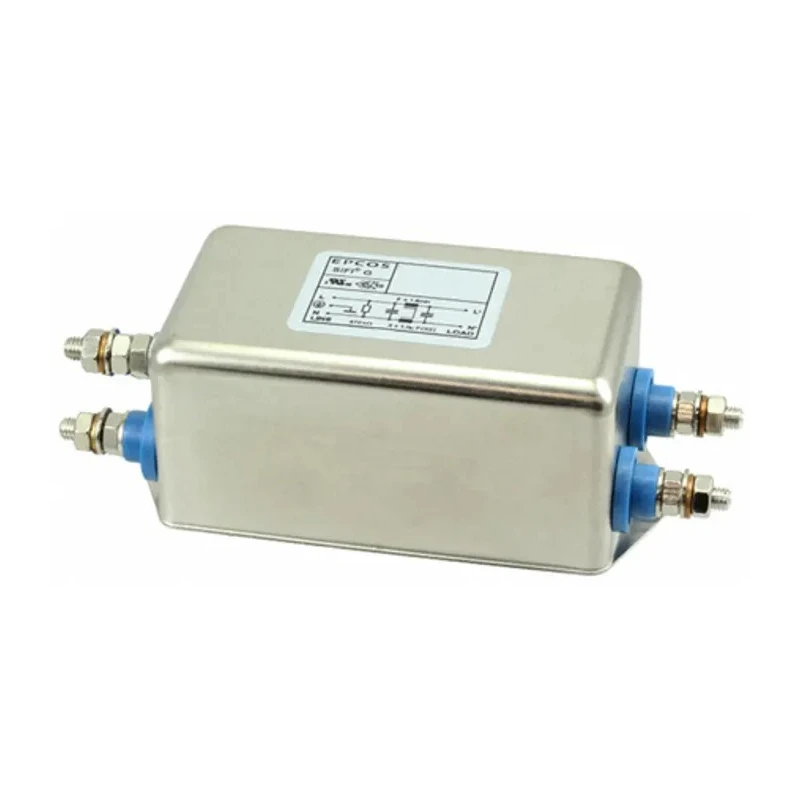

TDK Chassis Mount EMC Power Line Filter 20 A 250V AC/DC 50Hz-60Hz Screw Termination B84112G0000M120

Free Delivery in India | Lowest Global Shipping Charges

TDK Chassis Mount EMC Power Line Filter 20 A 250V AC/DC 50Hz-60Hz Screw Termination B84112G0000M120



Category Power Line Filters Brand TDK Condition New

Specifications

Country of Origin	China
Brand	TDK
Height	43mm
Length	91mm
Model	B84112G0000M120
Depth	51mm
Mount Type	Chassis Mount
Operating Frequency	50, 60Hz
Series	B84112G
Maximum Operating Temperature	100°C
Number Of Stages	1
Capacitance	2μF
Minimum Operating Temperature	-25°C
Maximum Current	20A
Number of Phases	1
Leakage Current	0mA
Maximum Voltage	250V ac/dc
Inductance	2mH
Standards/Approvals	UL1283
Termination Style	Screw

Key Features

Compact design with chassis mount and screw termination.
Operates at 50Hz and 60Hz frequencies.
Provides 2μF capacitance and 2mH inductance for EMI suppression.
Rated operating temperature range from -25°C to 100°C.
Zero leakage current for efficient filtering.
Constructed with 1 stage and single phase configuration.
Complies with UL1283 safety standard.
Ideal for industrial electronics and switch-mode power supplies.

Product Description

TDK B84112G0000M120 Chassis Mount EMC Power Line Filter provides reliable electromagnetic interference suppression for single phase electrical systems. Designed for industrial electronics and telecom applications, this filter features a compact chassis mount housing with screw termination for secure installation. It supports a maximum current of 20 A and a maximum voltage of 250V AC/DC, operating efficiently at 50Hz and 60Hz frequencies.

Constructed with a single filter stage, it offers 2μF capacitance and 2mH inductance to effectively attenuate electrical noise and disturbances. The filter's operational temperature range spans from -25°C to 100°C, ensuring durability under diverse environmental conditions. Leakage current is minimized to zero, enhancing device safety and performance.

This power line filter complies with UL1283 safety standards and measures 91mm in length, 43mm in height, and 51mm in depth, making it compact and easy to integrate into various systems. Typical applications include industrial electronics, switch-mode power supplies, telecom systems, data systems, DC applications, and medical equipment (specific versions).

Compact chassis mount design with screw termination. Maximum current rating of 20 A and voltage rating of 250V AC/DC. Operating frequency of 50 and 60 Hz. Electromagnetic noise suppression with 2μF capacitance and 2mH inductance.

Wide operating temperature range from -25°C to 100°C. Zero leakage current ensuring reliable operation. UL1283 compliance for safety standards. Dimensions: 91 x 43 x 51 mm for easy installation. Suitable for industrial, telecom, data system, and medical device applications.

Manufactured in China.
