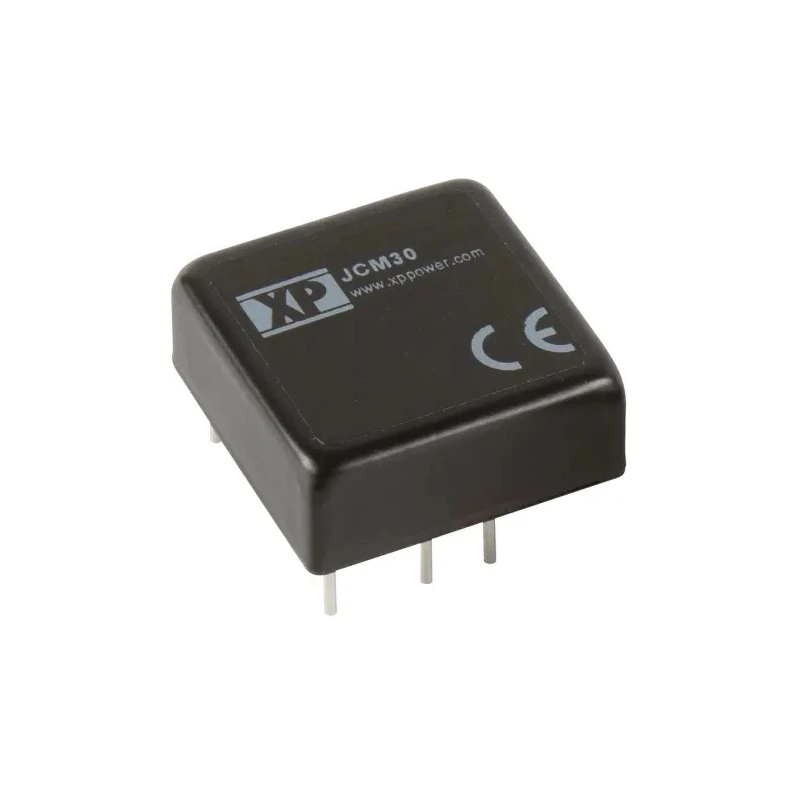

XP Power Isolated DC/DC Converter 5V DC Output 6 A 18V DC Max Input 9V DC Min Input 30 W Through Hole DIP Package JCM30
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JCM30 DC/DC Converter, 5V dc/ 6 A, 18V dc |
| Brand | XP Power |
| Efficiency | 89% |
| Length | 25.4mm |
| Model | JCM30 |
| Depth | 10.4mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | JCM30 |
| Maximum Operating Temperature | +105°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 370000h |
| Number of outputs | 1 |
| Maximum Output Power | 30W |
| Maximum Input Voltage | 18V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 6 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 6A |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Offers 1.6 kV DC isolation voltage for safe operation.
- Wide operating temperature range from -40°C to +105°C.
- High reliability with MTBF of 370,000 hours.
- Compact 25.4 mm x 25.4 mm footprint and 10.4 mm depth.
- Efficiency of 89% ensures energy savings and thermal management.
- 6-pin DIP package suitable for through-hole mounting.
- Designed for industrial, electronic, and power supply applications.
- Manufactured in Taiwan, Province Of China.
Product Description
XP Power JCM30 is an isolated DC/DC converter designed to provide a regulated 5V DC output at 6 A current with a nominal output power of 30 W. It operates from an input voltage range of 9V to 18V DC with a 2:1 input ratio, making it suitable for a variety of power supply scenarios requiring step-down voltage conversion.
The device features a 6-pin DIP through-hole package with compact dimensions of 25.4 mm length, 25.4 mm width, and 10.4 mm depth, offering ease of integration into printed circuit boards. Its isolation voltage rating of 1.6 kV DC ensures excellent electrical isolation between input and output, enhancing safety and noise immunity for sensitive electronic applications.
Operating over a wide ambient temperature range from -40°C to +105°C, the JCM30 series can function reliably in harsh industrial environments. Its high efficiency of 89% minimizes energy loss, aiding system thermal management and reducing cooling requirements. The Mean Time Between Failures (MTBF) is 370,000 hours, underscoring its suitability for demanding continuous operation.
This DC/DC converter is ideal for industrial, laboratory, communication, and instrumentation power supply applications where stable voltage conversion and electrical isolation are critical. The product is manufactured in Taiwan, Province of China, meeting quality manufacturing standards.
High isolation voltage of 1.6 kV DC enhances safety and noise rejection. Wide operating temperature supports diverse industrial environments. Compact 6-pin DIP package fits standard through-hole PCB layouts. 2:1 input ratio compatible with multiple input voltages between 9V and 18V DC.
High efficiency of 89% reduces heat generation and energy consumption. Reliable operation with a long MTBF of 370,000 hours. 30 W maximum output power suits moderate power supply needs. Output voltage regulated at 5V DC for consistent device performance.
Designed for industrial and electronic power supply applications.
Explore our Electronics & Electricals category for a wide range of high-quality power management solutions including isolated DC/DC Converters and other power supply components suitable for various industrial and commercial uses.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It provides a regulated output voltage of 5V DC with a maximum output current of 6A.
This model operates within an input voltage range of 9V to 18V DC, featuring a 2:1 input ratio.
The efficiency of this converter is rated at 89%, which helps in reducing energy loss and managing thermal performance.
It has compact dimensions of 25.4 mm in length, 25.4 mm in width, and 10.4 mm in depth.
The isolation voltage is rated at 1.6 kV DC, providing excellent electrical isolation between input and output.
It operates effectively over a wide temperature range from -40°C to +105°C.
The Mean Time Between Failures (MTBF) is 370,000 hours, indicating high reliability for continuous operation in demanding environments.
This converter is housed in a 6-pin DIP package, suitable for through-hole mounting.
It is designed for industrial, laboratory, communication, and instrumentation power supply applications where stable voltage conversion is critical.
The maximum output power is 30W, making it suitable for moderate power supply needs.
The 2:1 input ratio allows compatibility with a range of input voltages, enhancing its versatility in various power supply scenarios.
This model is manufactured in Taiwan, Province of China, adhering to quality manufacturing standards.
