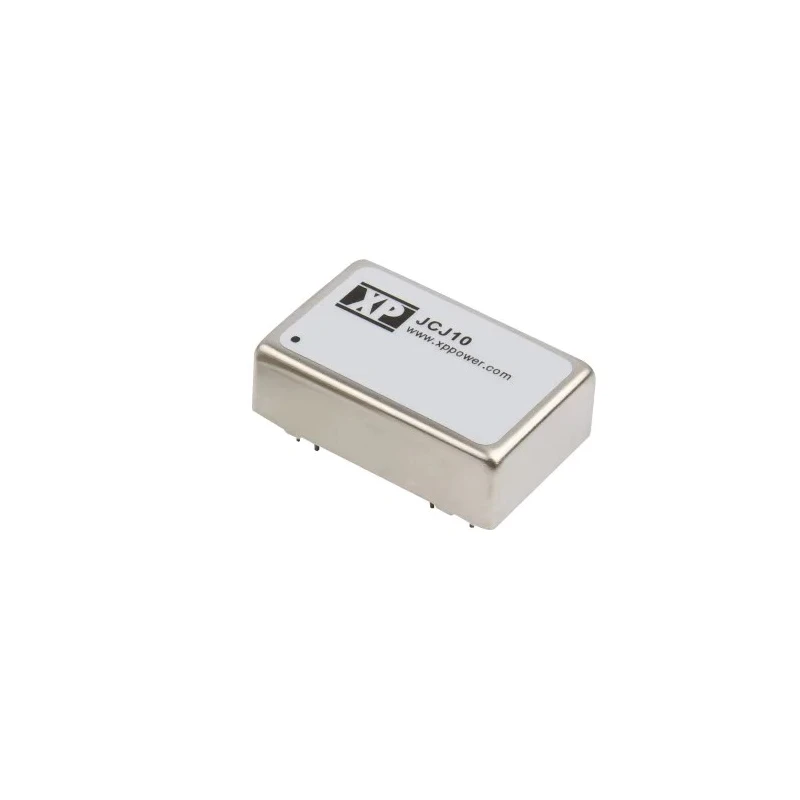

XP Power 5V 2A 10W Isolated DC/DC Converter, 18 - 36V Input, Through Hole DIP-24, JCJ1024S05
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JCJ DC/DC Converter, 5V dc/ 2 A, 36V dc I |
| Brand | XP Power |
| Efficiency | 89% |
| Length | 31.75mm |
| Model | JCJ1024S05 |
| Depth | 10.16mm |
| Width | 20.32mm |
| Mount Type | Through Hole |
| Series | JCJ |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 900000h |
| Number of outputs | 1 |
| Maximum Output Power | 10W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 24 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 2A |
| Output Voltage Adjustment Range | 18/36 V |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- It features a through hole DIP-24 package suitable for board mounting.
- Provides 1500 V DC isolation ensuring safe operation in demanding environments.
- Operates efficiently with an 89% efficiency rating.
- Wide operating temperature range from -40°C to 100°C enables usage in harsh conditions.
- Continuous short circuit protection enhances device reliability.
- Designed with 24 pins for robust electrical connections.
- Mean Time Between Failures (MTBF) is 900,000 hours reflecting high reliability.
Product Description
XP Power JCJ1024S05 DC/DC Converter is a high-reliability, isolated power module delivering 10 watts of output power with a regulated 5V DC voltage and 2A current output. It is designed for use in power supply and electronic component applications requiring stable low voltage outputs from higher DC voltage inputs ranging between 18V and 36V.
This converter comes in a through hole DIP-24 package type, making it suitable for PCB mounting in industrial, laboratory, manufacturing, and instrumentation environments. Its 1500 V DC isolation ensures the separation of input and output circuits, providing safety and noise immunity important in critical power applications.
The device exhibits an efficiency of 89%, minimizing energy loss and heat generation while supporting a wide ambient operating temperature range from -40°C to 100°C, making it functional in harsh conditions and environments.
Equipped with continuous short circuit protection, the converter prevents damage from overloads, improving longevity and system stability. The MTBF of 900,000 hours signals robust design and reliability for continuous operation. Its compact size with precise dimensions of 31.75 mm length, 20.32 mm width, and 10.16 mm depth allows integration into space-constrained systems.
The 2:1 wide input voltage range supports flexible power sources between 18V and 36V DC. 1500 V DC isolation enhances safety and electrical noise rejection. High efficiency at 89% lowers power consumption and thermal output.
Extended temperature rating enables deployment in challenging environments. DIP-24 package supports ease of mounting and integration. Continuous short circuit protection adds durability. 900,000 hours MTBF ensures dependable long-term performance.
Compact package dimensions optimize PCB space usage.
This XP Power JCJ series converter suits applications including industrial automation, instrumentation, telecommunications power supplies, and embedded computing systems requiring stable low-voltage DC power supply from high-voltage DC inputs.
Explore more high-quality power solutions and DC/DC Converters from XP Power and compatible EnvMart categories to meet diverse power management requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 5V DC with a maximum output current of 2A.
It operates with a wide input voltage range of 18V to 36V DC.
The converter has an efficiency rating of 89%, minimizing energy loss and heat generation.
The dimensions are 31.75 mm in length, 20.32 mm in width, and 10.16 mm in depth.
It features a through hole DIP-24 package suitable for board mounting.
This model offers 1500 V DC isolation, ensuring safe operation and noise immunity.
The maximum operating temperature is 100°C, allowing usage in harsh conditions.
The MTBF for this model is 900,000 hours, indicating high reliability for continuous operation.
Yes, it is equipped with continuous short circuit protection to enhance device reliability.
This converter is suitable for applications in industrial automation, instrumentation, telecommunications power supplies, and embedded computing systems.
The input ratio for this model is 2:1, accommodating flexible power sources.
The country of origin for this converter is Taiwan.
