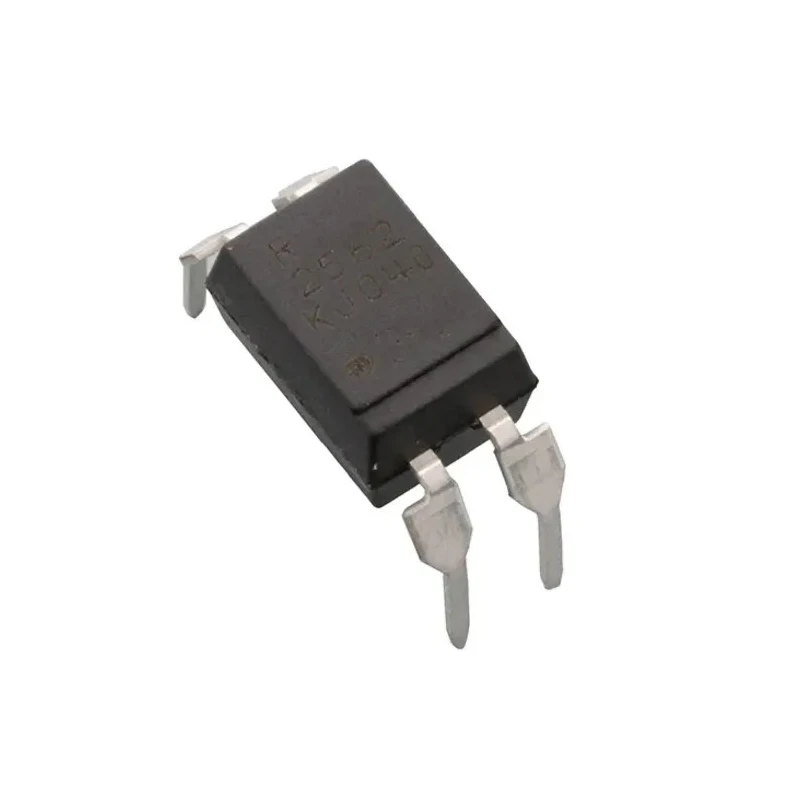

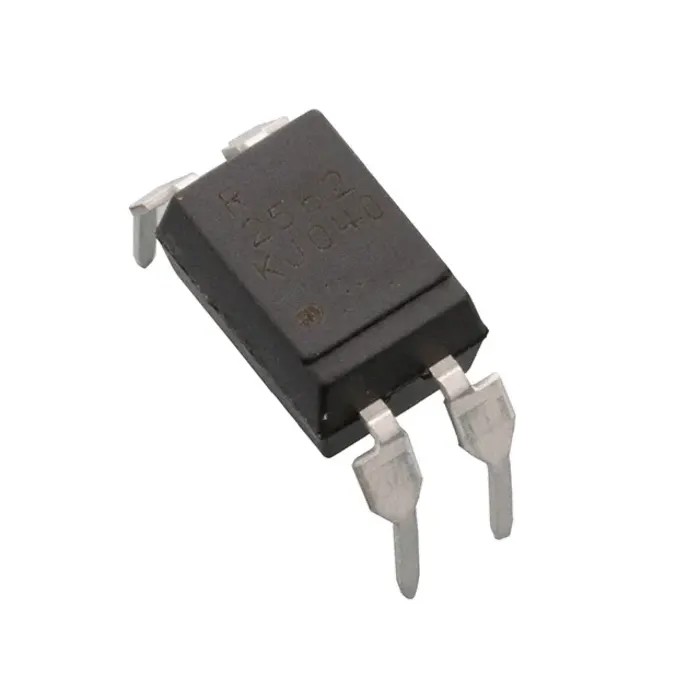

Renesas Electronics DC Input Photocoupler, Surface Mount, 4-Pin DIP, 1 Channel, 1.4V Forward Voltage, 400mA Max PS2562L1-1-A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Model | PS2562L1-1-A |
| Packaging | Magazine |
| Mount Type | Surface |
| Series | PS |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 400mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL |
| Maximum Forward Voltage | 1.4V |
| Number of Pins | 4 |
| Input Current Type | DC |
| Typical Rise Time | 100μs |
| Maximum Current Transfer Ratio | 2000% |
| Isolation Voltage | 5000V |
Key Features
- Equipped with a GaAs LED and NPN silicon Darlington phototransistor for efficient optical coupling.
- Supports a maximum forward voltage of 1.4V ensuring low input power consumption.
- Designed for a maximum input current of 400mA allowing robust signal driving.
- Provides high isolation voltage of 5000V for enhanced safety and noise immunity.
- Features a maximum current transfer ratio of 2000% for effective signal amplification.
- Typical rise and fall times are both 100μs enabling high-speed switching applications.
- Operates within a temperature range of -55°C to 100°C for reliable industrial use.
- Meets UL standards for safety and quality assurance.
Product Description
Renesas Electronics PS2562L1-1-A DC Input Photocoupler is a surface mount optocoupler with a 4-pin DIP package, designed to provide high isolation voltage and fast switching performance. It contains a gallium arsenide (GaAs) light emitting diode (LED) and an NPN silicon Darlington-connected phototransistor that offers efficient optical coupling and signal amplification.
The device features a maximum forward voltage of 1.4V and can handle a maximum input current of 400mA, making it suitable for robust signal transmission with low power consumption. It delivers a maximum current transfer ratio of 2000% and isolation voltage up to 5000 volts, ensuring safety and reliability in noisy electrical environments.
The PS2562L1-1-A supports typical rise and fall times of 100 microseconds, allowing for high-speed switching which is essential in industrial electronic circuits. Its operating temperature range from -55°C to 100°C ensures suitability for rigorous industrial, manufacturing, and HVAC control systems.
This optocoupler complies with UL standards, emphasizing safety and quality, and is packaged in a magazine format for automated insertion into machinery, optimizing production efficiency.
High isolation voltage of 5000V for electrical safety. Maximum current transfer ratio of 2000% to guarantee strong signal relay. Fast switching times with 100μs typical rise and fall times. Wide operating temperature range from -55°C to 100°C.
Surface mount DIP package facilitating assembly in automated systems. Designed with GaAs LED and Darlington phototransistor for high performance. Compatible with industrial and electronic component applications requiring isolation.
This product is a reliable choice for industrial, laboratory, construction, manufacturing, and power electronics applications requiring optical isolation for signal integrity and electrical safety. Explore more Electronics Components on EnvMart to find related products and accessories.
Explore more products in our Electronic Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for this model is 400mA, allowing for robust signal transmission.
It provides a high isolation voltage of 5000V, ensuring electrical safety and noise immunity.
The typical rise time for this unit is 100 microseconds, enabling fast switching applications.
It operates within a temperature range of -55°C to 100°C, making it suitable for various industrial applications.
This model is packaged in a 4-pin DIP format, designed for surface mounting.
The maximum forward voltage is 1.4V, ensuring low input power consumption.
It has 1 channel, designed for efficient optical coupling and signal amplification.
The maximum current transfer ratio is 2000%, which allows for effective signal amplification.
Yes, it meets UL standards for safety and quality assurance.
It supports DC input current, making it suitable for various electronic applications.
It features a GaAs LED and an NPN silicon Darlington-connected phototransistor for efficient optical coupling.
This photocoupler is suitable for industrial, laboratory, construction, manufacturing, and power electronics applications requiring optical isolation.
