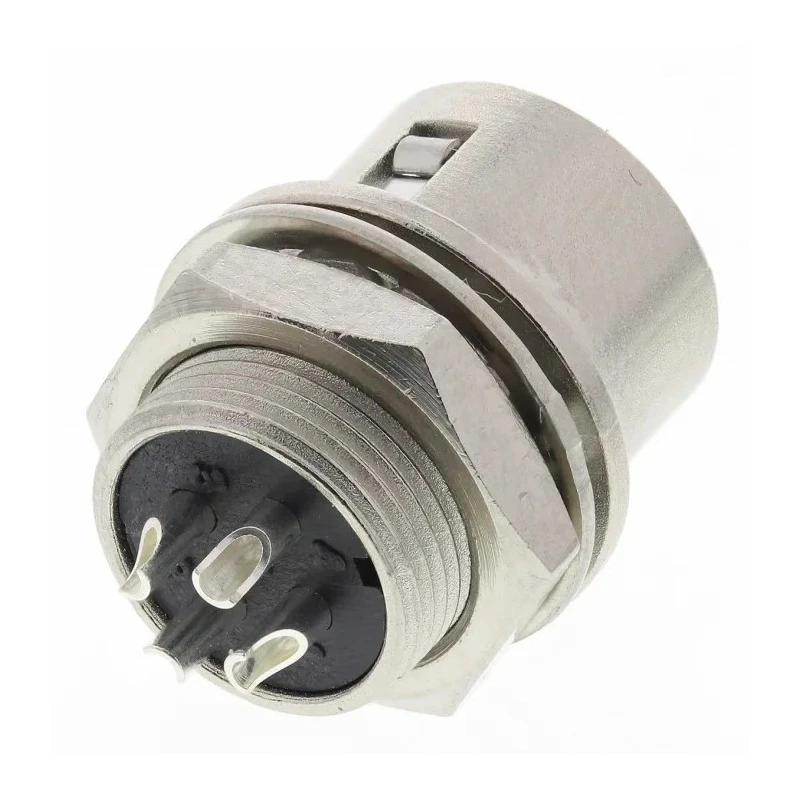

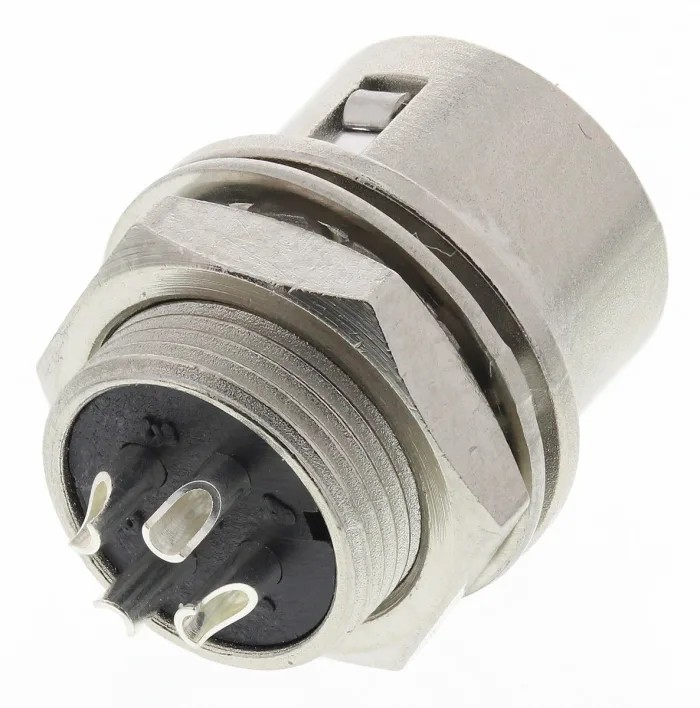

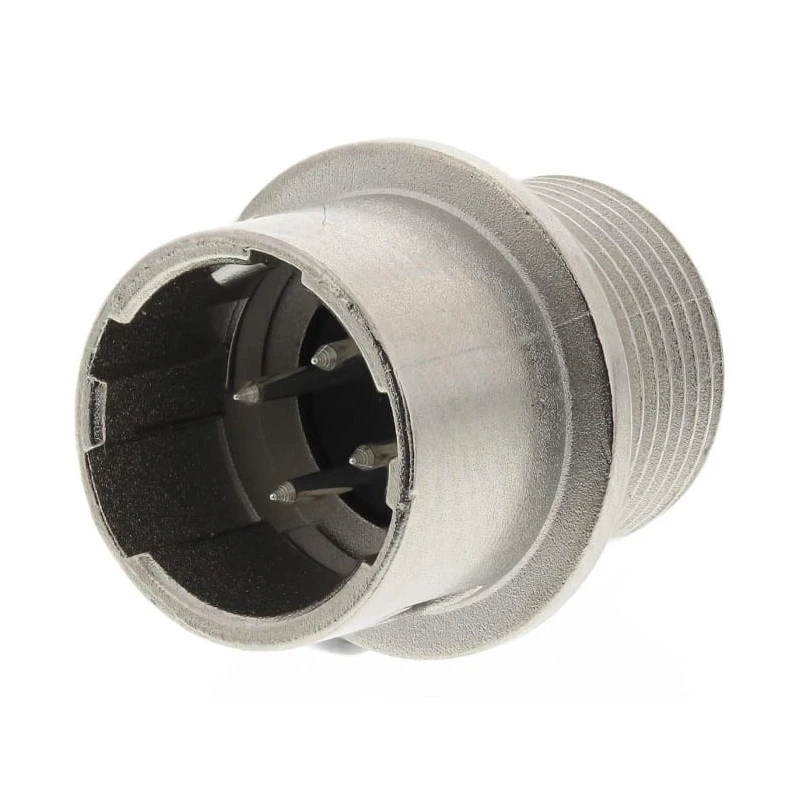

Hirose Circular Connector 4 Contacts Panel Mount Miniature Socket Male Push Pull 100V 2A HR10A-7R-4P(73)

Free Delivery in India | Lowest Global Shipping Charges

Hirose Circular Connector 4 Contacts Panel Mount Miniature Socket Male Push Pull 100V 2A HR10A-7R-4P(73)

Name: Hirose Circular Connector 4 Contacts Panel Mount Miniature Socket Male Push Pull 100V 2A HR10A-7R-4P(73)
Brand: Hirose
SKU: 195504
Price: 8.28 USD
Availability: InStock



Category Industrial Circular Connectors Brand Hirose Condition New

Specifications

Country of Origin	China
Voltage	100V
Brand	Hirose
Orientation	Straight
Current	2A
Model	HR10A-7R-4P(73)
Mount Type	Panel Mount
Housing Material	Brass
Contact Material	Bronze
Series	HR10
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Pole Format	4
Contact Plating	Silver
Number of Contacts	4
Contact Gender	Male
Shell Size	7
Mating Type	Push Pull
Connector Size	Miniature
Plug/Socket	Socket

Key Features

Features a five-key polarization system for precise alignment and positive mating.
Push-pull coupling mechanism allows quick and smooth connection and disconnection.
Compact and lightweight brass housing ideal for high-density mounting in limited space.
Operates reliably within temperature range of -25°C to 85°C.
Silver-plated bronze contacts ensure excellent conductivity and durability.
Solder termination type allows secure cable connection.
Designed for industrial, commercial, electronic, and electrical small equipment applications.
Suitable for use with computers, audio/video equipment, measuring instruments, and portable wireless devices.

Product Description

Hirose HR10A-7R-4P(73) circular connector from the HR10 Series is a high-quality 4-contact miniature socket connector with male contacts, intended for panel mount applications. It supports a 100V voltage and 2 ampere current rating, ensuring robust performance in demanding electronic and industrial environments.

The connector's brass housing offers durability with a lightweight design, optimized for high-density mounting where space is constrained. The five-key polarization system provides accurate alignment, enabling secure and positive mating even under blind mating conditions.

Featuring a simple push-pull coupling mechanism, the connector delivers quick and smooth connection and disconnection, enhancing ease of use in assembly and maintenance. The contact plating with silver and use of bronze material improves electrical conductivity and resistance to wear.

Rated for operation between -25°C and 85°C, this connector withstands a broad range of temperatures suitable for various industrial, laboratory, commercial, HVAC, manufacturing, water treatment, and agricultural applications.

Termination is achieved via soldering for a secure and reliable connection. The HR10A series is suitable for use with computers, peripherals, audio and video equipment, instrumentation, and portable wireless devices.

Features a five-key polarization system for precise alignment and positive mating. Push-pull coupling mechanism enables fast, single-action connection and disconnection. Compact brass housing ensures durability and optimal fit in dense configurations.

Rated for 100V and 2A operating conditions within a temperature range of -25°C to 85°C. Silver plated bronze contacts offer enhanced conductivity and corrosion resistance. Solder termination type is suited for secure cable attachment.

Ideal for industrial, commercial, and electronic applications requiring miniature connectors.

This Hirose HR10A series connector is an excellent choice for engineers and technicians designing systems where reliable, compact, and efficient circular connectors are required. Explore more connectors and industrial-grade components on EnvMart.

Explore more products in our Industrial Circular Connectors category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This connector supports a voltage of 100V and a current rating of 2A.

It operates reliably within a temperature range of -25°C to 85°C.

The termination type for this connector is solder, allowing for a secure cable connection.

The housing is made of brass, and the contacts are silver-plated bronze, which enhances conductivity and corrosion resistance.

The push-pull coupling mechanism allows for quick and smooth connection and disconnection, enhancing ease of use during assembly and maintenance.

This model is a miniature socket with 4 contacts and a shell size of 7.

The connector is rated for a wide operating temperature range, but specific outdoor suitability is not mentioned; it is primarily designed for industrial and commercial applications.

It is designed for use in industrial, commercial, electronic, and electrical small equipment applications, including computers and audio/video equipment.

It features a five-key polarization system for precise alignment and positive mating, which helps ensure secure connections even under blind mating conditions.

The country of origin for this connector is China.

The orientation of this connector is straight, designed for panel mount applications.

The silver plating on the bronze contacts improves electrical conductivity and resistance to wear, enhancing the overall performance of the connector.
