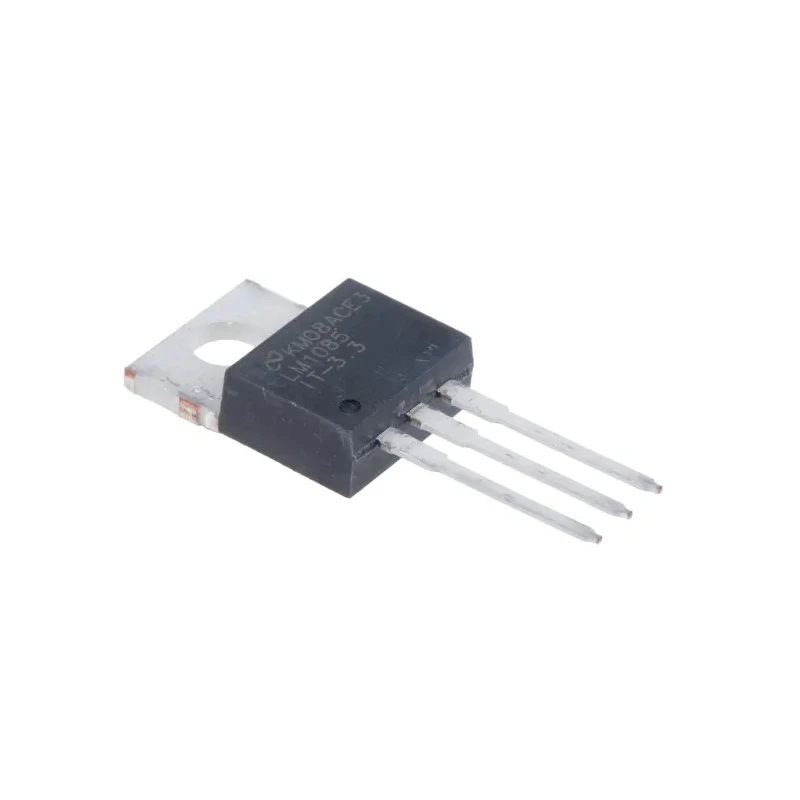

Texas Instruments Voltage Regulator TO-220 3-Pin 27V Input 5mA Quiescent Current LM1085IT-3.3/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 8.89mm |
| Length | 10.16mm |
| Model | LM1085IT-3.3/NOPB |
| Width | 4.7mm |
| Mount Type | Through Hole |
| Series | LM1085 |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Polarity | Positive |
| Maximum Input Voltage | 27V |
| Quiescent Current | 5mA |
| Minimum Input Voltage | 2.6V |
| Pin Count | 3 |
Key Features
- The device operates with a positive polarity and has a pin count of 3.
- It supports through-hole mounting suitable for PCB integration.
- Its maximum operating temperature is rated up to 125°C ensuring reliable performance.
- Compact dimensions include length 10.16mm, width 4.7mm, and height 8.89mm.
- The LM1085 series offers low dropout voltage and high power supply ripple rejection.
- Designed for low noise and excellent line regulation in power management circuits.
- Ideal for applications requiring stable 3.3V output from input voltages up to 27V.
Product Description
Texas Instruments LM1085IT-3.3/NOPB is a low dropout (LDO) linear Voltage Regulator designed to provide a stable 3.3V output from inputs ranging between 2.6V to 27V. The regulator is housed in a TO-220 3-pin through-hole package which facilitates easy PCB mounting in power management applications. It operates with a positive polarity and exhibits a low quiescent current of 5mA, supporting efficient power consumption.
This device is well-suited for industrial, electronics, and laboratory power supply applications that demand precise voltage regulation with minimal noise and excellent line voltage regulation. The LM1085 series ensures reduced output noise and high power supply ripple rejection (PSRR), enhancing performance in sensitive analog and digital circuits.
The LM1085 operates reliably up to a maximum temperature of 125°C, making it appropriate for demanding environments. Mechanical dimensions are compact with a length of 10.16mm, width of 4.7mm, and height of 8.89mm, enabling easy integration in constrained spaces.
Designed to improve production efficiency, the LM1085IT-3.3/NOPB is an ideal component in voltage regulation schemes requiring 3A output current capabilities and a regulated 3.3V supply voltage.
The device features low dropout voltage ensuring operation with a small input-output differential. It provides excellent line regulation with minimal output noise. Pin configuration simplifies inclusion into existing designs.
Suitable for use in consumer electronics, industrial instrumentation, and embedded systems. Its through-hole mounting package enhances ease of assembly and replacement. Explore more power management solutions and components from Texas Instruments and other reputed manufacturers on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output voltage of 3.3V.
The maximum input voltage for this regulator is 27V.
It has a low quiescent current of 5mA, which supports efficient power consumption.
The dimensions are 10.16mm in length, 4.7mm in width, and 8.89mm in height.
It can operate reliably at a maximum temperature of 125°C.
This voltage regulator supports through-hole mounting, making it suitable for PCB integration.
The minimum input voltage required is 2.6V.
It has a pin count of 3.
This model belongs to the LM1085 series.
It operates with a positive polarity.
It is suitable for industrial, electronics, and laboratory power supply applications that require precise voltage regulation.
It comes in a TO-220 package type.
