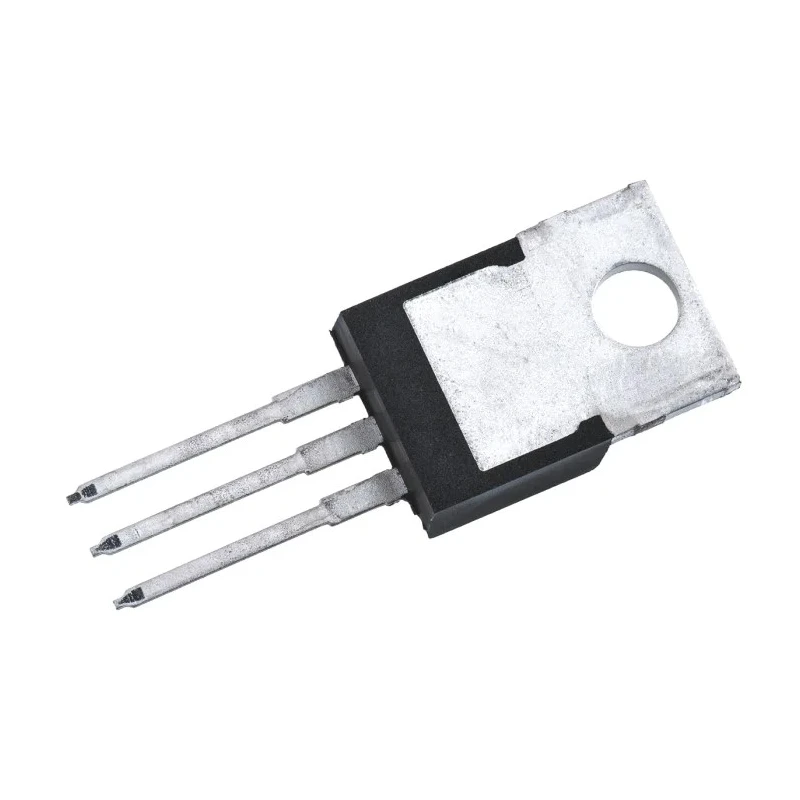

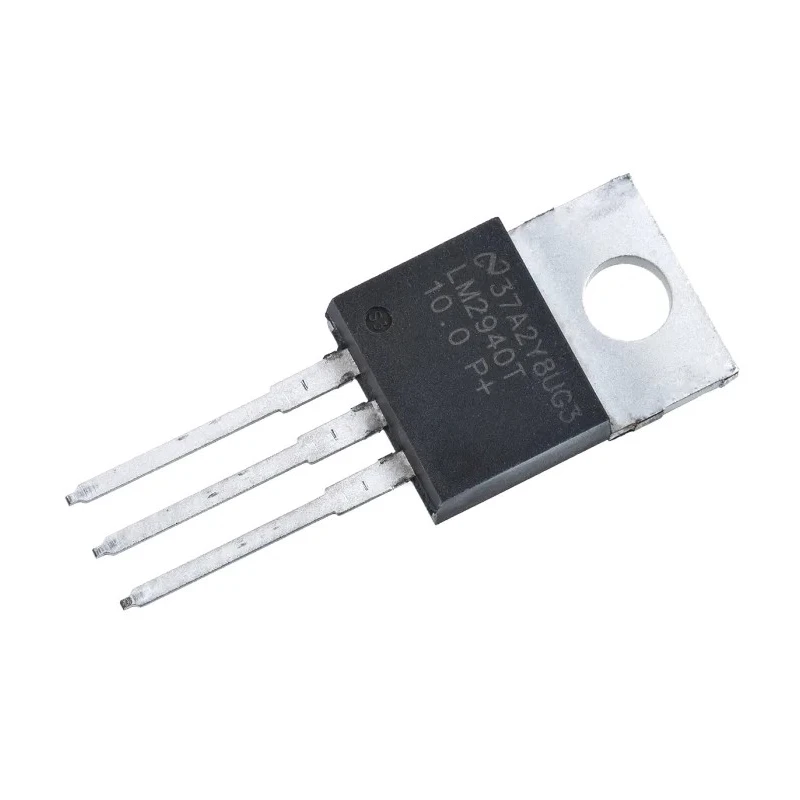

Texas Instruments Voltage Regulator TO-220 3-Pin 26V Input 10V Output LM2940T-10.0/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 8.89mm |
| Length | 10.16mm |
| Model | LM2940T-10.0/NOPB |
| Width | 4.7mm |
| Mount Type | Through Hole |
| Series | LM2940-N |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Polarity | Positive |
| Maximum Input Voltage | 26V |
| Output Voltage | 10V |
| Quiescent Current | 10mA |
| Minimum Input Voltage | 11.5V |
| Pin Count | 3 |
Key Features
- Low Dropout (LDO) linear regulator suitable for precise voltage regulation applications.
- Operates with a maximum input voltage of 26V and a minimum input voltage of 11.5V.
- Through Hole mounting with TO-220 package type for easy PCB integration.
- Maintains positive polarity with a quiescent current of 10mA for efficient power usage.
- Rated for maximum operating temperature of 125°C providing reliability in harsh environments.
- Designed as part of the LM2940-N series for various electronic power management applications.
Product Description
Texas Instruments LM2940T-10.0/NOPB is a high-performance Voltage Regulator designed to provide a stable 10V output voltage from input voltages up to 26V. Housed in a TO-220 3-pin package, it features through-hole mounting and a positive polarity configuration suitable for robust electronic circuits.
This Low Dropout (LDO) regulator is optimized for applications requiring a small differential voltage between input and output, improving efficiency compared to traditional linear regulators. It offers a quiescent current of only 10mA, ensuring low power consumption in idle states.
Key physical dimensions include a length of 10.16mm, width of 4.7mm, and height of 8.89mm, making it compact enough for various PCB designs. The regulator supports a wide operating temperature range up to 125°C, enabling reliable performance even under demanding industrial environments.
Belonging to the LM2940-N series, this voltage regulator is ideal for applications in power management ICs across automotive, industrial, and consumer electronics where precision voltage control is essential.
Low Dropout linear regulator providing efficient voltage stabilization. Maximum input voltage rating of 26V supports diverse power levels. Positive polarity and 3-pin package design for straightforward integration. Robust TO-220 package and through-hole mount ensure durable circuit assembly.
Compact size suitable for space-constrained electronic designs. High maximum operating temperature rating for industrial-grade performance. Fits a wide range of applications from electronic circuits to power supplies.
This Texas Instruments LM2940T-10.0/NOPB Voltage Regulator is an essential component for electronic engineers and designers aiming to achieve reliable, stable voltage outputs in their circuitry. Its combination of compact design and robust electrical characteristics makes it well-suited for laboratory, industrial, and commercial electronics applications.
Explore more electronic components and power management IC solutions to complement this Voltage Regulator at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this model is 26V.
It provides a stable output voltage of 10V.
The quiescent current is 10mA, ensuring efficient power usage in idle states.
The minimum input voltage required is 11.5V.
It is housed in a TO-220 3-pin package for through-hole mounting.
The dimensions are 8.89mm in height, 10.16mm in length, and 4.7mm in width.
The maximum operating temperature is rated at 125°C.
This voltage regulator is suitable for various power management applications in automotive, industrial, and consumer electronics.
It is optimized for applications requiring a small differential voltage between input and output, enhancing efficiency.
It belongs to the LM2940-N series of voltage regulators.
It maintains a positive polarity configuration.
Yes, its TO-220 package type and through-hole mounting make it suitable for easy PCB integration.
