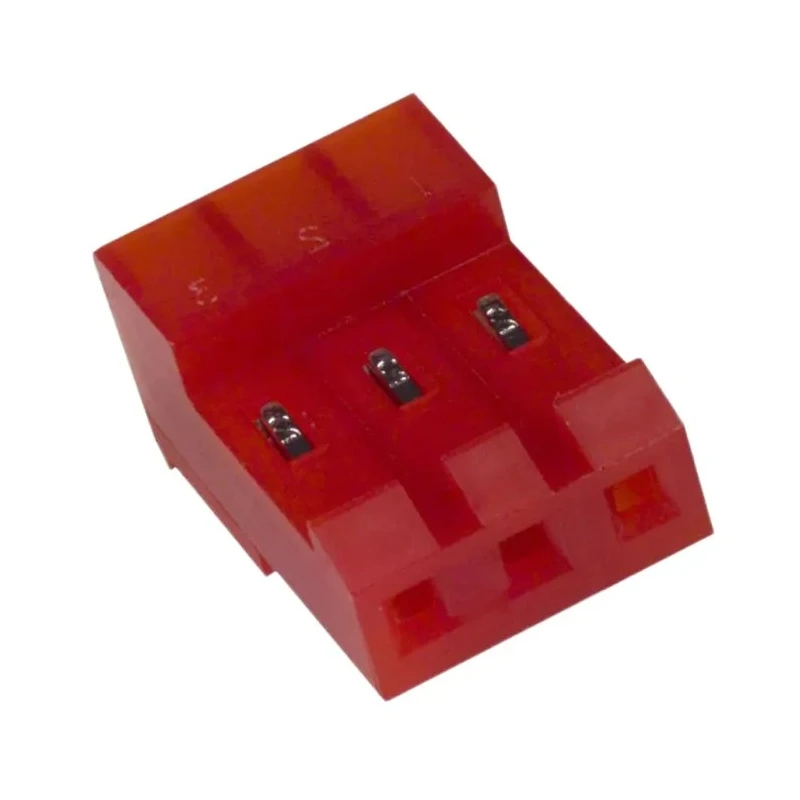

TE Connectivity 3-Way IDC Connector Female Cable Mount 3 Contacts 1 Row 3-640428-3

TE Connectivity 3-640428-3 3-Way IDC Connector is a female cable mount connector with 3 contacts arranged in a single row, designed to meet high industrial standards for connectivity and reliability.

This connector supports a voltage rating of 600V AC and a current rating of 7A, ideal for electronic and electrical applications requiring dependable power transmission and signal integrity.

The connector features a 3.96 mm pitch spacing between contacts and a shrouded design to prevent misalignment and damage during mating. It uses IDC technology which allows quick insulation displacement termination without the need for wire stripping, improving assembly efficiency in manufacturing processes.

Contacts are crafted from copper with tin over nickel plating providing robust corrosion resistance and longevity under electrical load. The housing is constructed from white nylon 6/6 with UL94V-2 flame retardant classification, supporting operating temperatures ranging from -55°C to 105°C, making it suitable for harsh industrial, commercial, and laboratory environments.

This product is part of the MTA-156 series by TE Connectivity, offering stackable closed end connectors that accept stranded discrete wire sizes ranging from 18 to 26 AWG, covering wide application needs in wire-to-wire and wire-to-board interfacing.

The right angle orientation supports flexible cable management in constrained spaces, enhancing wiring harness and PCB layout designs. Operates at 600V AC voltage rating ensuring safety in power applications. Rated for continuous current up to 7 amperes for various signal and power connections.

Features a 3.96 mm pitch with a single row configuration for compact board layouts. Constructed with copper contacts plated with tin over nickel for corrosion resistance. Shrouded design enhances protection and prevents mismating during installation.

Housing made from durable nylon material with UL94V-2 flame retardant rating. Temperature range from -55°C up to 105°C suitable for diverse environments. IDC (Insulation Displacement Contact) termination simplifies assembly by eliminating wire stripping.

Right angle orientation enables versatile cable routing in design.

This connector is manufactured in the United States and is widely used in electronic components, power connectors, and PCB wire housing assemblies across industrial, laboratory, construction, manufacturing, and commercial applications.
