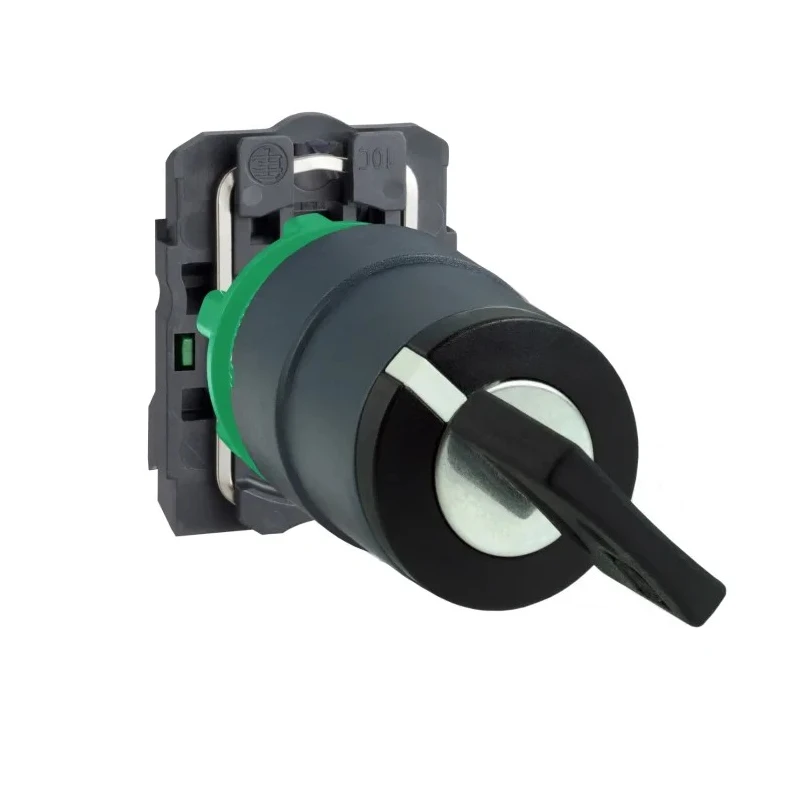

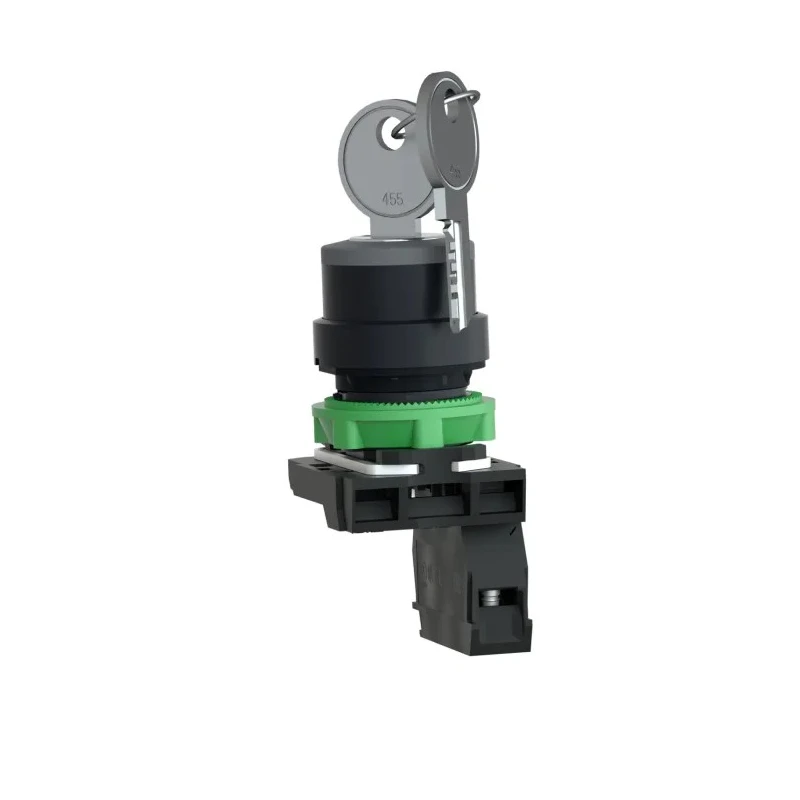

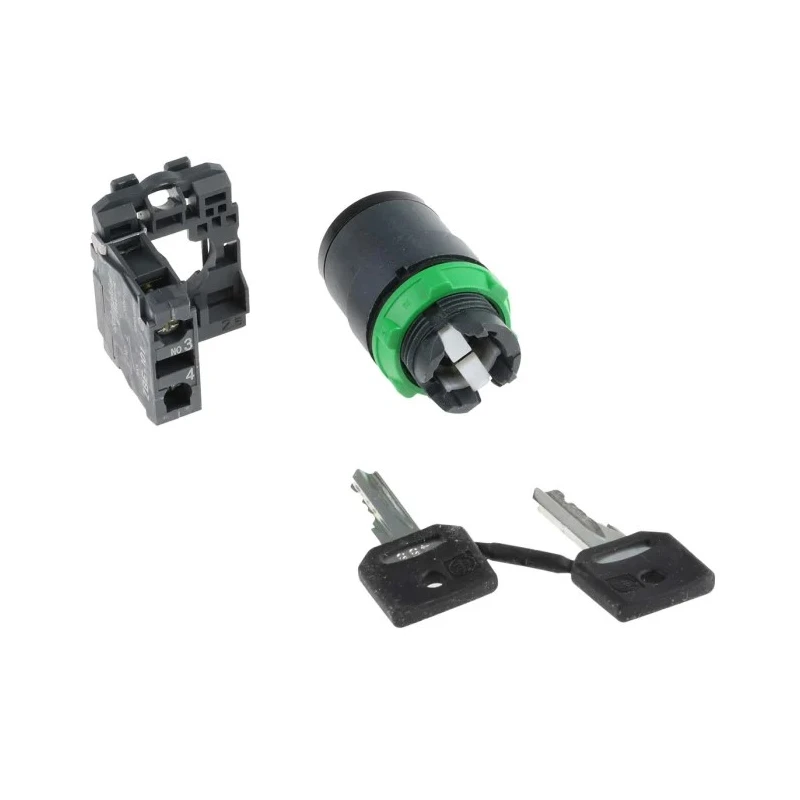

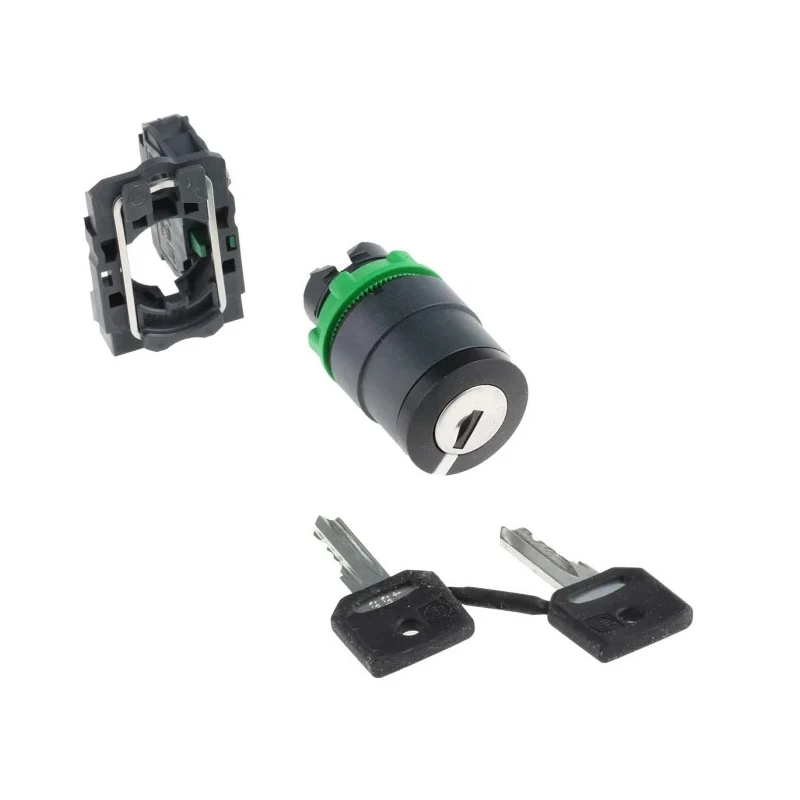

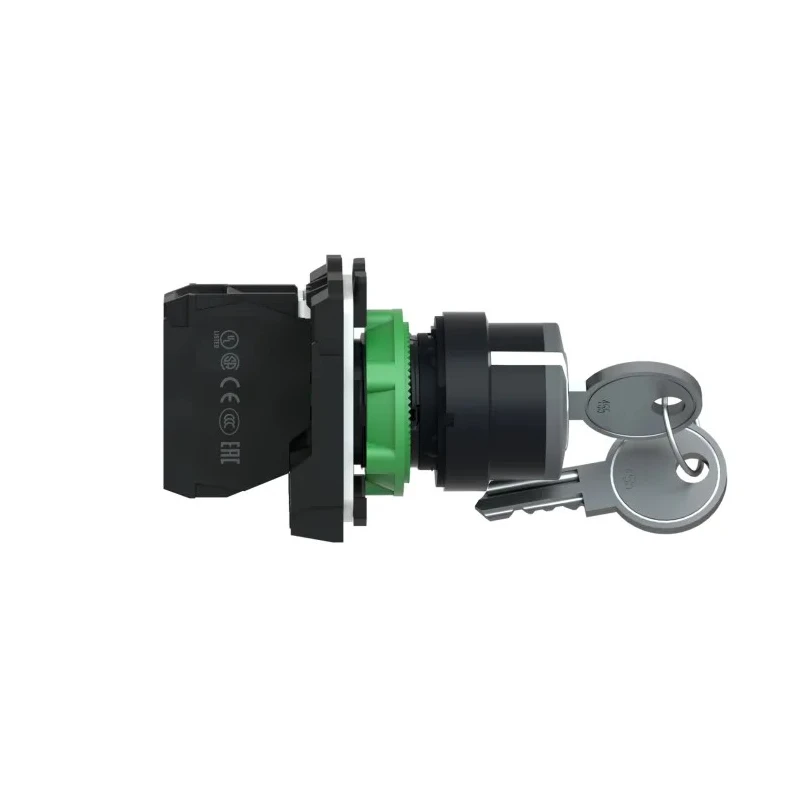

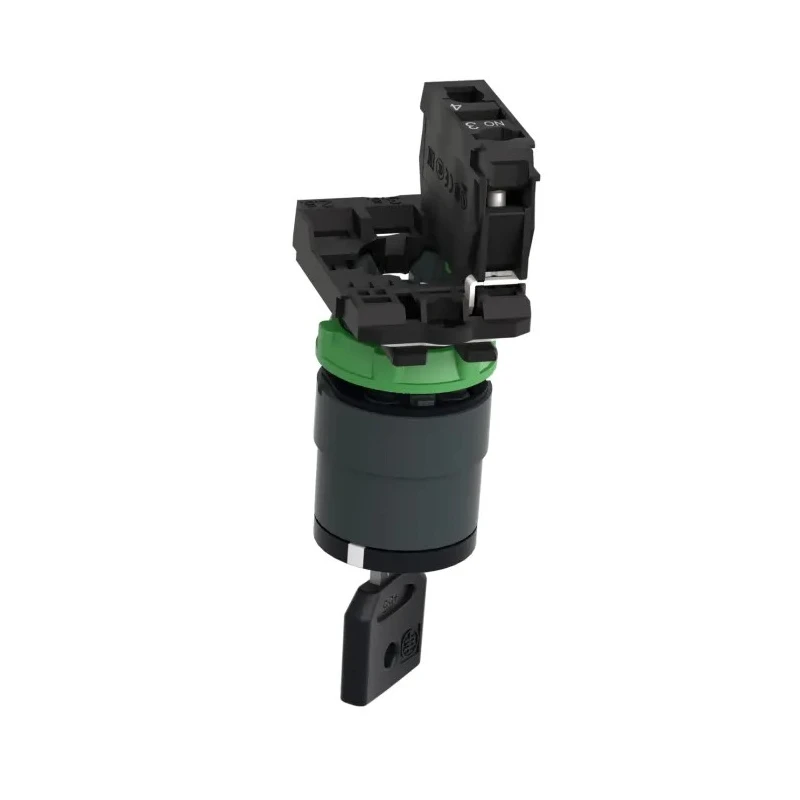

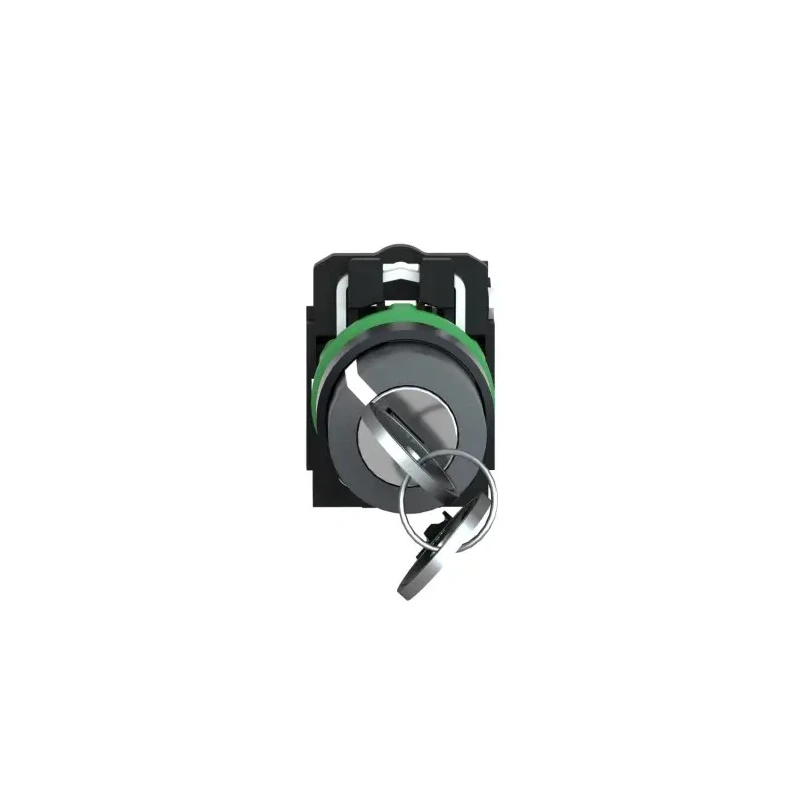

Schneider Electric Key Stay Put Rotary Switch Selector Switch 2 Positions 1 NO XB5AG41

Schneider Electric XB5AG41 Key Stay Put Rotary Switch Selector Switch is a durable industrial control component designed for secure operation and access control in machinery and control panels. Featuring a keyed actuator that allows the key to be removed in any selected position, it ensures secure locking of function selection and restricted access.

The rotary switch offers two stable positions with a 90° angle of throw, utilizing a slow-break contact mechanism to reduce electrical arcing during operation. It supports a contact configuration of 1 NO (normally open), suitable for simple single-circuit switching tasks.

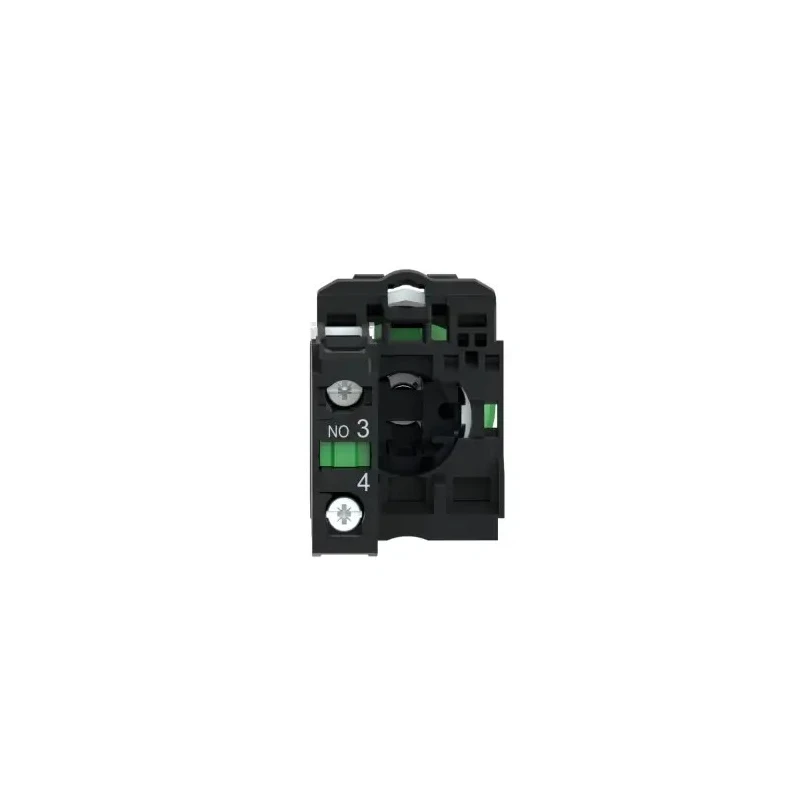

Built for challenging environments, this selector switch is rated IP66, IP67, IP69, and IP69K, making it resistant to dust, water ingress, and high-pressure washdown including elevated temperature cleaning procedures. Terminations are screw clamp type, accepting up to 2x1.5mm² ferruled conductors securely tightened to ensure reliable electrical connections.

Compliant with international standards such as EN/IEC 60947-5-5, EN/IEC 60947-1, CSA C22.2 No. 14, UL 508, and JIS C 4520, the product confirms quality and safety requisites for industrial electrical components. It is part of the Harmony XB5 series, widely recognized for industrial control devices.

Typical applications include machine control panels that require mode selectivity with restricted user access, automation system selector controls exposed to washdown regimes, and isolating electrical distribution subsystems. Its mechanical and electrical endurance rating of up to one million cycles ensures long-term dependability in demanding industrial workflows.

The rotary switch includes a keyed stay-put actuator for secure function restriction. Two positions with 90° throw enable precise mode selection. Slow-break contact reduces arcing and extends switch life. Ingress protection IP66 to IP69K ensures suitability for harsh washdowns.

Screw clamp terminals provide reliable and robust wire connections. Meets major international standards for safety and performance. Designed for industrial automation, packaging, processing, and electrical distribution. Rated for 1,000,000 mechanical and electrical cycles ensuring durability.

This Schneider Electric selector switch is an ideal choice to enhance operational security and reliability in industrial environments requiring controlled access and durable switching components. Explore more Schneider Electric products and Selector Switches at EnvMart for your industrial automation needs.
