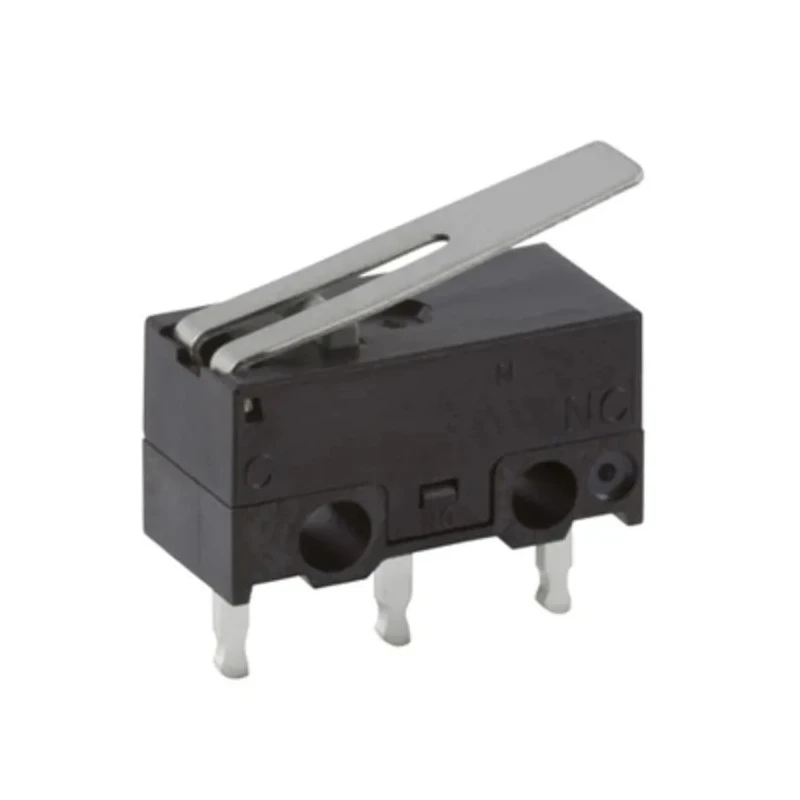

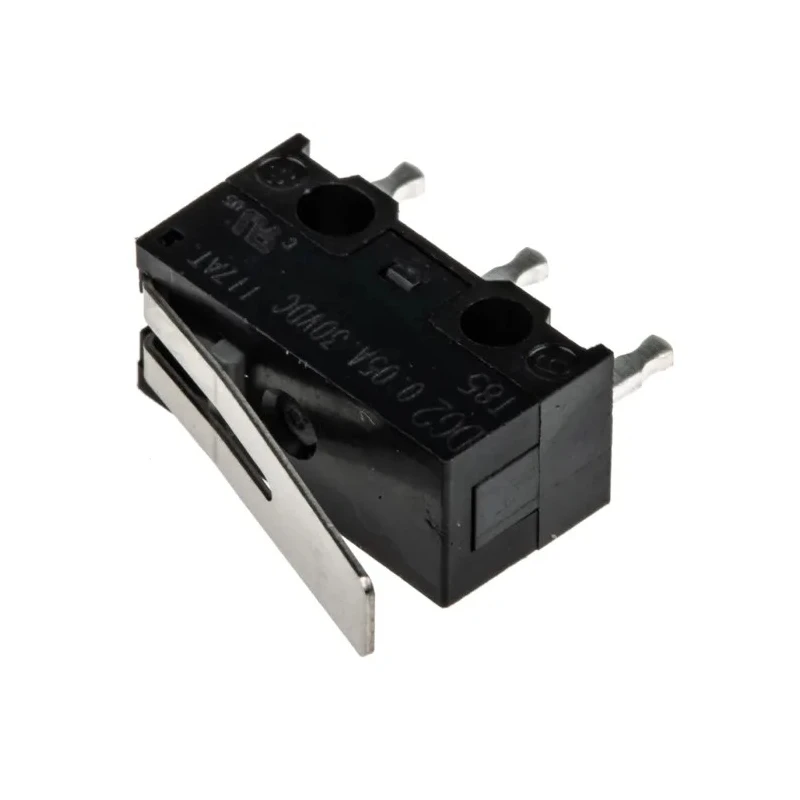

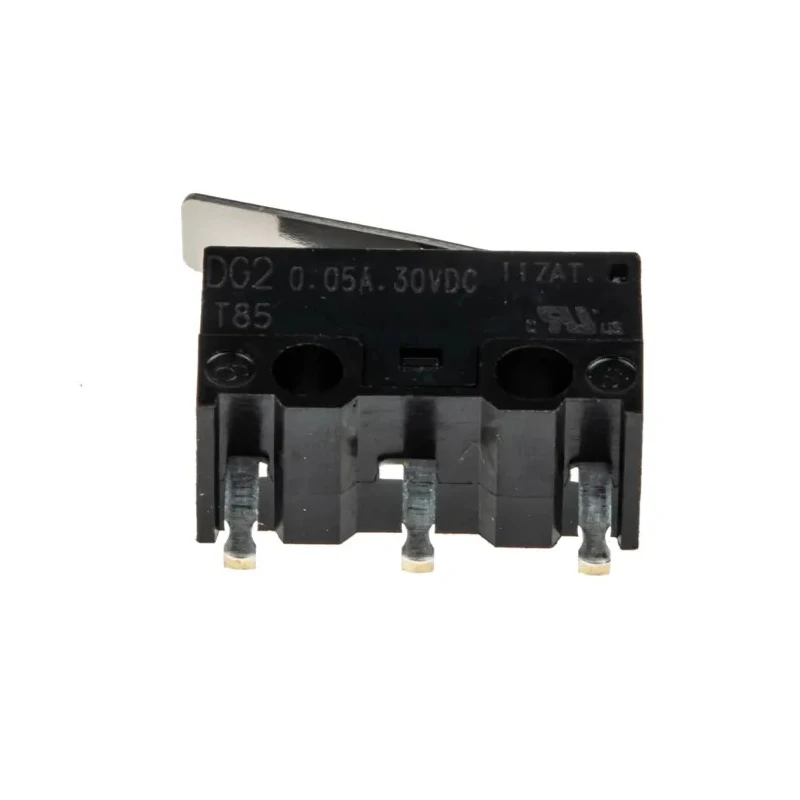

ZF Hinge Lever Micro Switch PCB Terminal 50mA 125V AC 30V DC SPDT IP40 DG23-B1LA
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | ZF |
| Length | 12.8mm |
| Model | DG23-B1LA |
| IP Rating | IP40 |
| Housing Material | Polybutylene Terephthalate, Polyethylene Terephthalate |
| Series | DG Sub-Miniature |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Actuator Type | Hinge Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 50mA |
| Operating Force | 0.44N |
| Mechanical Life | 1000000Operations |
| Contact AC Voltage | 125V ac |
| Microswitch Type | DG Subminiature |
Key Features
- The switch body is made from durable polybutylene terephthalate and polyethylene terephthalate materials.
- Offers an operating force of 0.44 Newtons for precise actuation.
- Designed for operation within temperature ranges from -25°C to 85°C.
- Provides IP40 protection rating safeguarding against solid objects larger than 1mm.
- Mechanical life expectancy exceeds 1,000,000 operations ensuring longevity.

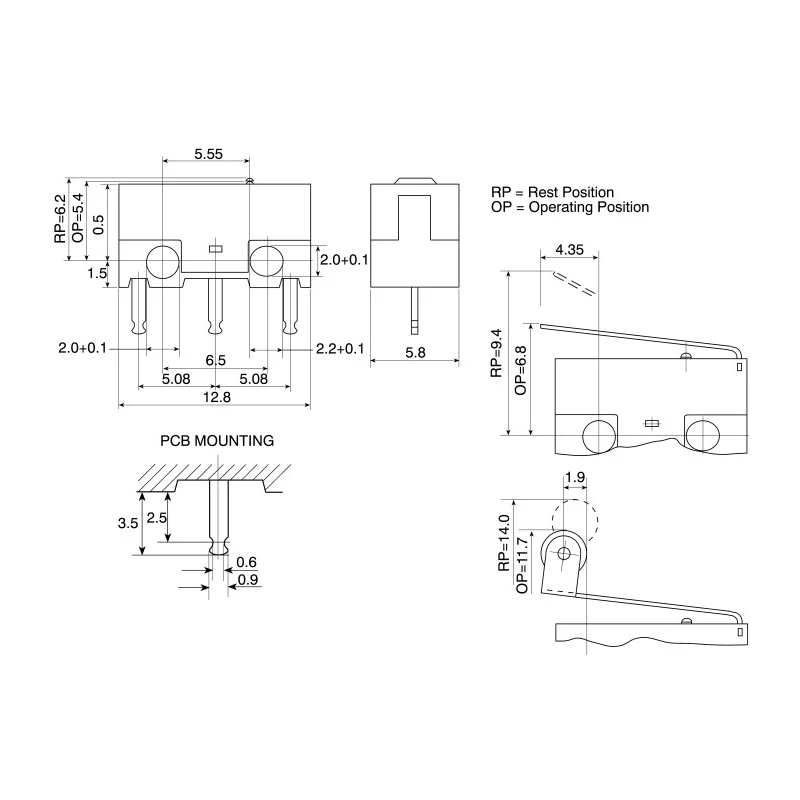

- Compact subminiature size with an overall length of 12.8 mm suitable for tight installations.
- Compliant with RoHS standards and manufactured in Japan, ensuring quality and environmental compliance.
Product Description
The ZF DG23-B1LA is a high-precision hinge lever micro switch engineered for applications requiring reliable switching with small currents. It features a PCB terminal type actuator and supports a contact current rating of 50mA, making it suitable for sensitive electrical circuit control.
The micro switch can withstand AC voltages up to 125 V and DC voltages up to 30 V. Its SPDT (Single Pole Double Throw) contact configuration provides versatile switching capabilities with a high level of repeat accuracy.
Constructed with housing materials of polybutylene terephthalate and polyethylene terephthalate, the device offers durability and resistance to wear. The operating force requirement is low at 0.44N, allowing for smooth actuation and reduced user fatigue.
Operating temperature range from -25°C to 85°C ensures functionality across various industrial and commercial environments. The compact 12.8 mm length and subminiature DG series design facilitate integration into space-constrained devices.
This micro switch maintains an impressive mechanical life of over 1 million operations, reflecting superior reliability and durability. Additionally, the product holds RoHS certification, confirming its compliance with environmental safety standards. The product is manufactured in Japan, assuring quality craftsmanship and consistent performance.
Durable housing materials ensure extended service life. Low operating force enables smooth lever action. Wide temperature range supports diverse environmental conditions. Compact size suitable for PCB mounting in tight spaces.
Long mechanical life increases uptime and reduces maintenance. RoHS compliant for environmental safety and market conformity. Manufactured in Japan, assuring quality and reliability.
This ZF DG23-B1LA micro switch is ideal for use in electronics manufacturing, industrial automation, control panels, household appliances, and other commercial electrical switch applications. It provides dependable switching performance for circuits with low current and voltage requirements.
Explore more Micro Switches and related components from EnvMart for your electronic and electrical equipment needs with confidence in quality and durability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch has a contact current rating of 50mA, making it suitable for low current applications.
It can withstand AC voltages up to 125V and DC voltages up to 30V.
The operating temperature range is from -25°C to 85°C, allowing it to function in various environments.
This model features a hinge lever actuator type, which allows for precise actuation with a low operating force.
The mechanical life expectancy exceeds 1,000,000 operations, indicating its reliability over time.
It has an IP40 protection rating, safeguarding against solid objects larger than 1mm.
The housing is made from polybutylene terephthalate and polyethylene terephthalate, providing durability and resistance to wear.
The overall length of this micro switch is 12.8 mm, making it compact for tight installations.
Yes, it is RoHS certified, confirming compliance with environmental safety standards.
It features a PCB terminal type, designed for easy integration into printed circuit boards.
The operating force required for actuation is 0.44 Newtons, allowing for smooth lever action.
This micro switch is manufactured in Japan, ensuring quality craftsmanship and consistent performance.
