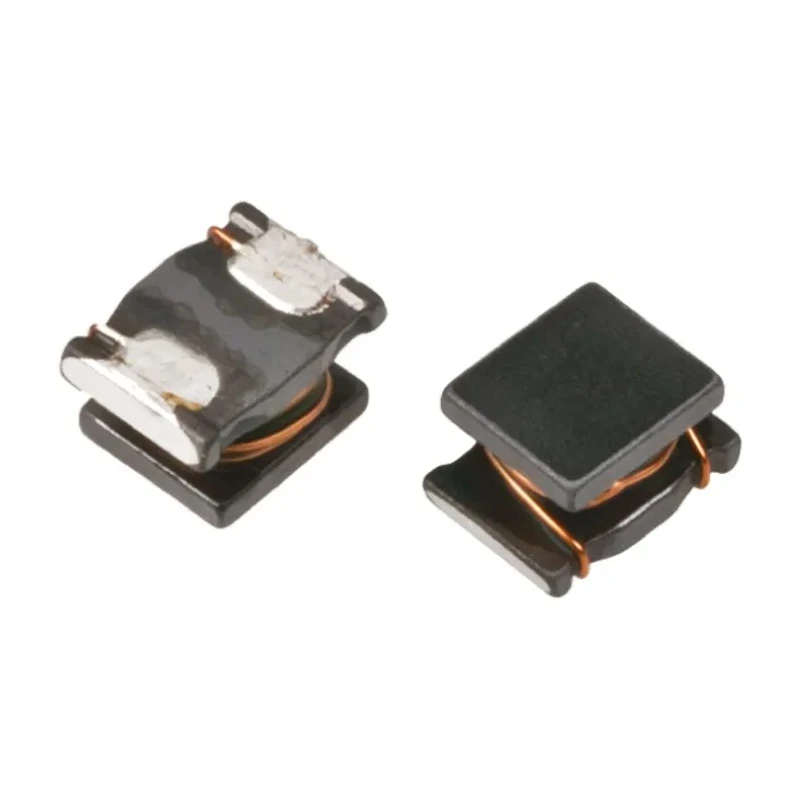

Murata Wirewound Surface Mount Inductor 330 μH ±10% 95 mA DC Current 1812 Package LQH43MN331K03L
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 2.6mm |
| Length | 4.5mm |
| Model | LQH43MN331K03L |
| Depth | 3.2mm |
| Packaging | Embossed Tape |
| Series | LQH |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 330μH |
| Standards/Approvals | RoHS |
| Package/Case | 1812 |
| Maximum DC Current | 95mA |
| Pin Count | 2 |
| Maximum DC Resistance | 8.2Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 3.6MHz |
| Minimum Quality Factor | 40 |
| Inductor Construction | Wirewound |
| Murata Multilayer Surface Mount InductorBrand | Murata |
Key Features
- Designed for surface mount applications with an 1812 package size.
- Features a ferrite core construction for high frequency performance.
- Maximum DC current rating of 95 mA suitable for low power circuits.
- Maximum DC resistance is 8.2 Ω ensuring low power loss.
- Operating temperature range from -40°C to 85°C for reliable performance.
- Self-resonant frequency up to 3.6 MHz for wide frequency range use.
- High quality factor of minimum 40 at rated inductance for signal integrity.
- Industry standard solder termination style for ease of assembly.
Product Description
The Murata LQH43MN331K03L is a high-quality wirewound surface mount inductor designed for compact electronic applications requiring reliable inductance performance. This 1812 size package features a ferrite core that enhances high-frequency characteristics while maintaining low DC resistance of 8.2 Ω. With an inductance of 330 μH and a tolerance of ±10%, it meets precise circuit requirements.
Rated for a maximum DC current of 95 mA, this inductor suits low-power signal filtering and energy storage applications. The device operates reliably over a temperature range from -40°C to 85°C, making it suitable for a variety of industrial and commercial electronic environments.
The LQH series includes molded inductors with a solder termination style compatible with automated PCB assembly lines. The embossed tape packaging facilitates efficient surface mount technology processes. The inductor’s maximum self-resonant frequency of 3.6 MHz and a minimum quality factor of 40 ensure optimal performance in signal integrity applications.
Constructed in Japan by Murata, this component complies with RoHS standards, assuring environmentally safe manufacturing and usage. Its durable wirewound construction with a ferrite core provides excellent stability for use in power electronics, telecommunications, and automotive electronic systems.
Surface mount inductor with 330 μH inductance and ±10% tolerance. Ferrite core wirewound construction for effective high-frequency response. Maximum DC current rating of 95 mA with 8.2 Ω DC resistance. Operating temperature range from -40°C to 85°C for versatile applications.
Molded SMD device with solder termination style for PCB mounting. Embossed tape packaging suited for automated assembly. RoHS compliant ensuring environmental safety. Maximum self-resonant frequency of 3.6 MHz and minimum Q factor of 40.
Manufactured in Japan ensuring superior quality standards.
This inductor is ideal for use in industrial equipment, consumer electronics, telecommunications, and automotive electronic circuits. Browse our extensive range of Surface Mount Inductors and other electronic components at EnvMart to find the right fit for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 330 μH with a tolerance of ±10%.
It has a maximum DC current rating of 95 mA, suitable for low power circuits.
The maximum DC resistance is 8.2 Ω, ensuring low power loss during operation.
The operating temperature range is from -40°C to 85°C, allowing for versatile applications in various environments.
The maximum self-resonant frequency is up to 3.6 MHz, enabling its use in a wide frequency range.
It has a minimum quality factor of 40 at the rated inductance, which helps maintain signal integrity.
This inductor features a ferrite core construction, which enhances its high-frequency performance.
The package size is 1812, which is suitable for compact electronic applications.
It is packaged in embossed tape, which facilitates efficient surface mount technology processes.
The termination style is solder, which is compatible with automated PCB assembly lines.
Yes, it complies with RoHS standards, ensuring environmentally safe manufacturing and usage.
The dimensions are 4.5 mm in length, 3.2 mm in depth, and 2.6 mm in height.
