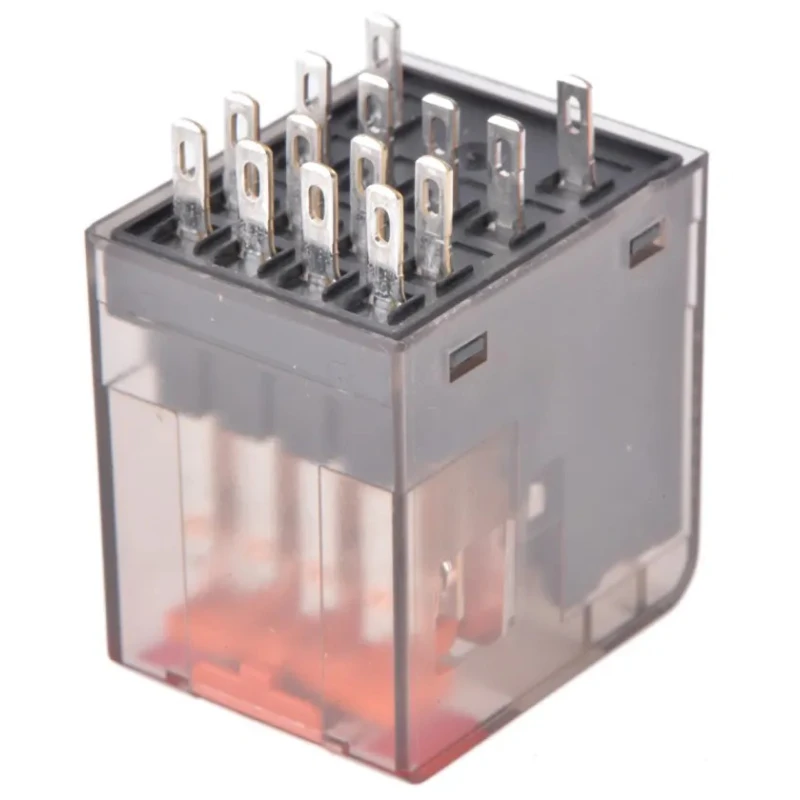

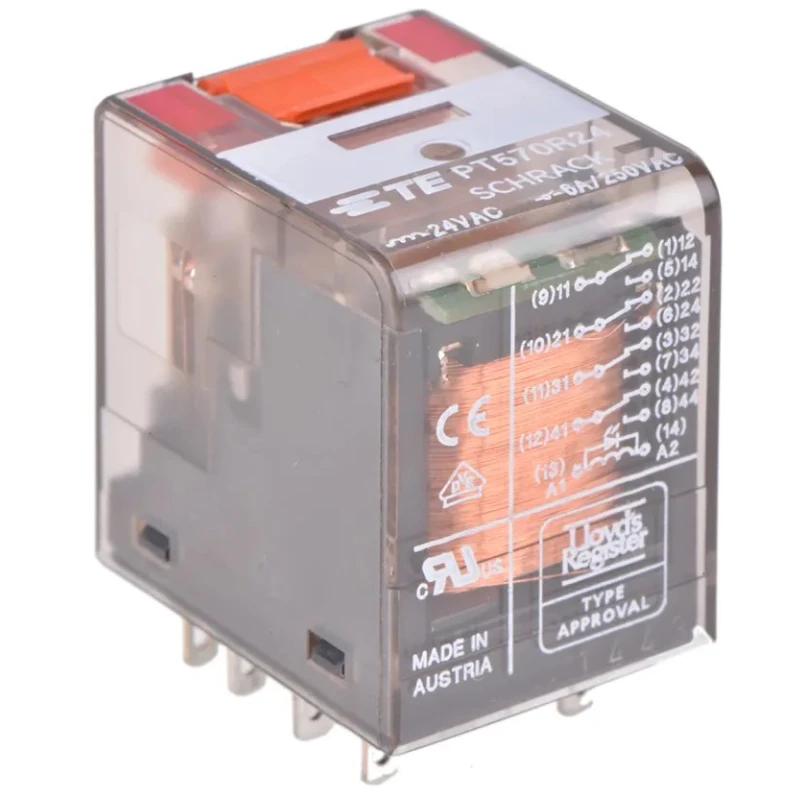

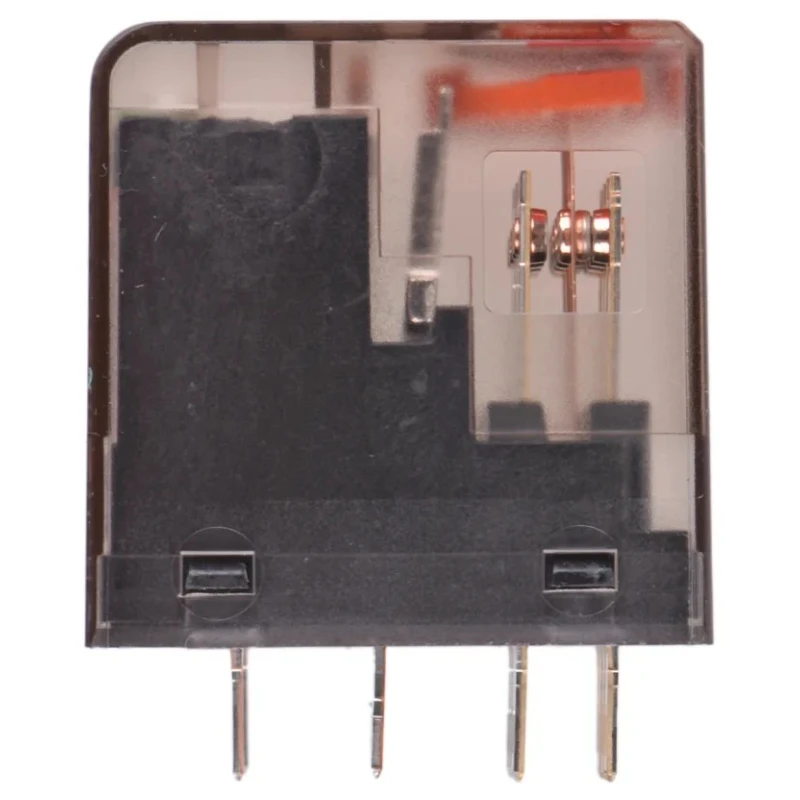

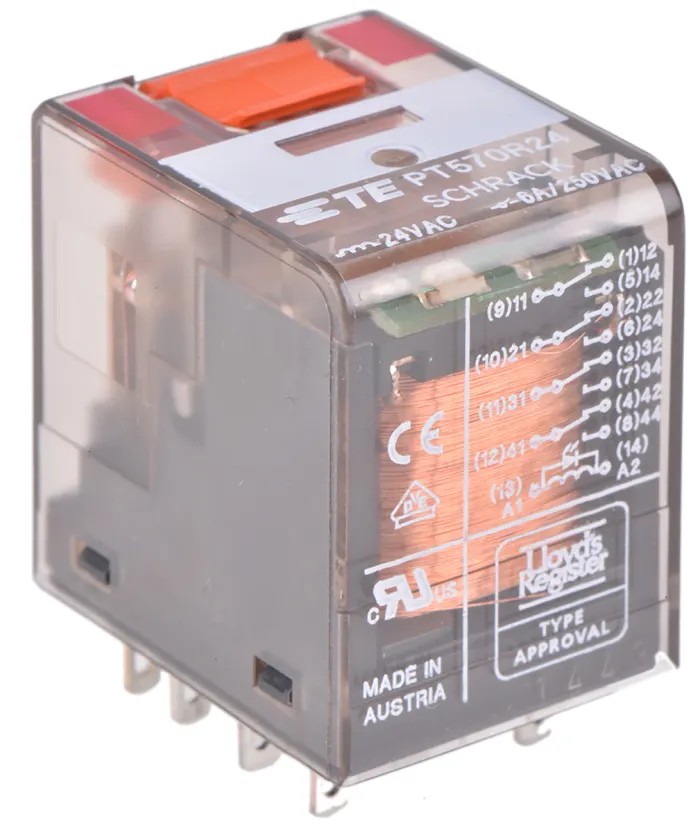

TE Connectivity DIN Rail Power Relay 24V ac Coil 6A Switching Current 4PDT PT570R24 7-1415001-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 35mm |
| Length | 28mm |
| Model | PT570R24 7-1415001-1 |
| Width | 14mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Nickel Alloy |
| Series | PT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Quick Connect |
| Standards/Approvals | RoHS |
| Coil Resistance | 192Ω |
| Coil Voltage | 24V ac |
Key Features
- The relay features a 4PDT contact configuration suitable for complex switching circuits.
- It supports coil resistance of 192 ohms for efficient operation.
- Designed for DIN Rail mounting with quick connect terminals for fast installation.
- Operates reliably between -40°C and 70°C, suitable for harsh environments.
- Contact material is silver nickel alloy ensuring durability and low contact resistance.
- Includes LED and mechanical indicator with manual lockable test facility.
- Isolation between coil and contact is rated at 2.5kV for safety compliance.
- Compact dimensions of 28mm length, 14mm width, and 35mm height facilitate space-saving installations.
Product Description
TE Connectivity PT570R24 7-1415001-1 DIN Rail Power Relay features a 24V AC coil rated for 6A switching current, designed for precise and reliable switching operations in diverse industrial and automation applications.
This relay incorporates a 4PDT (four-pole double-throw) contact configuration enabling multiple circuit switching functions with a compact form factor ideal for DIN Rail installations.
The device's coil resistance of 192 ohms provides efficient electromagnetic operation, and its robust silver nickel alloy contacts assure durability and excellent conductivity.
With operational temperature range from -40°C to 70°C, the relay withstands extreme environmental conditions often encountered in manufacturing, electrical panels, and HVAC systems.
Additional features include LED mechanical indicators for operational status visualization and a manual lockable test facility to facilitate maintenance and diagnostics. Its isolation rating of 2.5kV between coil and contacts ensures enhanced safety and reliability in power control circuits.
The relay is designed with compact external dimensions of 28mm length, 14mm width, and 35mm height, allowing installation in space-constrained applications. Mechanical endurance is rated at 20 million operations under AC and 30 million under DC, supporting long service life in industrial environments.
The product complies with RoHS directives eliminating hazardous substances, making it suitable for environmentally responsible projects. The relay supports complex multi-pole switching with 4PDT contact arrangement. It offers LED and mechanical indication for clear operational feedback.
Designed for quick connect terminals and DIN Rail mounting to accelerate assembly. Coil isolation provides 2.5kV voltage withstand capacity enhancing circuit safety. Silver nickel alloy contacts ensure long-lasting, low-resistance switching.
Wide operating temperature range suits harsh industrial environments. High mechanical lifecycle assures durability and reduces maintenance frequency. RoHS compliance guarantees environmental standard adherence. Compact size facilitates integration in dense control panels.
Manual lockable test facility aids troubleshooting and maintenance workflows. Ideal for diverse industrial, electrical automation, manufacturing, and HVAC use, this power relay facilitates reliable switching control within stringent specs.
Explore EnvMart's comprehensive range of Power Relays and electrical automation components for optimized industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current rating of 6A, making it suitable for various industrial applications.
This model operates with a coil voltage of 24V AC, which is essential for its electromagnetic function.
It features a 4PDT (four-pole double-throw) contact configuration, enabling multiple circuit switching functions.
The relay has compact external dimensions of 28mm in length, 14mm in width, and 35mm in height, facilitating space-saving installations.
It operates reliably within a temperature range of -40°C to 70°C, suitable for harsh industrial environments.
This unit is designed with quick connect terminals, allowing for fast and efficient installation.
The contacts are made from silver nickel alloy, ensuring low contact resistance and durability.
Yes, it includes LED and mechanical indicators that provide clear feedback on operational status.
The isolation between the coil and contact is rated at 2.5kV, enhancing safety in power control circuits.
It has a mechanical endurance rating of 20 million operations under AC and 30 million under DC, supporting long service life.
Yes, it complies with RoHS directives, eliminating hazardous substances and making it suitable for environmentally responsible projects.
This model is designed for DIN Rail mounting, which is common in industrial and electrical panel applications.
