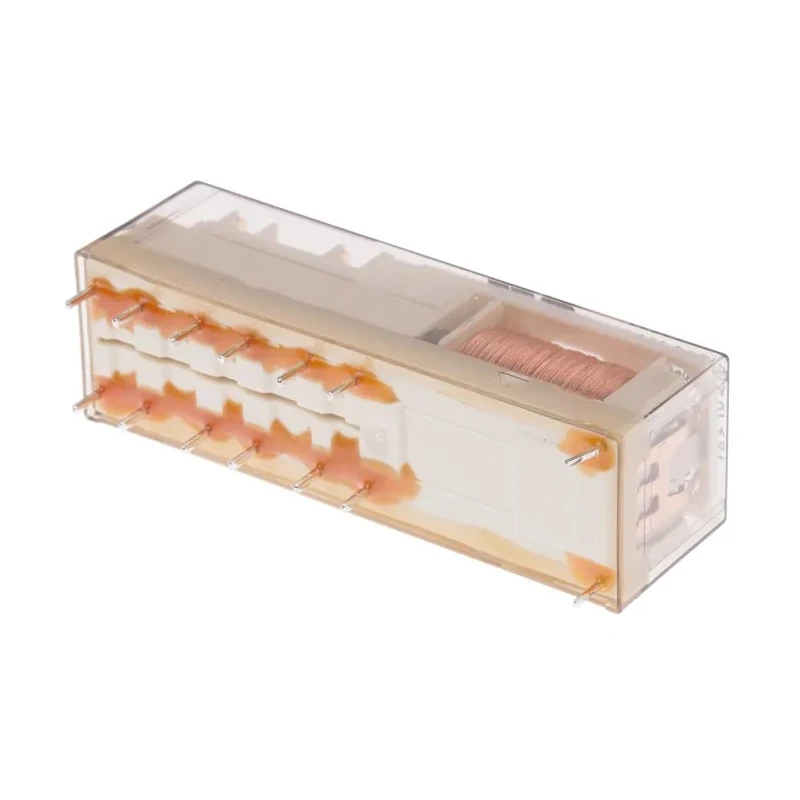

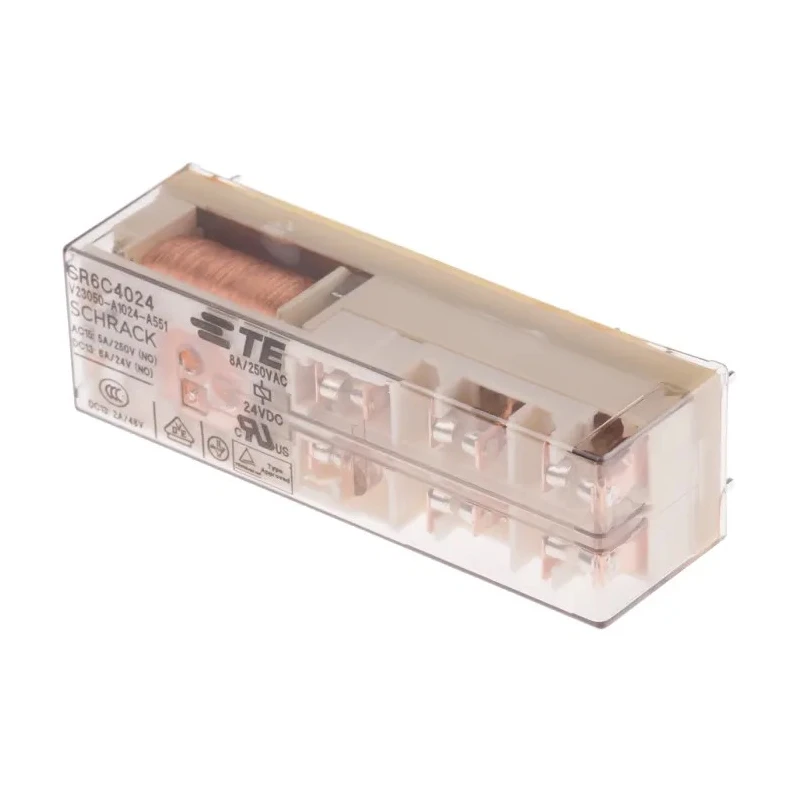

TE Connectivity PCB Force Guided Relay 24V DC Coil Voltage 5-Pole 5PNO V23050-A1024-A551 1415017-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 16.5mm |
| Length | 55mm |
| Model | V23050-A1024-A551 1415017-1 |
| Depth | 16.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | SR6 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 5PNO |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Number of Poles | 5 |
| Coil Resistance | 480Ω |
| Coil Power | 1.2W |
| Isolation Coil To Contact | 4kV |
Key Features
- Features a 24V DC coil ensuring stable operation under specified voltage.
- Designed with 5 poles and 5 positive normally open (5PNO) contact configuration.
- Coil resistance of 480 ohms with a coil power rating of 1.2 watts for efficient energy usage.
- Supports solder-type terminals suitable for PCB mounting applications.
- Built with silver alloy contacts for durability and reliable conductivity.
- Operating temperature range from -25°C to 70°C allowing versatile application environments.
- Compact dimensions with 55mm length, 16.5mm height, and 16.5mm depth for space-saving integration.
- Isolation between coil and contacts rated at 4kV ensuring electrical safety.
Product Description
TE Connectivity V23050-A1024-A551 1415017-1 is a PCB mount force guided relay with a 24V DC coil voltage and 5-pole, 5PNO contact arrangement. Engineered for use in industrial automation, electrical control, and safety relay systems, this relay ensures dependable switching with enhanced safety features.
The relay is designed to operate within a wide ambient temperature range from -25°C to 70°C, suitable for diverse industrial and laboratory environments. Its silver alloy contacts provide excellent conductivity and resistance to wear, ensuring long operational life. The 480 ohms coil resistance and 1.2W coil power rating allow efficient energy consumption and stable coil activation.
Mounting on PCBs is facilitated by solder terminals, providing secure and reliable electrical connections. The compact physical dimensions - 55mm length, 16.5mm height, and 16.5mm depth - allow space-efficient circuit designs.
This relay offers an isolation voltage of 4kV between the coil and contacts, providing enhanced electrical safety and circuit protection. It belongs to the SR6 series safety relays which comply with EN50205 force guided contact standards, making it ideal for safety-critical systems in manufacturing, automation, and control panel assemblies.
Ensures force guided contacts for safe relay operation. Compact size fits most PCB applications. Durable silver alloy contacts for reliable switching. Wide operating temperature range for industrial use cases. High isolation voltage improves circuit safety.
Low coil power consumption of 1.2W enhances efficiency. Suitable for electrical automation, safety relay, and control panel applications. Conforms to EN50205 for force guided relays. Part of trusted SR6 series from TE Connectivity.
This TE Connectivity PCB Force Guided Relay is well-suited for Electrical, Automation, Laboratory, Manufacturing, and Industrial control applications. It offers a reliable solution for safety oriented relay switching needs in harsh environments adhering to electrical safety standards. Browse our Electronics & Electricals, Relays & Contactors, Force Guided Relay category for more quality TE Connectivity products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates at a coil voltage of 24V DC.
It features a 5-pole, 5 positive normally open (5PNO) contact configuration.
The coil resistance is 480 ohms.
The coil power rating is 1.2 watts.
The contacts are made from silver alloy, which provides reliable conductivity.
It operates within a temperature range of -25°C to 70°C.
This relay is designed for PCB mounting and features solder-type terminals.
The relay has dimensions of 55mm in length, 16.5mm in height, and 16.5mm in depth.
The isolation between the coil and contacts is rated at 4kV.
It belongs to the SR6 series of safety relays.
This model is suitable for electrical automation, safety relay systems, and control panel applications.
The country of origin for this relay is India.
