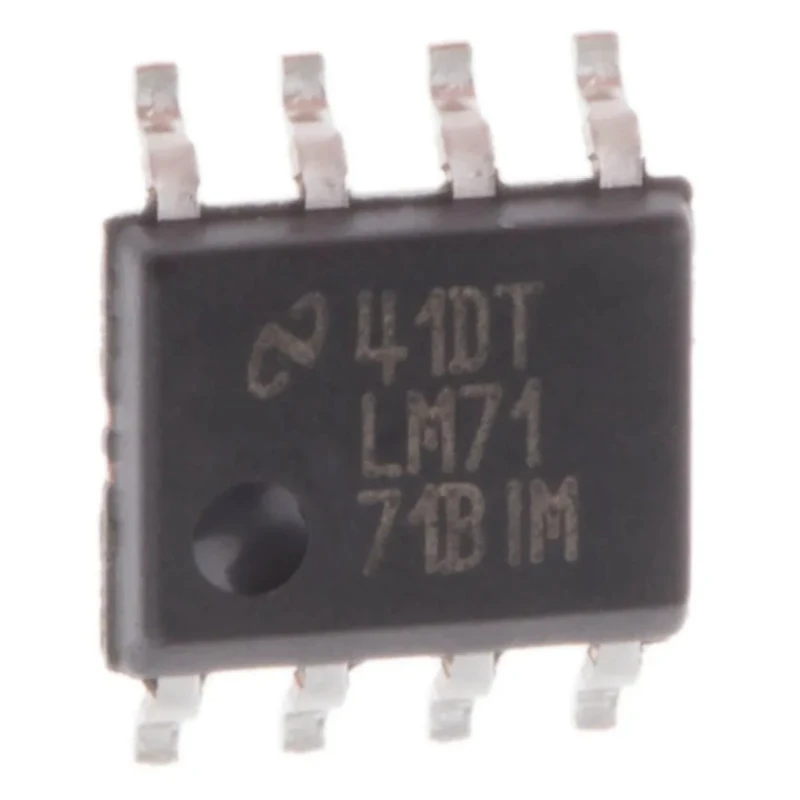

Texas Instruments Operational Amplifier 200 MHz 8-Pin 36V SOIC LM7171BIM/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.45mm |
| Length | 4.9mm |
| Model | LM7171BIM/NOPB |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | LM7171 |
| Output Current | 105mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 5.5V |
| GBP - Gain Bandwidth Product | 200MHz |
| Input Bias Current | 12 μA |
| Vos - Input Offset Voltage | 7 mV |
| Slew Rate | 4100V/μs |
| Input Offset Current | 6 μA |
| Single fast op-amp,LM7171BIM SO8Brand | National Semiconductor |
Key Features
- Operates with supply voltage from 5.5V to 36V.
- Offers a high slew rate of 4100 V/μs for fast signal response.
- Includes a single channel with 8-pin surface mount SOIC package.
- High output current capacity of 105 mA suitable for demanding loads.
- Operates efficiently within temperature range from -40°C to 85°C.
- Features low input bias current at 12 μA and input offset current of 6 μA.
- Provides input offset voltage of 7 mV for precise amplification.
- Industrial grade operational amplifier series LM7171 for robust applications.
Product Description
Texas Instruments LM7171BIM/NOPB is a high-speed operational amplifier featuring a wide gain bandwidth of 200 MHz tailored for industrial and electronic applications. This device is housed in an 8-pin SOIC surface mount package that ensures compact integration into complex circuits requiring rapid and precise amplification performance.
It supports operating voltages ranging from 5.5V to a maximum of 36V, allowing flexible deployment in various power environments. The amplifier delivers a remarkable slew rate of 4100 V/μs that enables fast signal processing and minimal distortion, critical for high-frequency analog signal applications.
Designed for reliability, the LM7171BIM/NOPB performs across a broad temperature range from -40°C to 85°C, making it suitable for harsh industrial conditions. Its compact size with 4.9mm length, 3.9mm width, and 1.45mm height allows for space-efficient PCB designs.
The device provides a single channel with an output current capability of 105 mA, ensuring robust drive ability for a wide load range. Low input bias (12 μA) and input offset currents (6 μA), combined with a modest input offset voltage of 7 mV support accurate and stable signal amplification.
This operational amplifier is ideal for use in electronics manufacturing, instrumentation amplifiers, signal conditioning, and other applications requiring high-speed and high-precision analog amplification. It does not conform to automotive standards but is optimized for general semiconductor amplifier requirements.
Operates with supply voltage from 5.5V to 36V. High slew rate of 4100 V/μs for fast response. Compact 8-pin SOIC surface mount package. High output current of 105 mA. Operating temperature range -40°C to 85°C. Low input bias and offset currents.
Input offset voltage of 7 mV ensures precision. Single channel operation in LM7171 series.
Explore additional Texas Instruments Operational Amplifiers and semiconductor components in the Electronics & Electricals category at EnvMart to find the best solution for your design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the LM7171BIM/NOPB is 200 MHz, making it suitable for high-speed applications.
It has an output current capacity of 105 mA, allowing it to drive demanding loads effectively.
This operational amplifier operates with a supply voltage ranging from 5.5V to 36V.
It operates efficiently within a temperature range of -40°C to 85°C, suitable for industrial environments.
The LM7171BIM/NOPB comes in an 8-pin SOIC surface mount package, facilitating compact integration into circuits.
It features a high slew rate of 4100 V/μs, enabling fast signal response and minimal distortion.
The input bias current is 12 μA, and the input offset current is 6 μA, supporting accurate signal amplification.
The input offset voltage is 7 mV, which ensures precise amplification of signals.
This operational amplifier has dimensions of 4.9 mm in length, 3.9 mm in width, and 1.45 mm in height.
The LM7171BIM/NOPB features a single channel operation, making it suitable for specific amplification tasks.
It is ideal for use in electronics manufacturing, instrumentation amplifiers, and signal conditioning applications.
The LM7171BIM/NOPB is manufactured in India.
