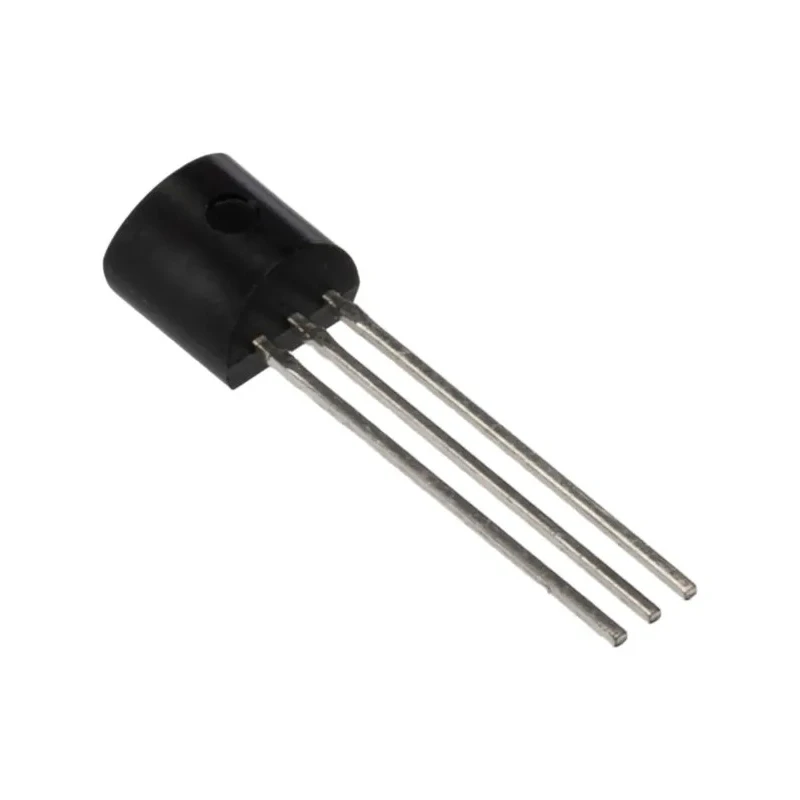

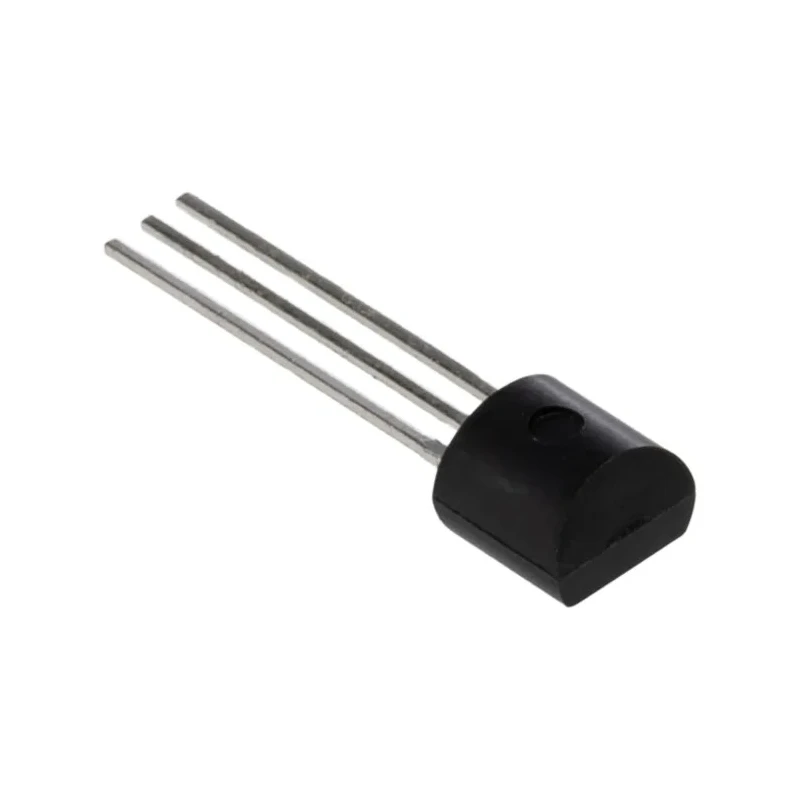

Texas Instruments Precision Shunt Voltage Reference 5V 1% Initial Accuracy 15mA 3-Pin TO-92 LM4040DIZ-5.0/NOPB

Texas Instruments LM4040DIZ-5.0/NOPB is a precision shunt voltage reference IC designed for providing a stable 5V reference voltage with 1% initial accuracy and shunt topology output. Housed in a compact 3-pin through-hole TO-92 package with a length and height of 5.2mm, this device delivers a fixed 5V output voltage with a maximum output current of 15mA. It features an excellent temperature coefficient of 30 ppm/°C, ensuring consistent performance over a broad operating temperature range from -40°C to 85°C.

Compliant with the automotive quality standard AEC-Q100, this voltage reference is well-suited for stringent reliability requirements in automotive and industrial environments. Its shunt configuration permits robust voltage regulation particularly useful in power management systems, measurement instruments, and electronic control units.

The device's compact size and through-hole mount type make it suitable for easy assembly on printed circuit boards. It supports electronic applications that require precise voltage referencing such as analog-to-digital converters, digital-to-analog converters, and sensor interfaces.

This voltage reference employs shunt topology for precision voltage regulation. Initial accuracy is maintained at 1% assuring reliable reference stability. Operating temperature range supports harsh and wide ambient conditions.

The AEC-Q100 automotive standard certification underlines ruggedness and quality. Compact TO-92 packaging enables straightforward mounting in diverse applications. Output current capability of 15mA allows versatile application use cases.

Ideal for industrial, automotive, and electronics component designs requiring precise voltage threshold. Explore the complete range of Texas Instruments Voltage References on EnvMart for your design and manufacturing needs.
