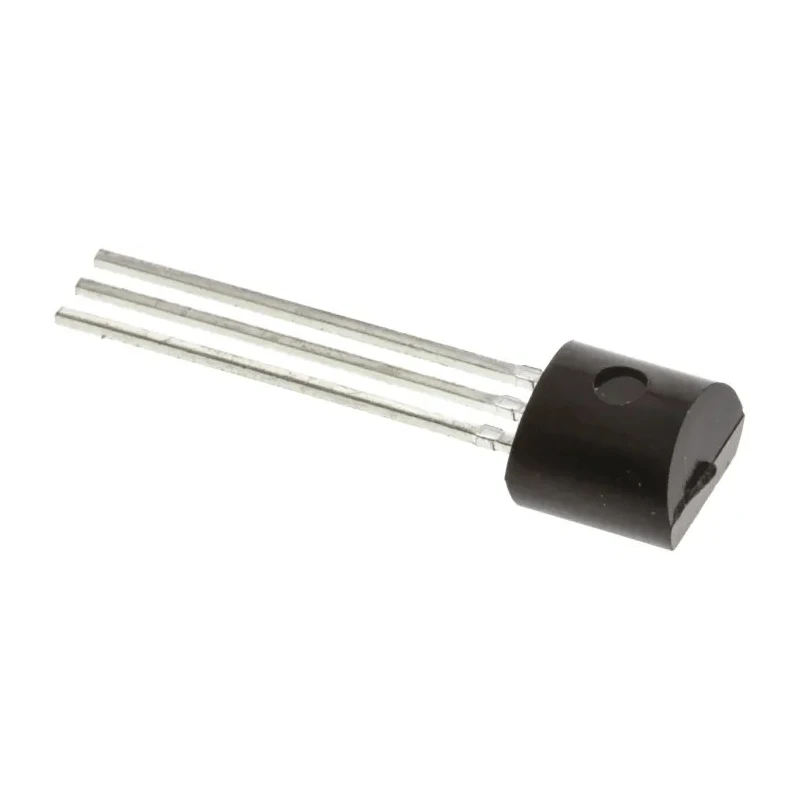

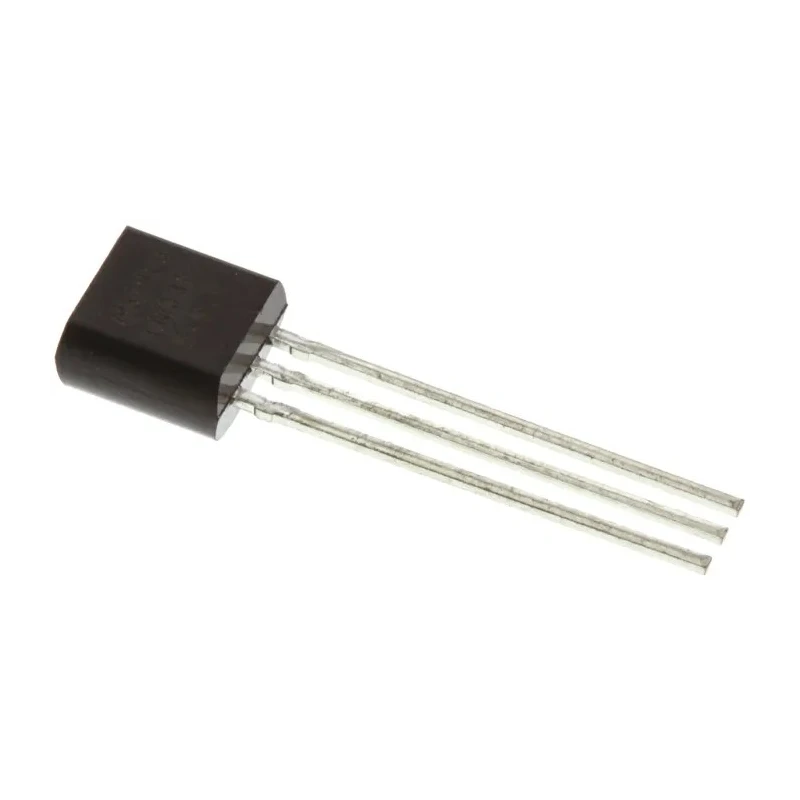

Texas Instruments Precision Shunt Voltage Reference 5V Adjustable Output 3-Pin TO-92 LM336Z-5.0/NOPB

Texas Instruments LM336Z-5.0/NOPB is a precision shunt voltage reference IC providing a fixed 5V output voltage with an initial accuracy of ±1 %. This device is packaged in a 3-pin TO-92 through-hole form factor, designed for easy mounting onto printed circuit boards. It is optimized for applications needing a stable voltage reference with adjustable output capabilities.

The IC operates within a temperature range of 0°C to 70°C and features a low temperature coefficient of 20 ppm/°C, maintaining output accuracy in varying environmental conditions. Its shunt topology allows a maximum output current of 10mA, with a load regulation rating of 20 mV. The device ensures low noise and stable voltage output, making it suitable for industrial, laboratory, and power management applications.

Physically compact at 5.2mm height and length, the device fits well into space-constrained electronic assemblies. The package type TO-92 and 3-pin connection simplifies integration while maintaining reliable electrical contact. Its operating voltage ranges from a minimum input of 4.9V to a maximum of 5.1V, catering to common power supply voltages.

Typical use cases include voltage regulation circuits, instrumentation, test equipment, and precision measurement systems where accurate voltage references are critical. The LM336 series is well-regarded for combining precision and durability in semiconductor voltage references.

This product is manufactured in China and is supplied new, meeting the high standards of Texas Instruments quality. It is a suitable component for engineers and manufacturers requiring a dependable voltage reference IC for diverse electronics projects.

Provides a stable 5V reference voltage for precision applications. Features adjustable output type suitable for varied circuit requirements. Designed with a wide operating temperature range from 0°C to 70°C. Through-hole mount type allows easy integration in PCB assemblies.

Shunt topology with a maximum output current of 10mA. Compact dimensions with 5.2mm height and length enable space-saving designs. Offers low temperature coefficient of 20 ppm/°C for reliable performance. Robust load regulation of 20 mV ensures voltage stability under varying load conditions.

Pin count of 3 facilitates straightforward electrical connections. Manufactured in China with quality control ensuring new product condition. Explore more precision Voltage References from Texas Instruments and other power management ICs on EnvMart for your design and manufacturing needs.
