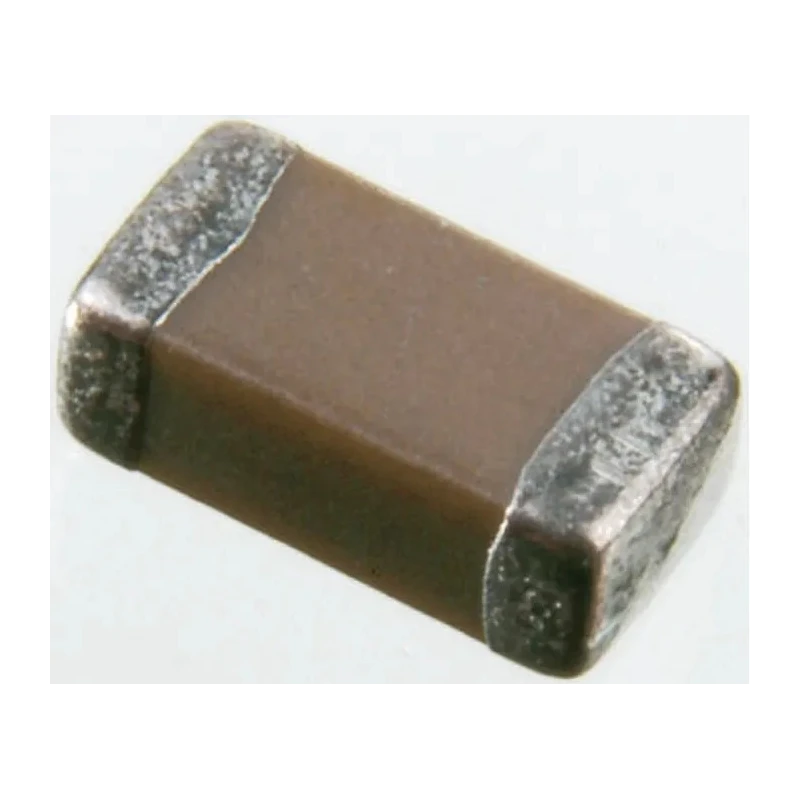

KYOCERA AVX 820 nF Multilayer Ceramic Capacitor 25V dc ±10% Tolerance Surface Mount FLEXITERM 1206 12063C824KAT2A

KYOCERA AVX 12063C824KAT2A is a Multilayer Ceramic Capacitor (MLCC) featuring a capacitance of 820 nF and rated for 25V dc voltage. This device is designed specifically as a surface mount component, utilizing the FLEXITERM series with a 1206 package size, measuring 3.2mm in length, 1.6mm in width, and 0.33mm in height.

The capacitor uses X7R dielectric, recognized as a temperature stable EIA Class II ceramic material, providing a stable capacitance characteristic over a wide operating temperature range from -55°C to 125°C. The ±10% tolerance ensures precision in circuit applications requiring consistent capacitance values. Termination is surface mount compatible, facilitating automated assembly processes.

Application areas for this MLCC include use as snubbers in high-frequency power converters, resonators in switched-mode power supplies (SMPS), and high voltage coupling or DC blocking circuits, benefiting from its low equivalent series resistance (ESR) and compact size.

The component is supplied on reels for efficient insertion in automated machinery, improving production throughput. It is not automotive standard certified and does not carry additional approvals.

Compact 1206 package with FLEXITERM termination style. X7R dielectric provides temperature stability. Capacitance of 820 nF with ±10% tolerance. Rated for 25V dc operation. Suitable for high-frequency power and DC blocking applications.

Operating temperature range from -55°C to 125°C. Surface mount termination type for PCB assembly automation. Supplied on a reel packaging format.

This capacitor is ideal for industrial electronics, power supply circuits, telecommunications equipment, and consumer electronics requiring reliable, temperature stable multilayer capacitors. Explore more in the Electronics Components category at EnvMart for complementary passive components and accessories suitable for automated manufacturing environments.
