Texas Instruments Receiver IC 28 Drivers 28 Receivers LVDS Input LVCMOS Output 2380 Mbps Transmission Data DS90CF386MTD/NOPB

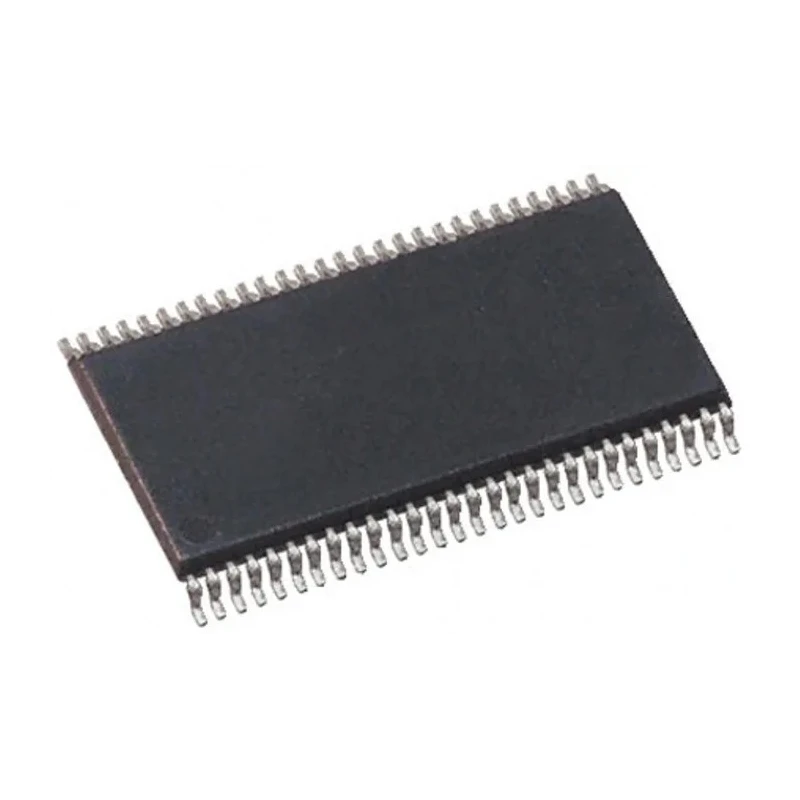

Texas Instruments DS90CF386MTD/NOPB is a high-performance receiver IC designed specifically for LVDS (Low Voltage Differential Signaling) applications, featuring 28 drivers and 28 receivers in a compact 56-pin TSSOP surface-mount package. It provides a transmission data rate of up to 2380 Mbps, making it suitable for high-speed data communication needs in industrial, electronic, and computing environments.

This receiver IC supports LVDS input and LVCMOS output interfaces, enabling seamless integration with various logic families. Operated within a supply voltage of 3 V to 3.6 V, it ensures low-power consumption and reliable performance. The device includes ESD protection to enhance durability and complies with RoHS environmental standards, promoting safe use and disposal.

Designed for versatility, the DS90CF386MTD/NOPB operates efficiently within a temperature range from -10°C to 70°C, suitable for industrial and commercial electronic equipment. Its flat-form factor with a length of 14 mm and height of 900 μm allows for space-saving PCB designs.

The device includes three elements per chip supporting FlatLink/FPD-Link serialiser/deserialiser technology. This IC is well-suited for high-speed serial data transmission applications such as FireWire, SATA, and SCSI interfaces, commonly used in computing and communication equipment.

Supports high-speed LVDS and LVCMOS signal conversions. Compact 56-pin TSSOP surface mount package ensures PCB space optimization. Wide operating voltage (3 V to 3.6 V) allows use in various low power systems. Robust ESD protection enhances device reliability over lifecycle.

Complies with RoHS standards for environmental safety. Operates efficiently in temperature ranges from -10°C to 70°C. FlatLink/FPD-Link compatibility for serial transmission applications. Ideal for industrial electronics, communications, and computing applications.

Length 14 mm and height 900 μm supports compact electronics designs.

This Receiver IC is a precise solution for engineers and manufacturers requiring high data throughput and signal integrity within compact form factors. Browse the Semiconductor section at EnvMart to explore compatible Interface ICs and related Texas Instruments components for your electronic designs.
