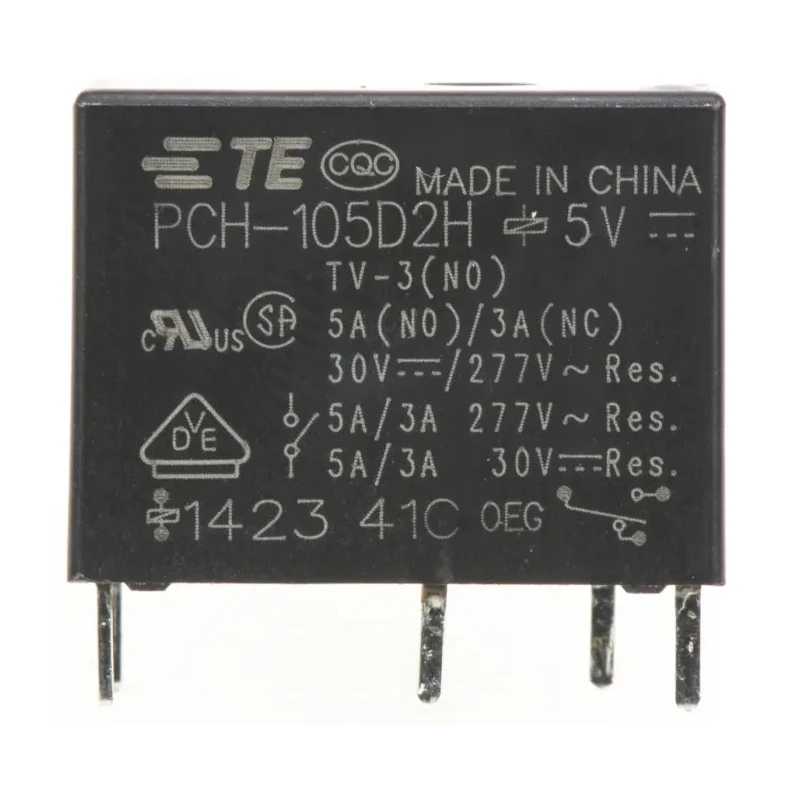

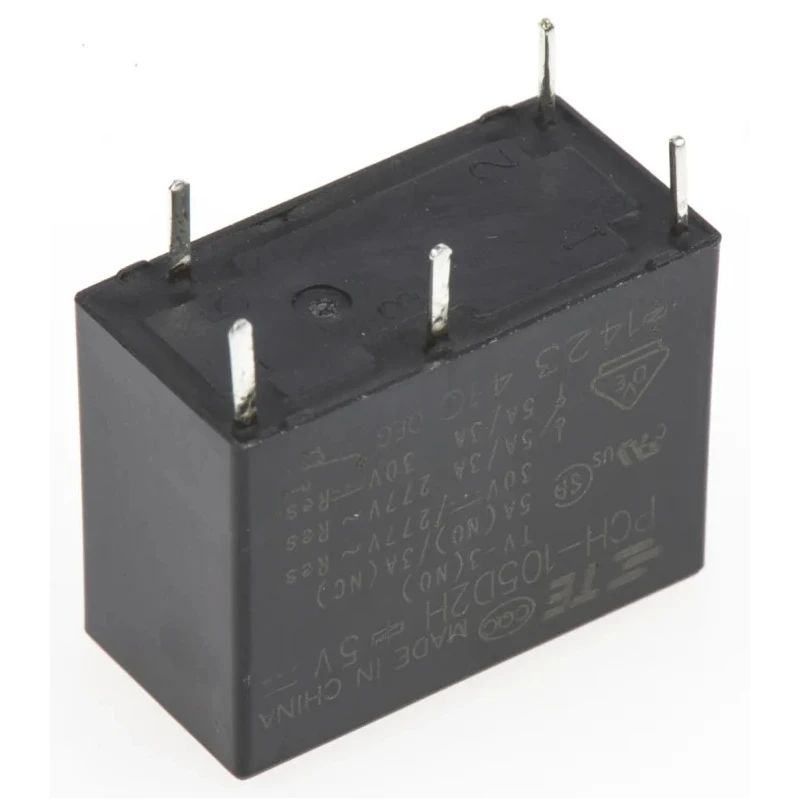

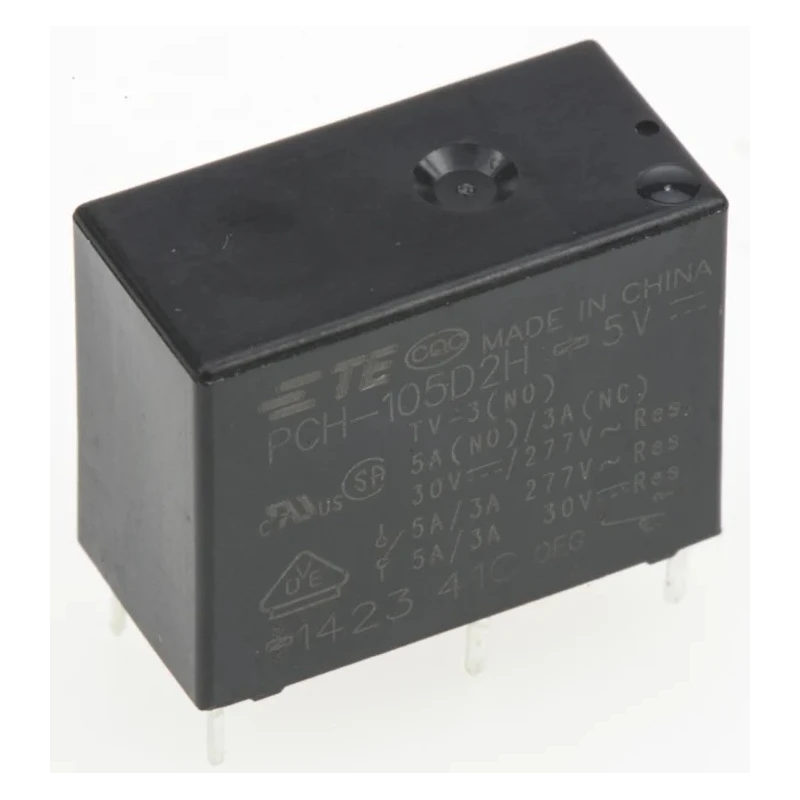

TE Connectivity DIN Rail Power Relay with 5V DC Coil, 10A Switching Current, SPDT Contact Configuration PCH-105D2H

TE Connectivity PCH-105D2H DIN Rail Power Relay is a robust and compact miniature relay designed for industrial automation, control systems, HVAC applications, and refrigeration equipment. Featuring a 5V DC coil and a Single Pole Double Throw (SPDT) contact configuration, this relay supports switching currents up to 10A, delivering reliable performance in demanding environments.

This relay mounts conveniently on DIN rails, streamlining installation and maintenance in electrical enclosures. Its silver alloy contacts ensure excellent electrical conductivity and resistance to wear, while the sealed plastic cover protects internal components from dust and moisture, enhancing durability and longevity.

The PCH series features a low coil power consumption of 200mW with a coil resistance of 63 ohms, contributing to energy-efficient operation. The device operates within an ambient temperature range from minus 40 to 85 degrees Celsius, suitable for a broad range of industrial, laboratory, and manufacturing environments.

Additional specifications include compact dimensions of 20 mm length, 15.2 mm height, and 14 mm width, allowing integration into space-constrained control panels. This product meets RoHS compliance standards, aligning with environmental regulations.

Coil voltage of 5V DC ensures efficient relay operation. Single Pole Double Throw (SPDT) contact configuration provides versatile switching. DIN Rail mounting facilitates easy installation in control panels. Silver alloy contact material enhances conductivity and durability.

Operates within a temperature range from -40°C to 85°C for wide industrial use. Coil resistance is 63 ohms, designed for low power consumption at 200mW coil power. Compact dimensions: 20 mm length, 15.2 mm height, and 14 mm width suitable for space-saving assemblies.

Switching current rated at 10A, supporting 5A @ 250V AC and 10A @ 125V AC per international standards. RoHS compliant, ensuring environmental safety and regulatory adherence. Manufactured in China with high manufacturing and quality standards.

This TE Connectivity DIN Rail Power Relay is ideal for use in industrial automation systems, electrical control panels, HVAC systems, refrigeration units, laboratory instruments, and manufacturing equipment where reliable electrical switching is critical.
