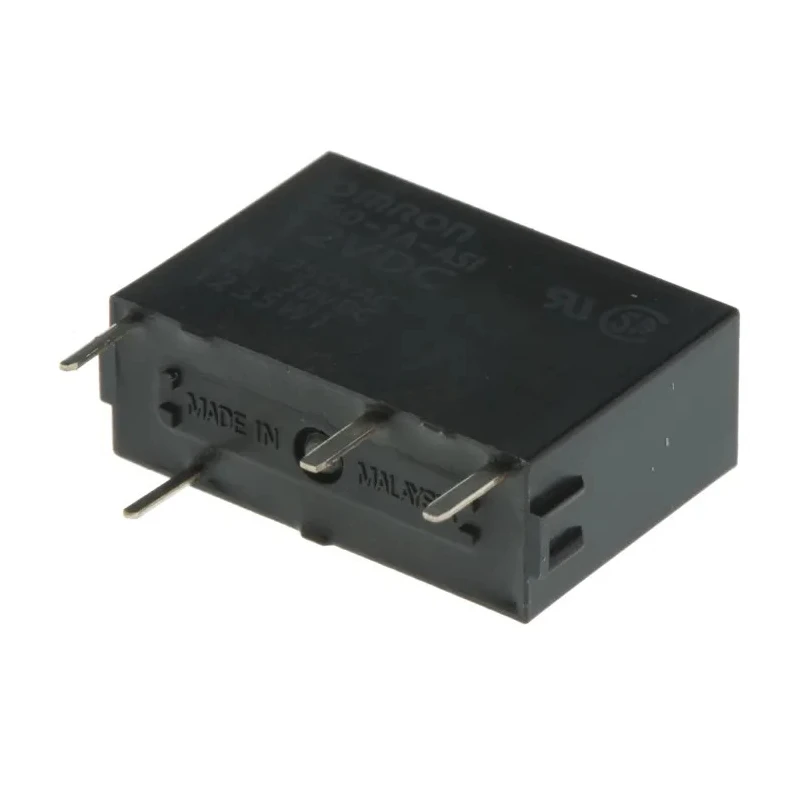

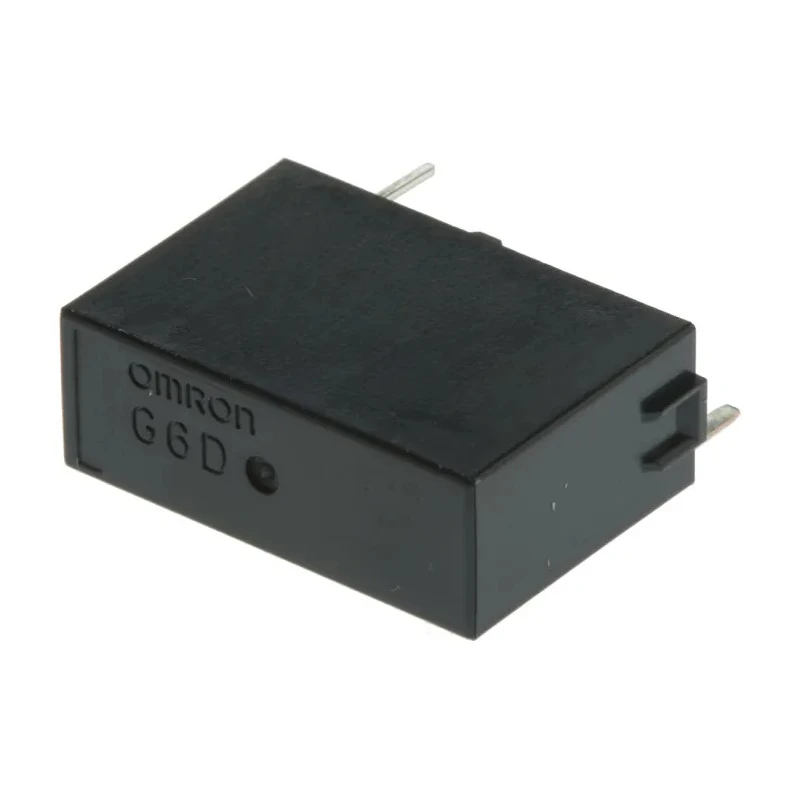

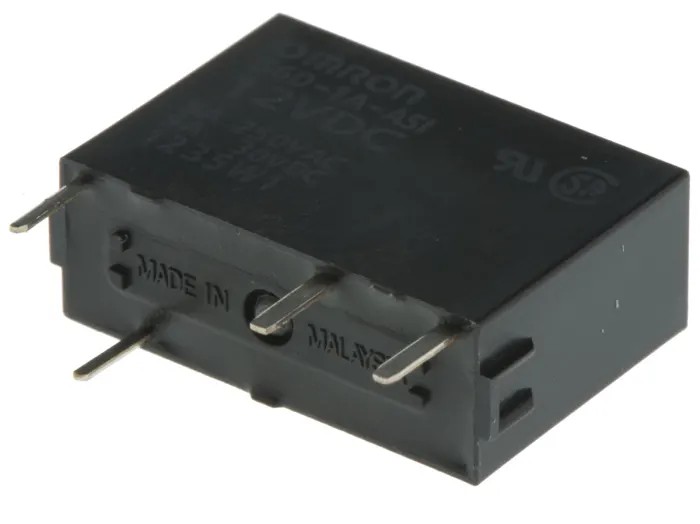

Omron DIN Rail Power Relay 12V DC Coil 5A Switching Current SPST G6D-1A-ASI DC12
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 12.5mm |
| Length | 18.5mm |
| Model | G6D-1A-ASI DC12 |
| Width | 14mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | G6D |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Switching Current | 5A |
| Terminal type | Through Hole |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Mechanical Life | 2 x 107 |
| Coil Resistance | 720Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 200mW |
| SPNO ultra-slim PCB relay,5A 12Vdc coilBrand | Omron |
Key Features
- The relay supports a coil voltage of 12V DC for efficient operation.
- Contact configuration is Single Pole Single Throw (SPST) ideal for on/off applications.
- Rated switching current up to 5 amps suitable for moderate power loads.
- Designed for DIN rail mounting ensuring easy installation and space saving.
- Fully sealed construction protects internal components from environmental factors.
- Contact material is silver alloy providing low contact resistance and durability.
- Switching voltages of 30V DC and 250V AC for versatile usage.
- Coil resistance rated at 720 ohms with coil power consumption of 200mW.
Product Description
Omron G6D-1A-ASI DC12 DIN Rail Power Relay is a compact and reliable relay designed for efficient switching of electrical loads in industrial and automation applications. Featuring a 12V DC coil voltage and SPST contact configuration, this power relay supports switching currents up to 5A allowing control of moderate power devices.
The relay offers a fully sealed construction to protect against dust and moisture, ensuring durability in harsh environments. With contact material made of silver alloy, it guarantees low contact resistance of 100 milliohms for high conductivity and minimal power loss.
Designed for DIN rail mounting, the G6D series relay has a slim footprint width of only 6.5mm permitting compact installation in control panels with adjacent relays mounted on a tight 6.5mm pitch.
The relay supports switching voltages up to 250V AC and 30V DC making it suitable for various power supply types. Its coil resistance of 720 ohms and coil power consumption of 200mW ensure low power coil operation reducing heat generation.
Engineered with a mechanical life expectancy of 20 million operations, this power relay offers excellent longevity for industrial use in electrical automation, HVAC control, manufacturing machinery, and power distribution systems.
The relay is UL recognized and CSA certified ensuring compliance with safety standards. Its temperature operating range from -25°C to 70°C suits diverse environmental conditions encountered in manufacturing and industrial automation.
Silver alloy contacts provide durability and reduce wear from frequent switching. Through hole terminal type allows secure soldering and stable electrical connections. The compact dimensions (Height: 12.5mm, Width: 14mm, Length: 18.5mm) contribute to efficient panel design.
This power relay is ideal for control panels requiring reliable switching of DC and AC loads with compact footprint and robust construction. It finds applications across industrial automation, electrical equipment, power management systems, and other commercial uses.
Explore more quality and certified power relays in the Power Relay category at EnvMart to suit your industrial and commercial application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 12V DC.
It supports a maximum switching current of 5A.
This relay features a Single Pole Single Throw (SPST) contact configuration.
The dimensions are as follows: Height 12.5mm, Width 14mm, and Length 18.5mm.
The coil resistance is rated at 720 ohms.
It has a mechanical life expectancy of 20 million operations.
The relay supports switching voltages of up to 30V DC and 250V AC.
The coil power consumption is 200mW.
The contacts are made of silver alloy, providing low contact resistance.
The operating temperature range is from -25°C to 70°C.
It is designed for DIN rail mounting, allowing for easy installation.
This model is RoHS compliant, ensuring it meets safety standards.
