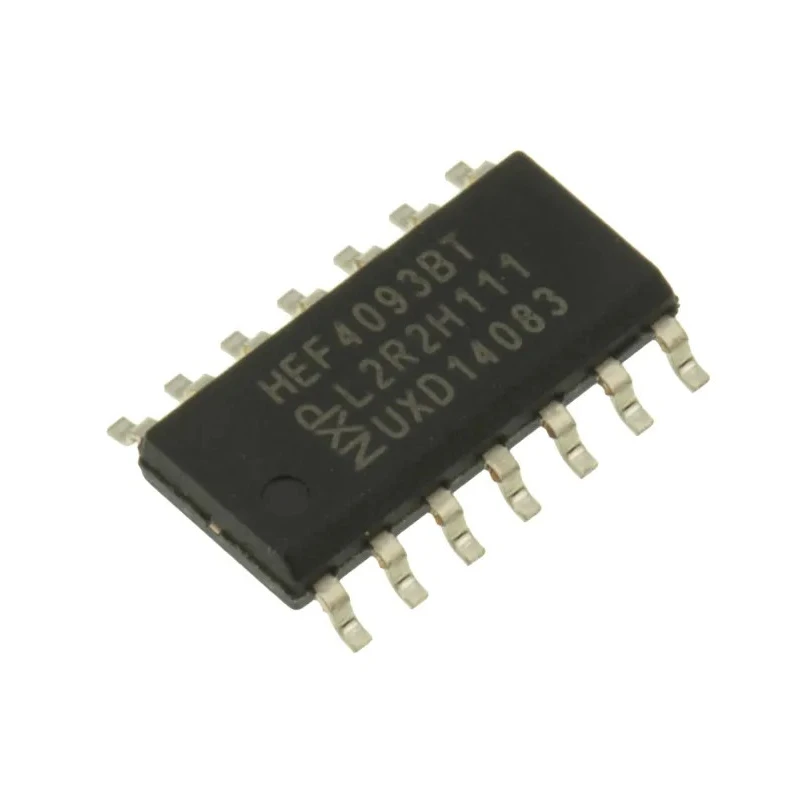

Nexperia 4 2-Input NAND Schmitt Trigger Input Logic Gate, 14-Pin SOIC HEF4093BT,652

Nexperia HEF4093BT,652 is a quad 2-input NAND logic gate integrated circuit with Schmitt trigger inputs, designed for reliable and noise-immune digital logic signal processing. It features four independent gates, each with two inputs equipped with Schmitt trigger circuits to provide hysteresis voltage, improving signal integrity by differentiating between positive and negative transitions.

This IC operates over a broad power supply range from 3 V up to 15 V, making it compatible with a variety of electronic systems including mixed 3.3 V and 5 V environments. Its typical propagation delay is 185 nanoseconds, ensuring rapid response times suitable for complex PCB layouts.

Encapsulated in a 14-pin Small Outline Integrated Circuit (SOIC) package, the HEF4093BT,652 supports surface mount technology for compact high-density circuit designs. The device conforms to JEDEC JESD 13-B standards, ensuring consistent performance and compatibility.

Key characteristics include a maximum ambient operating temperature up to 125°C and a minimum down to -40°C, allowing usage in harsh industrial and commercial environments. The maximum output currents are ±4.2 mA for high and low levels respectively, providing sufficient drive for downstream logic circuits.

Four independent 2-input NAND logic gates with Schmitt trigger inputs for noise immunity. Wide supply voltage range from 3 V to 15 V for flexible application. Typical propagation delay of 185 ns for fast signal processing.

Small 14-pin SOIC surface mount package optimizes board space. Thermal operating temperature range -40°C to 125°C for industrial use. JEDEC JESD 13-B certified ensures manufacturing quality and reliability. Maximum output current ±4.2 mA supports effective signal driving capability.

This logic IC is ideal for use in industrial, commercial, and electronic equipment requiring robust NAND logic functions with enhanced input noise immunity. It suits applications in embedded systems, automation controls, signal conditioning, and general-purpose digital logic circuits.
