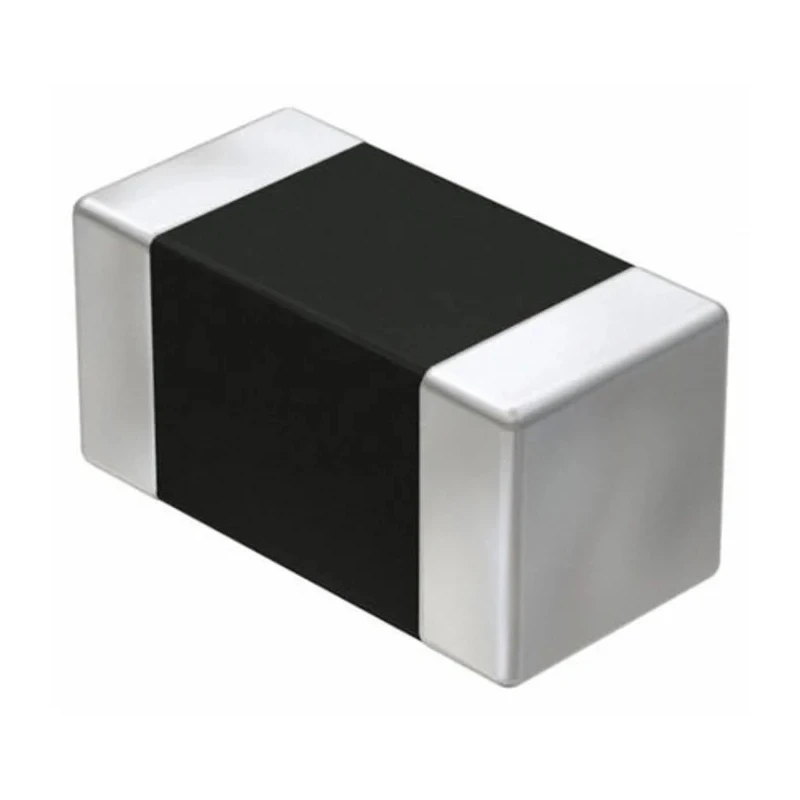

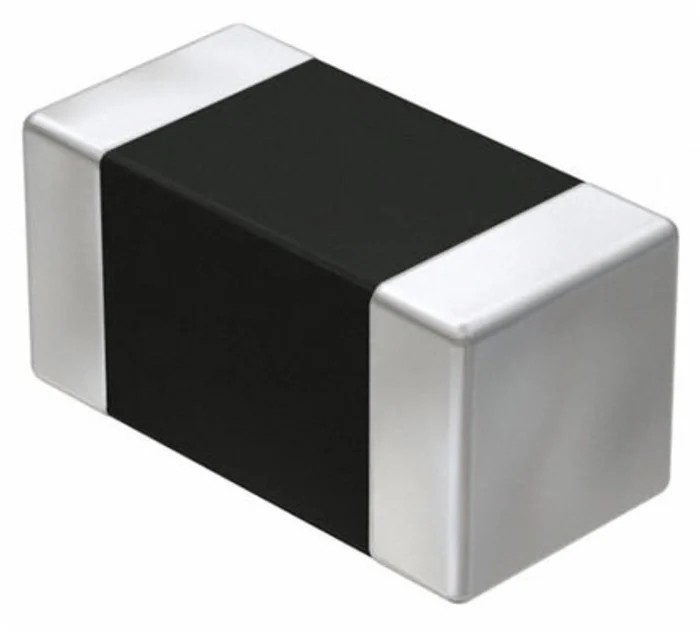

Wurth Elektronik WE-CBF 0603 Shielded Multilayer Surface Mount Inductor with Ferrite Core 200mA IDC 74279266
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Wurth Elektronik |
| Height | 0.8mm |
| Length | 1.6mm |
| Model | 74279266 |
| Depth | 0.8mm |
| Packaging | Tape & Reel |
| Series | WE-CBF |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Standards/Approvals | IEC 60286-3:2013 |
| Package/Case | 0603 |
| Maximum DC Current | 200mA |
| Pin Count | 2 |
| Maximum DC Resistance | 600mΩ |
| Termination Style | Surface Mount |
| Inductor Construction | Multilayer |
| High Current | Current supply, DC/DC converter etc |
| Wide Band | Control signals, RS232, RS422, DC/DC converter, etc |
| Standards/Approvals IEC 60286-3 | 2013 |
Key Features
- Compact 0603 package with dimensions 1.6mm length, 0.8mm height and depth enables space-saving PCB designs.
- Shielded ferrite core construction ensures excellent EMI suppression and reduces electromagnetic interference.
- Maximum DC resistance of 600mΩ guarantees low power loss and efficient current handling.
- Operating temperature range from -55°C to 125°C suits industrial and automotive environments.
- Surface mount termination style and tape & reel packaging support automated assembly processes.
- Recommended for high speed data line filtering and voltage decoupling applications such as USB 2.0, IEEE 1394, LVDS.
- Suitable for wide band control signals including RS232, RS422, and DC/DC converter circuits.
- Ferrite core multilayer design supports high current demands up to 6A and reflow soldering.
Product Description
Wurth Elektronik model 74279266 is a high-performance 0603 shielded multilayer surface mount inductor featuring a ferrite core. It supports a maximum DC current of 200 mA with superior anti-EMI properties and low DC resistance of 600mΩ. The compact size (1.6mm length, 0.8mm height and depth) allows integration into high-density PCB layouts.
This inductor employs multilayer construction with Ni-Sn electrodes for reliable soldering and durability. The tape and reel packaging format caters to automated manufacturing and assembly lines.
Operating temperature from -55°C to 125°C and compliance with IEC 60286-3:2013 standards make it suitable for industrial, telecommunications, automotive, and commercial electronics applications.
This component is ideal for high speed data line filtering such as USB 2.0, IEEE 1394, LVDS, and for wide band control signals including RS232, RS422, and DC/DC converters. The design supports high current supplies up to 6A for demanding power management implementations.
Compact 0603 form factor supports PCB space-saving. Shielded ferrite core reduces electromagnetic interference. Low DC resistance boosts efficiency and thermal performance. Robust operating temperature range from -55°C to 125°C.
IEC 60286-3:2013 compliant quality standard. Tape & reel packaging for seamless automated assembly. Multilayer construction ensures high reliability and performance. Applications include USB 2.0, LVDS, RS232, RS422, and DC/DC converters.
Supports high current supply requirements up to 6A.
Originating from Taiwan, Province Of China, this product is engineered for industrial and electronics manufacturing sectors requiring precision inductors with effective EMI shielding and consistent performance.
Explore the comprehensive range of Wurth Elektronik electronic components and Surface Mount Inductors at EnvMart to support your manufacturing, design, and development needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum DC current rating for this model is 200 mA.
The dimensions of the 0603 package are 1.6 mm in length, 0.8 mm in height, and 0.8 mm in depth.
This inductor operates within a temperature range of -55°C to 125°C.
The inductor features a ferrite core construction, which enhances its EMI suppression capabilities.
It is packaged in tape and reel format, which supports automated manufacturing and assembly processes.
This model complies with the IEC 60286-3:2013 standards.
The maximum DC resistance is 600 mΩ, ensuring low power loss and efficient current handling.
It is recommended for high-speed data line filtering and voltage decoupling applications such as USB 2.0, IEEE 1394, and LVDS.
The termination style of this inductor is surface mount, allowing for easy integration into PCBs.
This inductor employs a multilayer construction, which supports high current demands and enhances reliability.
It supports wide band control signals including RS232, RS422, and DC/DC converter circuits.
The inductor originates from Taiwan, Province of China.
