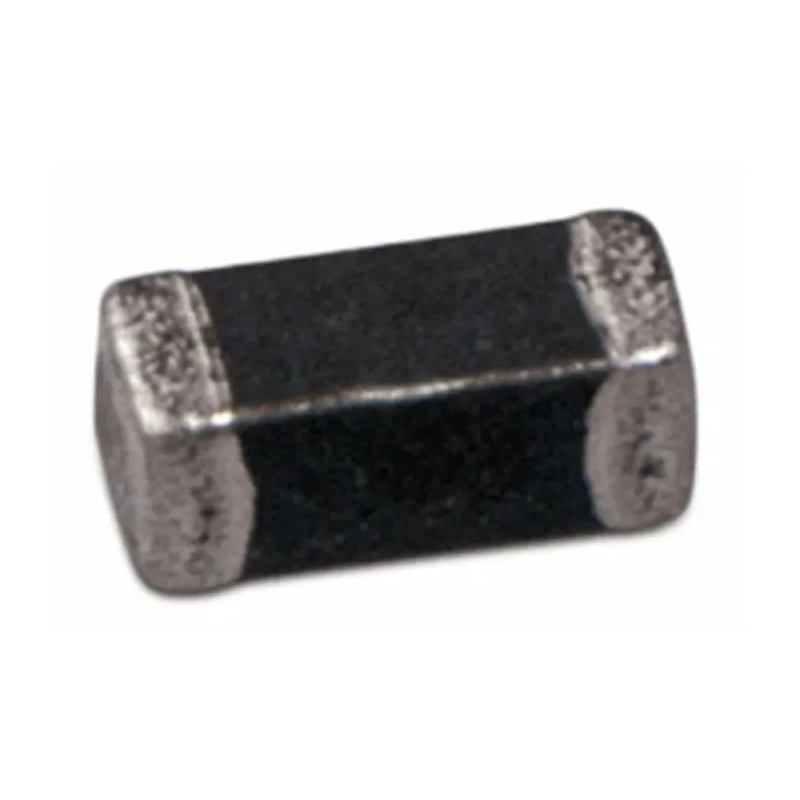

Wurth Elektronik 10μH 25mA 1206 Shielded Multilayer Surface Mount Inductor with Ferrite Core 7447918

Wurth Elektronik 7447918 is a 10μH shielded multilayer surface mount inductor featuring a ferrite core and a compact 1206 package size. Designed for high-performance electronic applications, it supports a maximum DC current of 25mA with a low DC resistance of 600mΩ, ensuring minimal power loss.

This surface mount inductor is magnetically screened to eliminate undesirable coupling effects and has excellent soldering properties, making it ideal for automated manufacturing environments. It operates effectively within a wide temperature range of -55°C to 125°C, suitable for telecommunications, computing, filter circuits, oscillator circuits, and adapter network applications.

The inductance tolerance is ±10%, and with a minimum quality factor of 50, it provides stable and reliable inductance over its operating range. The maximum self-resonant frequency is 26 MHz, enabling the inductor to function efficiently in high-frequency circuits.

Packaged on tape and reel, the Wurth 7447918 supports efficient placement in Surface Mount Technology (SMT) assembly lines. Its ferrite core contributes to magnetic shielding and improved performance in sensitive electronic environments.

Manufactured in Taiwan, Province Of China, this high-quality multilayer inductor is compliant with RoHS and REACH standards, affirming its environmental safety and quality assurance.

Rated inductance of 10 microhenries with ±10% tolerance. Constructed with a ferrite core for effective magnetic shielding. Compact 1206 package case size with surface mount termination. Low maximum DC resistance of 600 milliohms for efficient current flow.

Operating temperature range from -55°C to 125°C suitable for demanding environments. Maximum self-resonant frequency of 26 MHz ensuring reliable performance in high-frequency circuits. High-quality multilayer construction providing excellent soldering properties and temperature stability.

Packaged on tape and reel for automated SMT assembly processes.

This Wurth Elektronik 7447918 inductor is ideal for use in telecommunications, computers, filter circuits, oscillator circuits, and adapter network assemblies. It offers high packing density on PCBs due to its magnetic shielding, which reduces coupling effects, supporting compact and efficient circuit designs.
