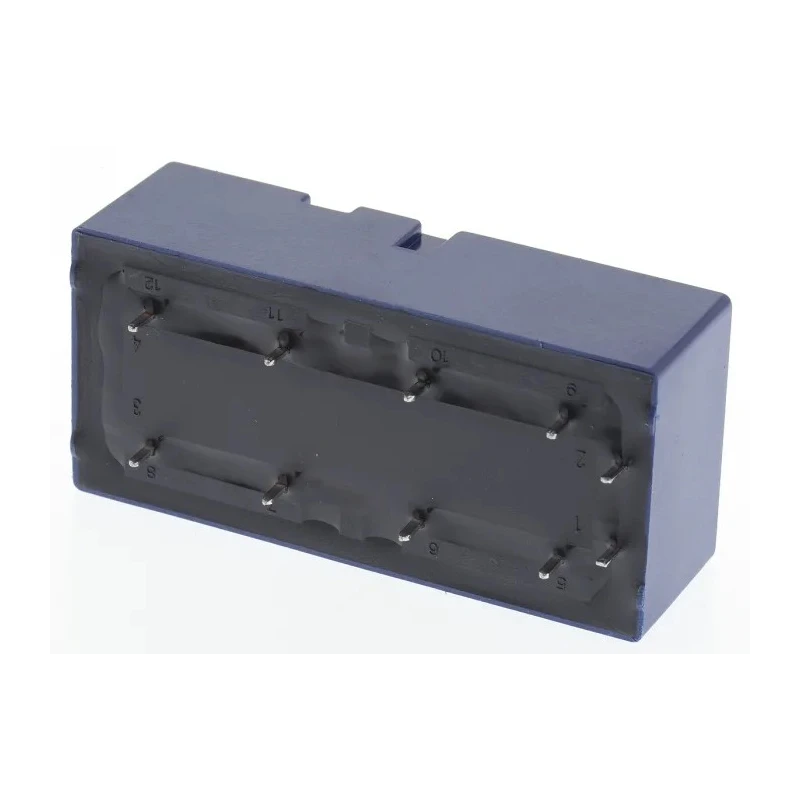

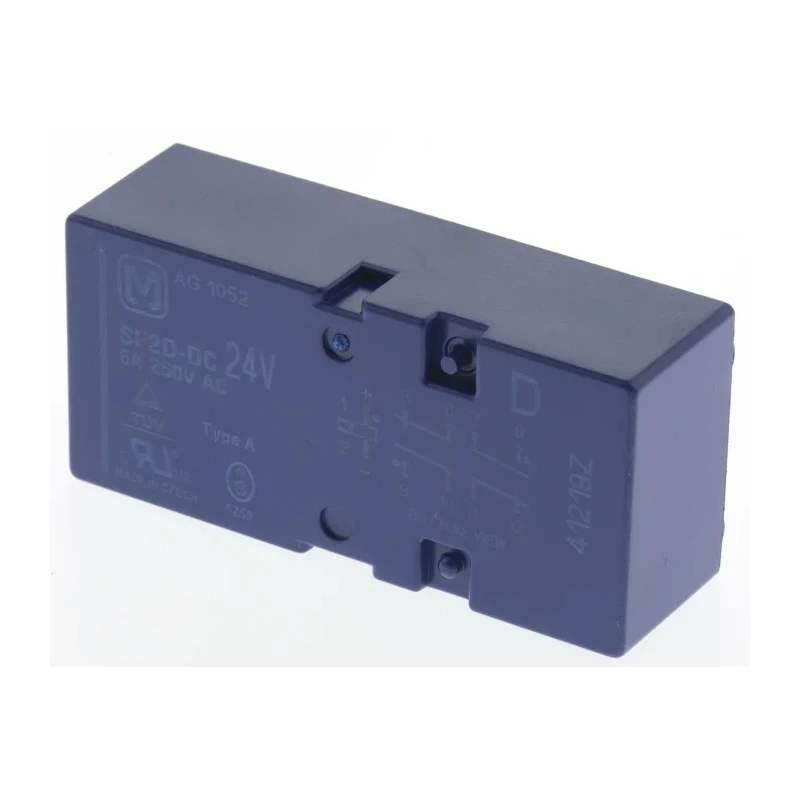

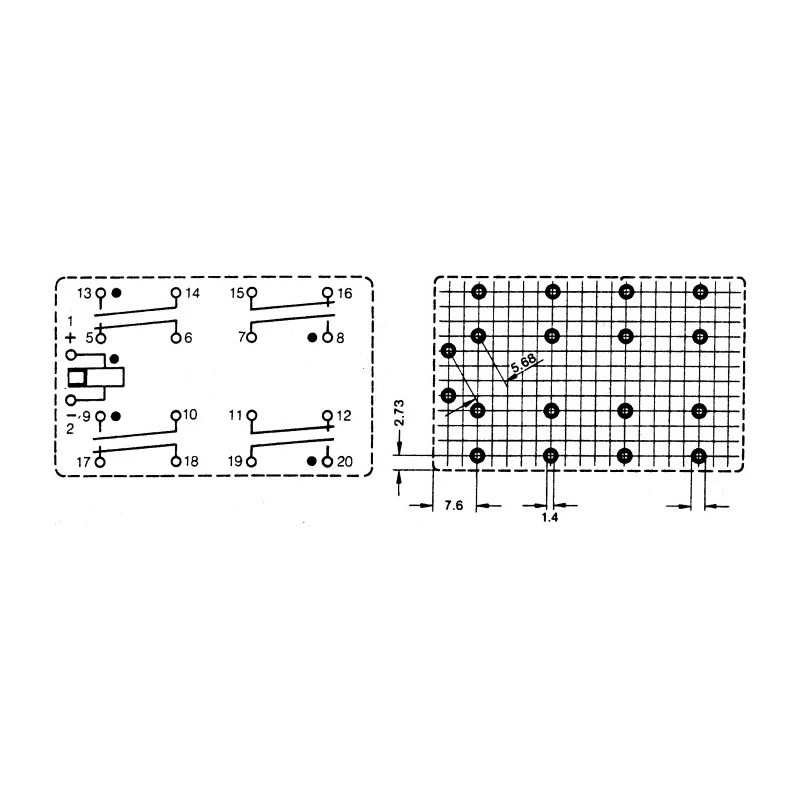

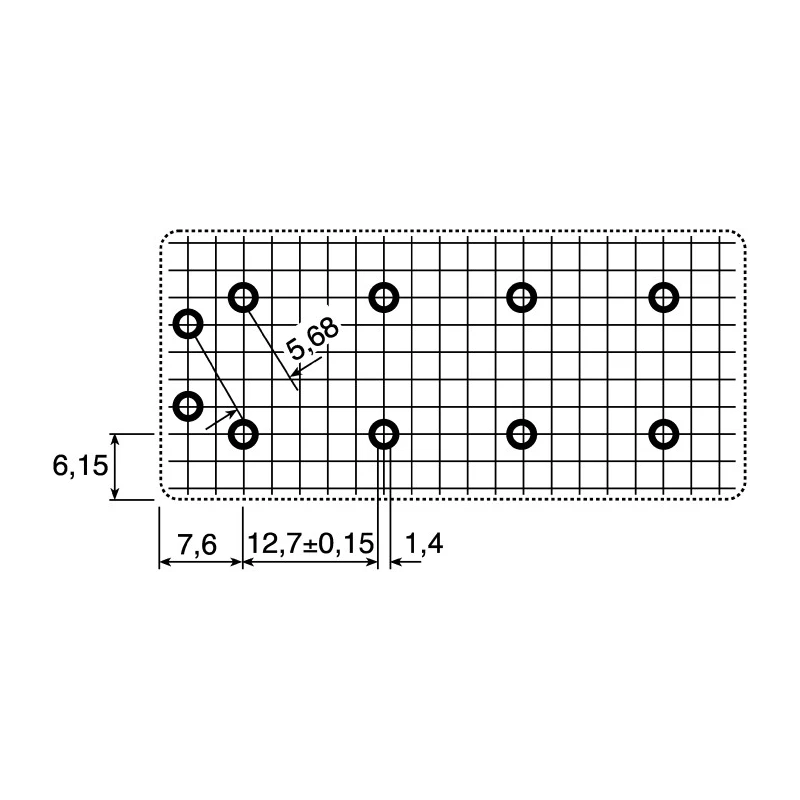

Panasonic Force Guided Relay PCB Mount 2-Pole DPDT 24V DC Coil Voltage SF2D24D
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | Panasonic |
| Height | 16mm |
| Operating Temperature Range | -40°C to +70°C |
| Length | 53.3mm |
| Model | SF2D24D |
| Depth | 25mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | SF2D |
| Maximum Operating Temperature | 70°C |

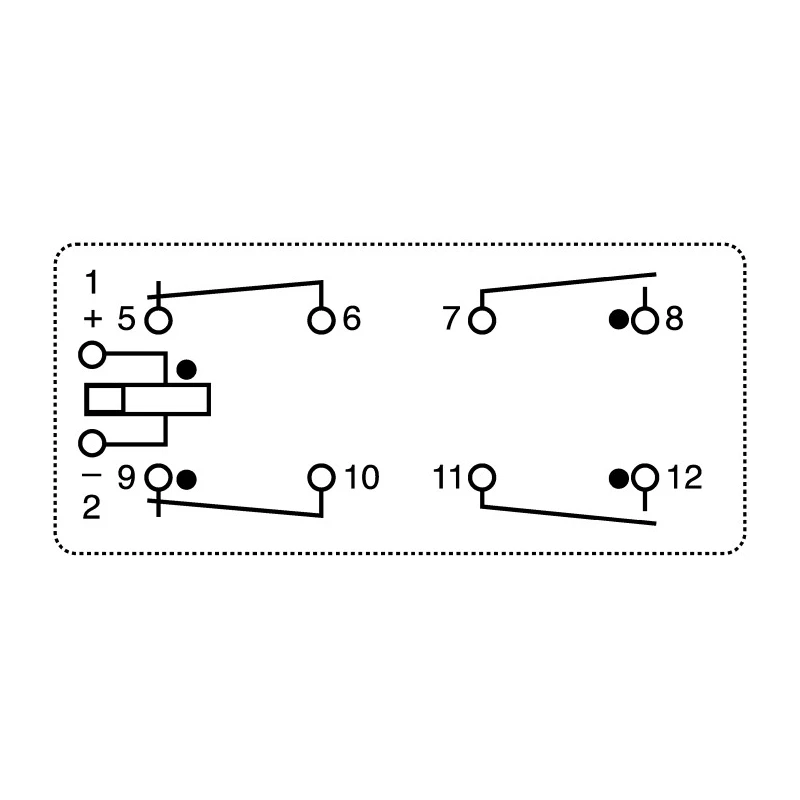

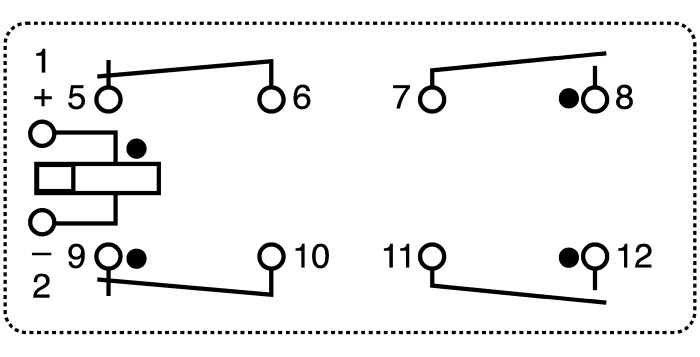

| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Number of Poles | 2 |
| Coil Resistance | 1.152kΩ |
| Coil Power | 500mW |
| Maximum Switching Voltage | 400V |
| Isolation Coil To Contact | 2.5kVrms |
| Panasonic PCB Non-Latching Relay, 24V dc Coil, 3A Switching Current, DPDTBrand | Panasonic |
| Panasonic Non-Latching Relay, 10A Switching CurrentBrand | Panasonic |
Key Features
- This relay features a coil resistance of 1.152 kilo-ohms and coil power of 500 milliwatts.
- It supports a maximum switching voltage of 400 volts, suitable for industrial and automation applications.
- The contact material is gold plated (AgSnO2 with Au flash) ensuring reliable electrical conductivity.
- Designed to operate in a wide temperature range from -40°C to 70°C.
- The relay has dimensions of 16mm height, 25mm depth, and 53.3mm length for compact PCB integration.
- It uses solder terminal type for secure connections to PCB circuits.
- This force guided safety relay complies with EN50205 Type A and IEC60664-1 III/4kV safety standards.
- Isolation between coil and contact is rated at 2.5 kilovolts RMS.
Product Description
Panasonic SF2D24D is a force guided safety relay designed for mounting on printed circuit boards (PCB) and is powered by a 24V DC coil. This 2-pole Double Pole Double Throw (DPDT) relay provides reliable switching with a maximum switching voltage of 400V and coil power consumption of 500mW, making it well-suited for industrial automation, machine safety systems, and safety-critical applications including presses, combustion systems, railway signaling, and medical equipment.
The device features gold-plated contacts (AgSnO2 with Au flash) to ensure superior conductivity and longevity. Its coil resistance is 1.152kΩ and the isolation voltage between coil and contact stands at 2.5kVrms, providing effective electrical isolation for enhanced safety. It operates reliably within a broad temperature range from -40°C to +70°C, accommodating various environmental conditions.
The compact relay measures 16mm in height, 25mm in depth, and 53.3mm in length, making it ideal for PCB mount installations. The solder-type terminal connections facilitate secure and stable integration into circuitry.
Certified to international safety standards including EN50205 Type A and IEC60664-1 III/4kV, this relay ensures compliance for safety-relevant machinery and apparatus. Originating from the Czech Republic, the Panasonic SF2D24D relay is a dependable component for critical industrial safety applications demanding high reliability and proven safety compliance.
This relay’s coil consumes only 500 milliwatts. It supports DPDT contact configuration with two poles for complex switching needs. Gold-plated contacts enhance durability and reduce contact resistance. Wide operating temperature range accommodates harsh environments.
Meets global safety standards for Force Guided Relays. Compact dimensions allow for versatile PCB mounting. Reliable solder terminal type ensures strong electrical connections. Ideal for use in construction, agricultural machinery, railway, and medical safety systems.
Explore more Panasonic industrial relays and safety components on EnvMart for automation and safety control system projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 24V DC.
It supports a maximum switching voltage of 400 volts.
This relay features a Double Pole Double Throw (DPDT) contact configuration.
The coil resistance is 1.152 kilo-ohms.
The relay measures 16mm in height, 25mm in depth, and 53.3mm in length.
It operates within a temperature range of -40°C to +70°C.
This model uses solder-type terminals for secure connections to PCB circuits.
The isolation voltage between the coil and contact is rated at 2.5 kilovolts RMS.
The contact material is gold plated (AgSnO2 with Au flash) to ensure reliable conductivity.
It complies with EN50205 Type A and IEC60664-1 III/4kV safety standards.
The coil power consumption is 500 milliwatts.
This relay is manufactured in the Czech Republic.
