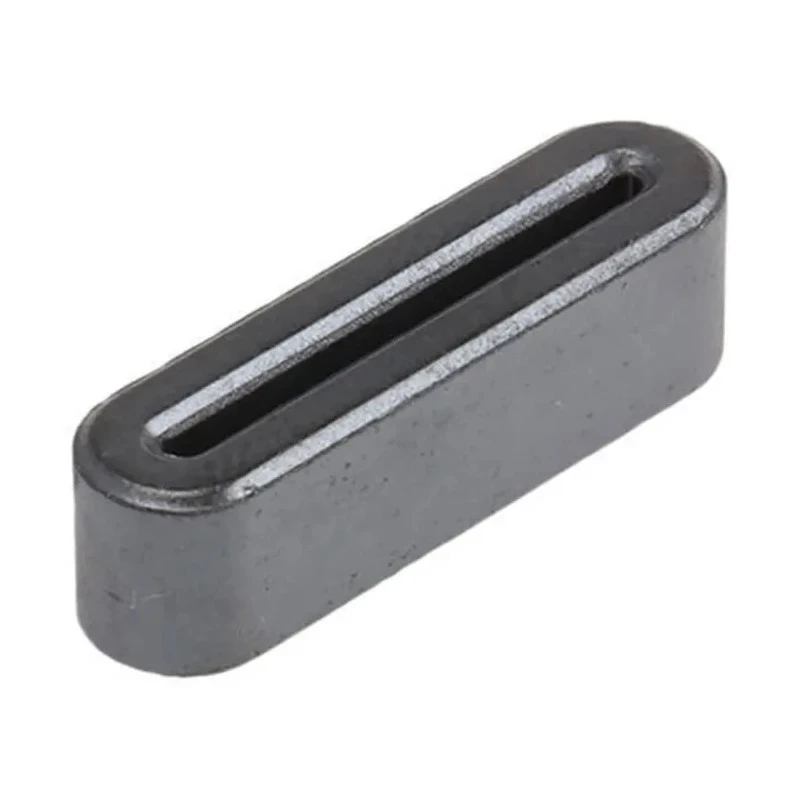

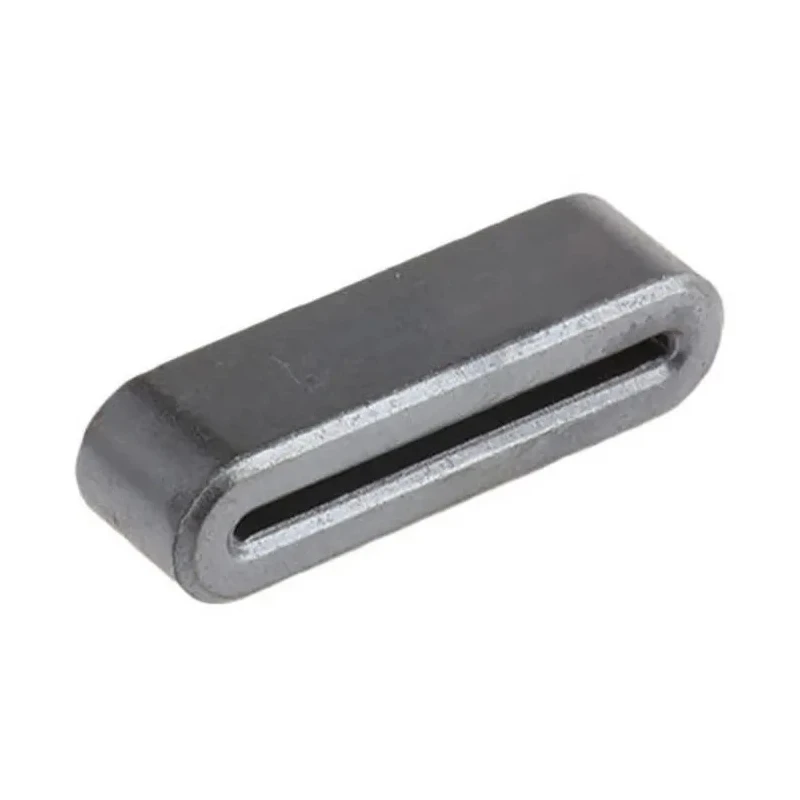

Wurth Elektronik 4W1500 Fixed Ferrite Sleeve for Flat Cables, 13 Max. Wires, Internal Width 18.8 mm, Internal Height 7427225

Wurth Elektronik 7427225 Fixed Ferrite Sleeve is engineered specifically for flat cable applications, supporting up to 13 maximum wires with internal dimensions of 18.8 mm width and 1.1 mm height. This ferrite sleeve provides effective electromagnetic interference (EMI) filtering, critical for digital devices and display controllers to maintain signal integrity.

The sleeve is constructed from 4W1500 ferrite material, known for its optimal EMI suppression characteristics. The device's impedance rating of 52Ω at 100 MHz makes it suitable for filtering high-frequency noise commonly encountered in sensitive electronic circuits.

With external dimensions of 23.8 mm width, 7 mm depth, and 6.3 mm height, the ferrite sleeve offers a compact design that can be easily integrated into cabling solutions. The fixed, non-openable sub type ensures a secure position once installed by threading it over a flat cable before connectors are applied, often held in place with heat shrink sleeving or adhesive methods.

This product complies with RoHS standards, ensuring compliance with environmental regulations for hazardous substances. It offers reliable performance in typical operating conditions encountered in electronic industrial applications and digital device manufacturing.

Applications include industrial electronics, laboratory equipment, manufacturing machinery control, and digital communication devices requiring EMI protection. The ferrite sleeve helps reduce noise emissions and improves overall system electromagnetic compatibility (EMC).

The ferrite sleeve has a fixed sub type ensuring stability during use. Internal dimensions measure 18.8 mm width and 1.1 mm height for precise fit. Material type is 4W1500 optimized for EMI filtering performance. It offers an impedance of 52Ω at 100 MHz frequency to reduce electromagnetic noise.

External dimensions are 23.8 mm width, 7 mm depth, and 6.3 mm height for compact installation. Non-openable design simplifies installation by threading over cables before connector application. RoHS compliant, ensuring environmentally safe manufacturing standards.

Manufactured in Taiwan, Province Of China, maintaining quality and manufacturing standards.

The Wurth Elektronik 7427225 Ferrite Sleeve is an ideal solution for improving EMI performance in electronic assemblies, contributing to enhanced device reliability and compliance with international electromagnetic compatibility standards. Browse more electronic components and EMI protection solutions in the Electronics Components category at EnvMart.
