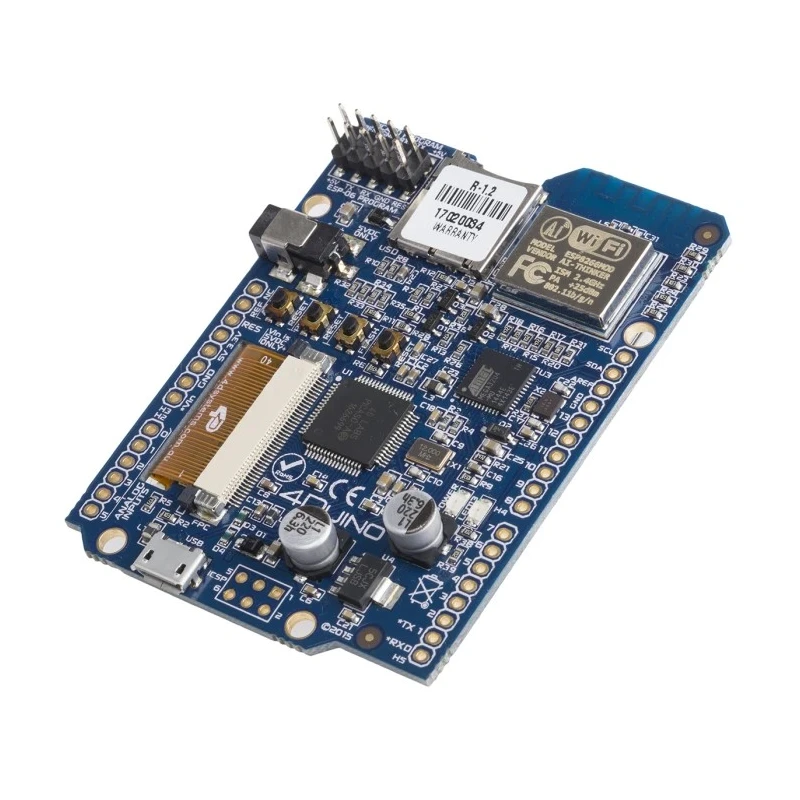

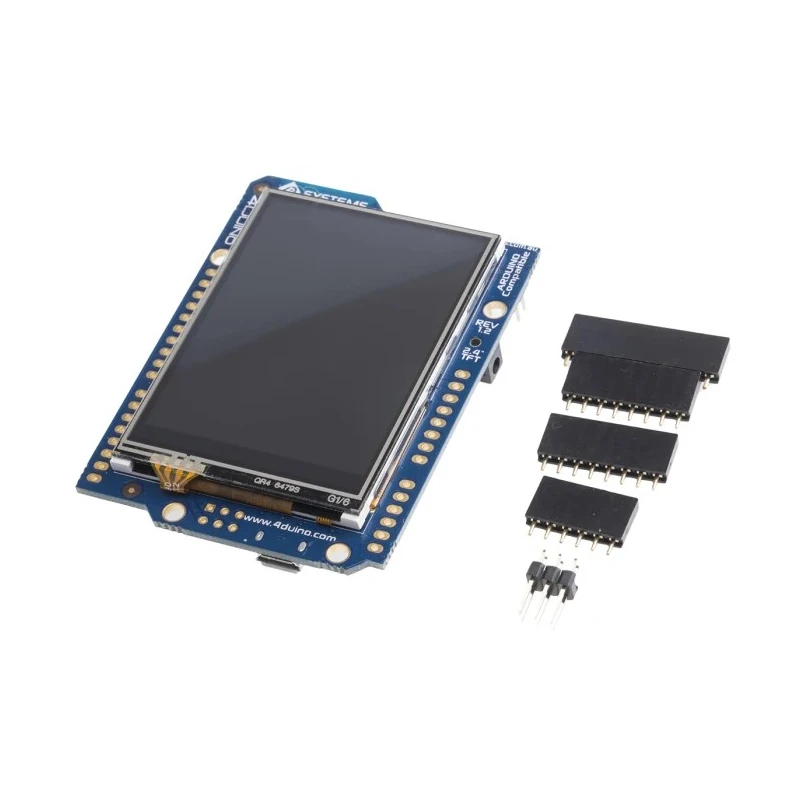

4D Systems 4Duino-24 Arduino Compatible 2.4-inch QVGA 240 x 320 Pixel LCD Colour Display Touch Screen Module 4Duino-24

4D Systems 4Duino-24 LCD Colour Display Touch Screen Module integrates an Arduino-compatible 2.4-inch QVGA 240 x 320 pixel TFT LCD with resistive touchscreen, intended for industrial automation, laboratory, and embedded electronic applications. This module combines a powerful microcontroller and GPU with wireless communication capability, enabling robust, interactive display and control solutions.

The device features a 16MHz ATmega32u4 microcontroller with 32KB Flash memory, 2.5KB SRAM, and 1KB EEPROM, supporting complex firmware for custom applications. The integrated PICASO GPU with 14KB Flash and SRAM manages advanced graphics rendering on the 60.96 mm diagonal display, which boasts a 49 x 37 mm viewing area and LED backlight providing 304 cd/m² brightness and a 250:1 contrast ratio for enhanced readability.

Wireless connectivity is provided by an ESP8266 IEEE 802.11b/g/n WiFi module with 1MB of onboard Flash memory, ensuring seamless Internet of Things (IoT) integration. Interfaces include 20 GPIO pins, of which 7 can output PWM signals and 12 accept analogue inputs, allowing for flexible peripheral and sensor integration.

The unit supports power input from +4.0V to +5.5V DC via a barrel jack socket and is designed to operate reliably within ambient temperatures ranging from -15°C to +65°C, suitable for diverse industrial and commercial environments. Additional features include a MicroUSB connector for programming and power and a MicroSD card slot compatible with DOS FAT16 format for multimedia storage and data logging.

The compact physical size, conforming to the Arduino Rev 3 Shield specifications (72.8 x 53.3 x 14.6 mm), facilitates easy mounting and integration into development projects and production systems. This display module is CE certified, ensuring compliance with European standards for electronic devices.

Features a 60.96 mm diagonal LCD color touchscreen display with a 49 x 37 mm viewing area. Incorporates a 16MHz ATmega32u4 microcontroller with 32KB Flash, 2.5KB SRAM, and 1KB EEPROM. Includes PICASO GPU with 14KB Flash and 14KB SRAM for advanced graphics management.

Equipped with ESP8266 IEEE 802.11b/g/n WiFi module and 1MB Flash memory for wireless communication. Provides 20 GPIO pins including 7 PWM outputs and 12 analogue inputs for diverse interfacing. Supports MicroUSB for programming and power, plus MicroSD card slot with FAT16 compatibility.

Power supply range: +4.0V to +5.5V DC with barrel jack socket connection. Reliable operation in ambient temperatures from -15°C to +65°C. Dimensions of 72.8 x 53.3 x 14.6 mm conform to Arduino Rev 3 Shield format.

This 4D Systems 4Duino-24 display module is suited for embedded systems development, IoT projects, industrial control panels, and educational applications requiring a compact, multi-functional interactive touchscreen display with wireless features. EnvMart offers this product within its extensive electronics components portfolio with guaranteed new product condition.

Explore the EnvMart categories for more advanced LCD colour display modules and Arduino-compatible devices for industrial and laboratory automation solutions.
