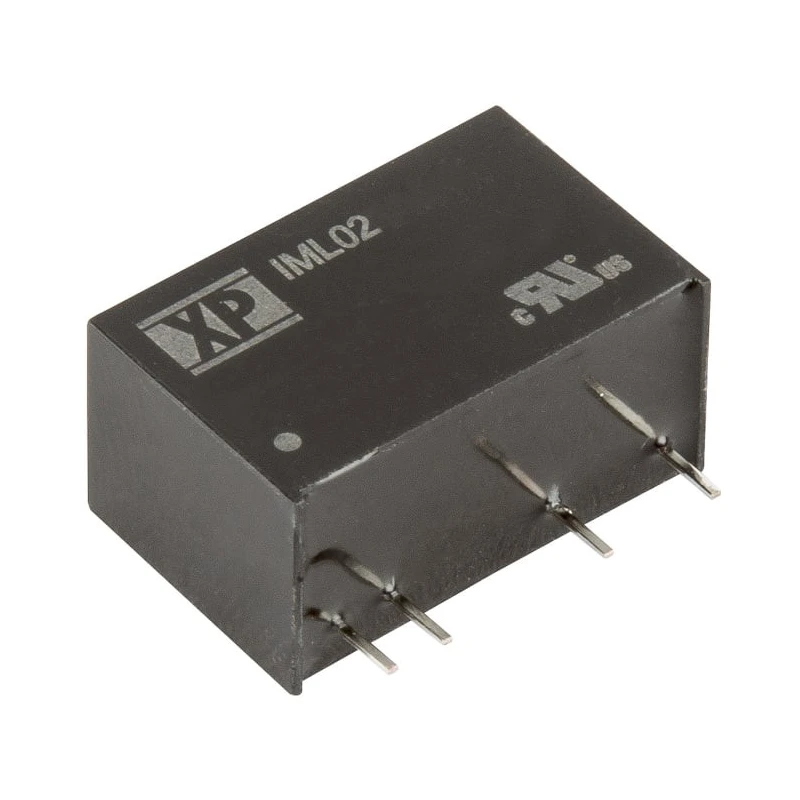

XP Power Isolated DC/DC Converter IML02 3V dc Output 600 mA 5.5V dc Input 2W SIP7 Through Hole
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power IML02 DC/DC Converter, 3V dc/ 600 mA, 5 |
| Brand | XP Power |
| Efficiency | 75% |
| Length | 19.5mm |
| Model | IML02 |
| Depth | 12.5mm |
| Width | 9.8mm |
| Mount Type | Through Hole |
| Series | IML02 |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 2500000h |
| Number of outputs | 1 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 5.5V dc |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 7 |
| Output Voltage 1 | 3V dc |
| Output Current 1 | 600mA |
| Output Voltage Adjustment Range | ±5 V |
| Isolation Voltage | 4kV ac |
Key Features
- Provides 4000V AC isolation for safety and noise reduction.
- Operating temperature range from -40 °C to +85 °C ensures reliability in harsh environments.
- High mean time between failures (MTBF) of 2,500,000 hours guarantees durability.
- Efficient 75% power conversion efficiency reduces energy loss.
- Simple through-hole mounting enables easy PCB integration.
- Single output with ±5V adjustable output voltage range for flexibility.
- Compact SIP7 package measuring 19.5mm by 9.8mm by 12.5mm.
- Suitable for medical and industrial electronics requiring isolation and stability.
Product Description
XP Power IML0205S3V3 is a high-reliability isolated DC/DC converter designed for medical and industrial applications requiring stable and isolated power supply. It features a 3V DC output at 600 mA current capacity with a maximum input voltage of 5.5V DC and minimum of 4.5V DC. Packaged in a compact SIP7 through-hole mount form factor, the converter offers 2 watts of output power with a high efficiency of 75% to minimize power loss and heat generation.
This model supports an extended operating temperature range from -40°C to +85°C, accommodating demanding environments. The robust construction includes 4000V AC isolation voltage and 1 x MOPP at 250V AC, suitable for medical-grade certifications and industrial safety standards. Its seven-pin SIP package ensures straightforward installation on printed circuit boards with through-hole mounting.
The IML02 series from XP Power delivers a mean time between failure (MTBF) rating of 2,500,000 hours, assuring long-term operational reliability. Its output voltage adjustment range of ±5V allows fine tuning for specific system requirements. Measuring 19.5mm length, 9.8mm width, and 12.5mm depth, this converter optimally balances size and performance.
4000V AC isolation for enhanced safety and noise immunity. Wide operating temperature range from -40 °C to +85 °C. Single output with adjustable voltage range providing flexibility. High reliability with 2,500,000 hours MTBF.
High efficiency at 75% reducing energy consumption. Compact SIP7 through-hole package for easy PCB mounting. Medical and industrial application suitability. 2W power rating suitable for low power supply needs.
This XP Power DC/DC converter is ideal for power supplies in medical devices, instrumentation, industrial control systems, telecommunications equipment, and other precision electronic applications requiring isolated power conversion. It combines rugged construction with efficient performance to deliver stable output power under rigorous conditions.
Explore more DC/DC Converters and power supply products to meet diverse industrial and electronic design needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a 3V DC output with a current capacity of 600 mA.
It has a power conversion efficiency of 75%, which helps to minimize energy loss.
The maximum input voltage is 5.5V DC, and the minimum input voltage is 4.5V DC.
It features an isolation voltage of 4000V AC, enhancing safety and noise immunity.
The operating temperature range is from -40 °C to +85 °C, suitable for harsh environments.
The MTBF for this converter is rated at 2,500,000 hours, indicating high reliability.
The SIP7 package measures 19.5mm in length, 9.8mm in width, and 12.5mm in depth.
This model has a single output, which can be adjusted within a range of ±5V.
It is designed for through-hole mounting, making it easy to integrate into PCBs.
It is suitable for medical devices, instrumentation, industrial control systems, and telecommunications equipment.
The robust construction includes features suitable for medical-grade certifications and industrial safety standards.
No additional accessories are required for installation; it is designed for straightforward mounting on PCBs.
