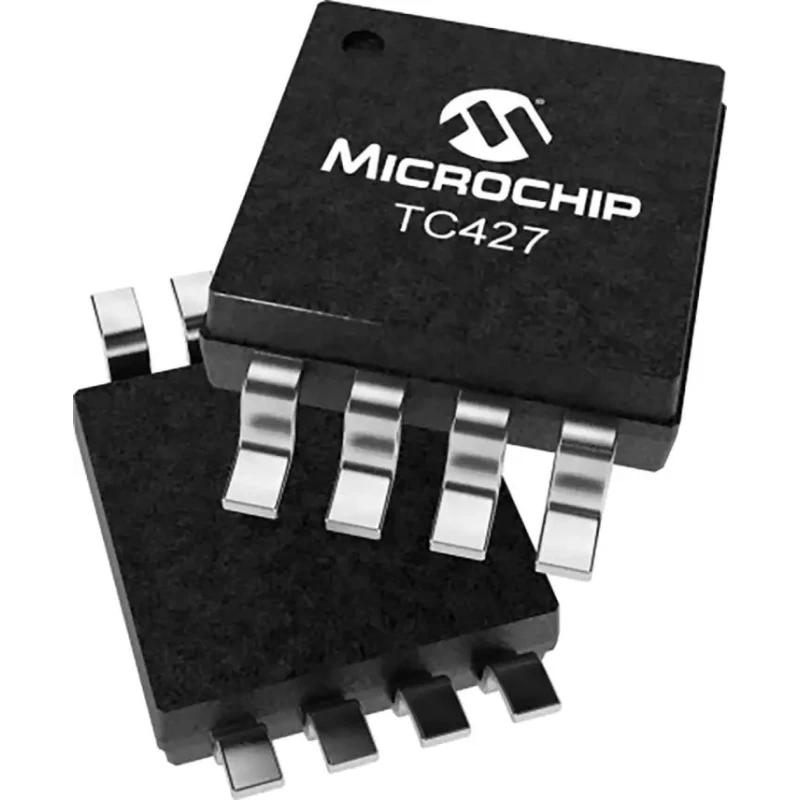

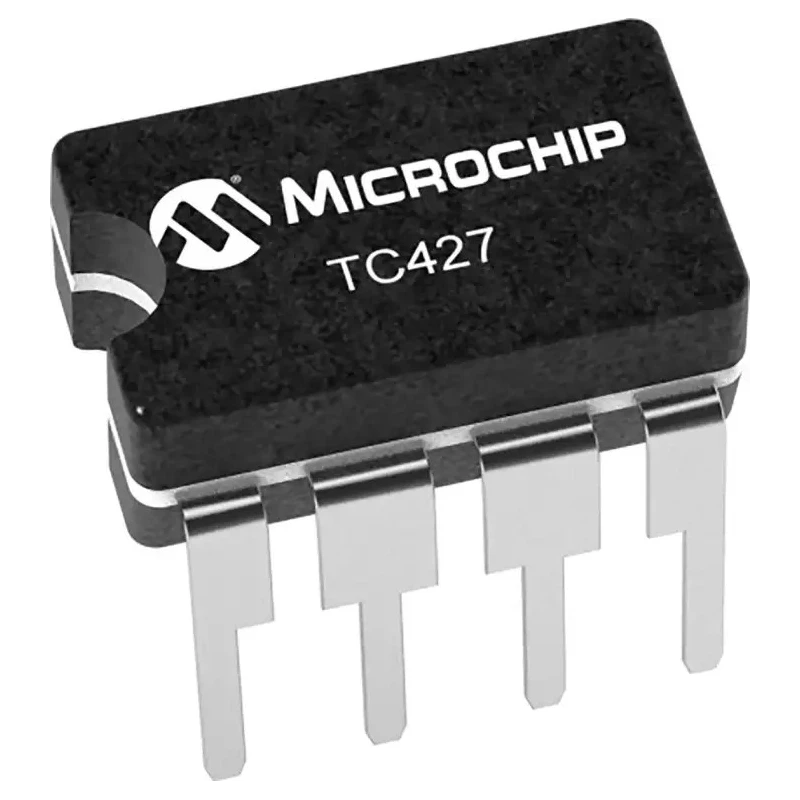

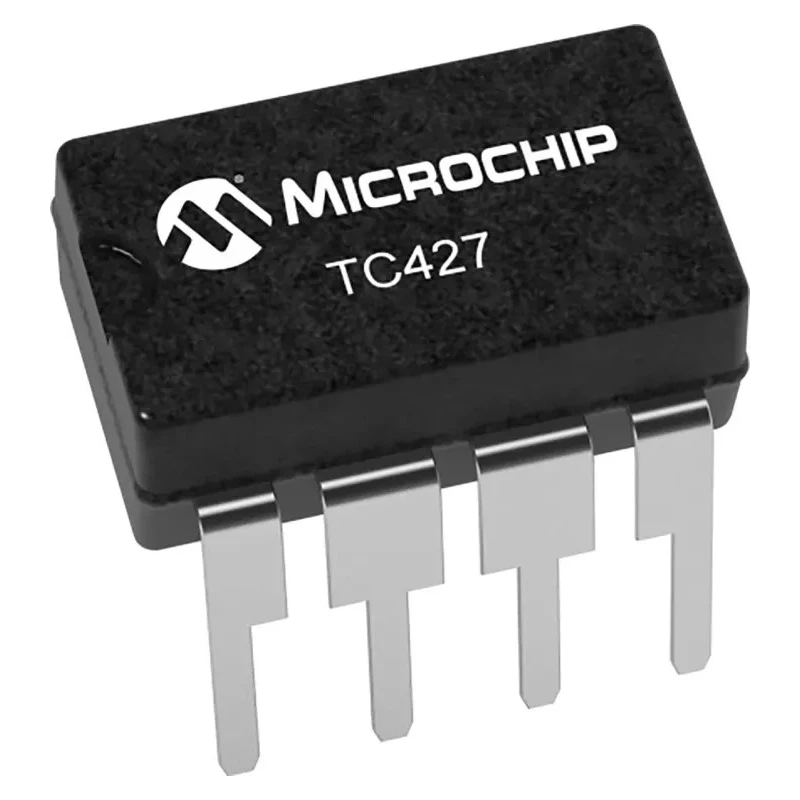

Microchip MOSFET Gate Driver Dual CMOS High-Speed Driver 1.5A Output Current 8-Pin PDIP Package TC427CPA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.06mm |
| Length | 10.16mm |
| Model | TC427CPA |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Series | TC427 |
| Output Current | 1.5A |
| Package Type | PDIP |
| Number of outputs | 2 |
| Rise Time | 30ns |
| Pin Count | 8 |
| Maximum Supply Voltage | 20V |
| Minimum Supply Voltage | 18V |
| Number of Drivers | 2 |
| Fall Time | 30ns |
| Driver Type | MOSFET |
| High Output Voltage Swing | VDD -25 mV, GND +25 mV |
| Low Input Current (Logic 0 or 1) | 1 μA |
| Wide Operating Supply Voltage | 4.5V to 18V |
Key Features
- The driver supports dual outputs for efficient MOSFET switching.
- Comes in a through-hole 8-pin PDIP package for easy mounting.
- High output voltage swing within 25 mV of supply rails for precise control.
- Low input current of 1 μA enables direct interface with TTL/CMOS logic.
- Wide operating supply voltage range from 4.5V to 18V supports versatile applications.
- High-speed switching of 30 ns with a capacitive load of 1000 pF.
- Ideal for use in power MOSFET drivers, line drivers, and DC-DC converters.
- Quiescent power supply current maximum of 8 mA minimizes power consumption.
Product Description
Microchip TC427CPA is a dual CMOS high-speed MOSFET gate driver designed for robust and efficient power management applications. Featuring a maximum output current of 1.5A and an 8-pin PDIP package, the driver neatly translates TTL/CMOS input voltage levels into rail-to-rail output voltage swings with extremely fast switching times, achieving 30 ns rise and fall times under a 1000 pF load.
This device provides rail-to-rail output voltage swing within 25 mV of the power supply and ground rails, ensuring minimal voltage loss and precise driving capability. Its low input current of only 1 μA allows direct interfacing with CMOS and bipolar switch-mode power supply control ICs without additional buffering.
The wide operating supply voltage range from 4.5V to 18V combined with a maximum supply voltage of 20V makes the TC427CPA suitable for a variety of industrial, laboratory, and commercial applications such as DC-DC converters, power line drivers, and automotive systems without automotive standard certification.
The compact 8-pin through-hole PDIP package eases integration into existing PCB layouts with through-hole components. Dual driver outputs facilitate control of high-power MOSFETs or high-speed switches with minimum delay.
Dual high-speed CMOS output drivers with 1.5A output current capability. Fast rise and fall times of 30 ns supporting switching of capacitive loads effectively. Low input bias current allows for simple direct input drive.
Wide voltage range supports most power supply configurations. Low quiescent supply current reduces overall system power consumption. Robust rail-to-rail output voltage swing. Through-hole PDIP package for easy mounting and prototyping.
Ideal for power MOSFET drivers, line drivers, and a broad range of power management IC applications.
Microchip products are trusted components in industrial controls, power supply management, and electronic design applications. Explore more from Microchip and related MOSFET Gate Drivers at EnvMart for comprehensive solutions and professional-grade components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a maximum output current capability of 1.5A, allowing it to drive high-power MOSFETs effectively.
The TC427CPA features fast rise and fall times of 30 ns, which supports efficient switching of capacitive loads.
It operates within a wide supply voltage range of 4.5V to 18V, making it versatile for various applications.
The driver is housed in an 8-pin PDIP package, which allows for easy mounting on PCBs.
The TC427CPA has a low input current of only 1 μA, enabling direct interfacing with TTL/CMOS logic without buffering.
The maximum supply voltage for this model is 20V, ensuring compatibility with various power supply configurations.
This model features dual outputs, allowing for efficient control of multiple MOSFETs or switches.
The dimensions of this model are 4.06 mm in height, 6.6 mm in width, and 10.16 mm in length.
It is ideal for use in power MOSFET drivers, line drivers, and DC-DC converters, among other power management applications.
The maximum quiescent power supply current is 8 mA, which helps minimize overall power consumption in systems.
This model is a dual CMOS high-speed MOSFET gate driver, designed for robust power management applications.
It provides a high output voltage swing within 25 mV of the supply rails, ensuring precise control over the output.
