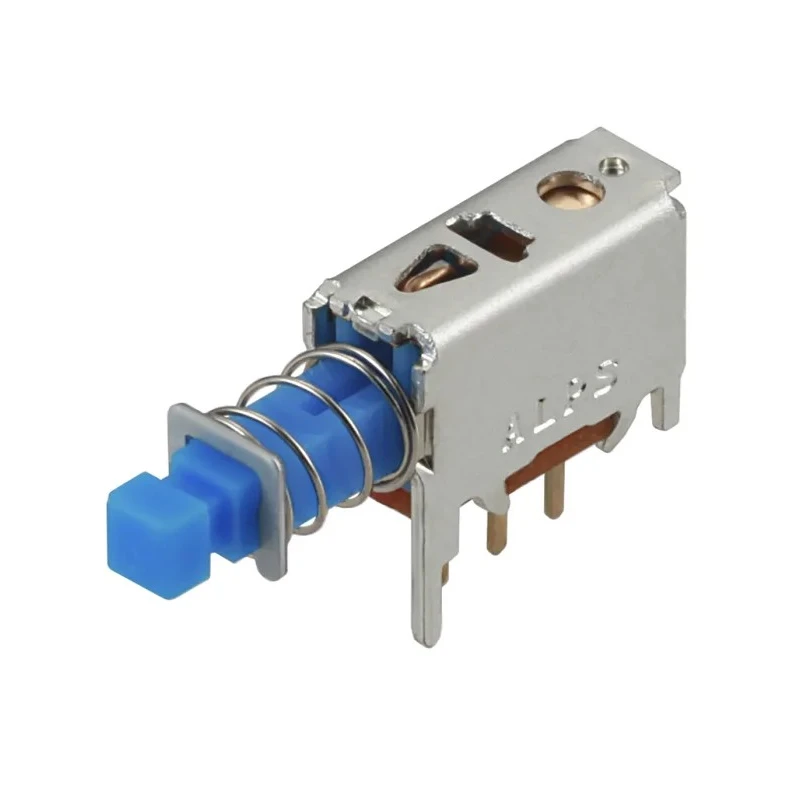

Alps Alpine Push Button Switch PCB Mount, Latching SPDT, 30 V DC, Black Actuator, Square Style SPPJ3

Name: Alps Alpine Push Button Switch PCB Mount, Latching SPDT, 30 V DC, Black Actuator, Square Style SPPJ3
Brand: Alps Alpine
SKU: 193996
Price: 3.4 USD
Availability: InStock



Category Push Button Switches & Components Brand Alps Alpine Condition New

Specifications

Country of Origin	India
Brand	Alps Alpine
Height	8.3mm
Model	SPPJ3
Width	6.6mm
Mount Type	PCB
Series	SPPJ3
Maximum Operating Temperature	85°C
Contact Configuration	SPDT
Minimum Operating Temperature	-40°C
Terminal type	PCB Pin
Standards/Approvals	RoHS
Switch Operation	Latching
Actuator Colour	Black
Contact DC Voltage	30V dc
Actuator Style	Square
Switch Contact Current	200mA

Key Features

The actuator features a 2.5 mm travel distance for precise control.
Designed for PCB mount in space-critical circuits.
Offers latching switch operation with SPDT contact configuration.
Rated for 30 V DC at a contact current of 200 mA.
Operating temperature range from -40°C to 85°C ensures reliable performance.
Compact dimensions of 8.3 mm height and 6.6 mm width fit tight spaces.
Square style black actuator for easy tactile feedback.
Constructed to meet RoHS compliance and environmental standards.

Product Description

Alps Alpine SPPJ3 Series Push Button Switch offers a compact, robust PCB mount solution ideal for electrics and automation systems requiring reliable latching operation. The switch operates as a Single Pole Double Throw (SPDT), rated at 30 V DC and 200 mA contact current, perfect for space-critical electronics.

Featuring a black square actuator with a 2.5 mm travel distance, it provides precise tactile feedback. Its design supports both momentary and latching types, with this specific model functioning as a latching switch to maintain contact position until toggled again.

The device measures 8.3 mm in height and 6.6 mm in width, making it suitable for applications with stringent space limitations. It operates safely within a wide temperature range from -40°C to 85°C, enabling use in demanding industrial and commercial environments.

With RoHS certification ensuring environmental compliance, and a tested mean time before failure of 10,000 cycles, this switch combines longevity and sustainability. The PCB pin terminal type simplifies installation on circuit boards.

The actuator features a 2.5 mm travel distance for precise control. Designed for PCB mount in space-critical circuits. Offers latching switch operation with SPDT contact configuration. Rated for 30 V DC at a contact current of 200 mA.

Operating temperature range from -40°C to 85°C ensures reliable performance. Compact dimensions of 8.3 mm height and 6.6 mm width fit tight spaces. Square style black actuator for easy tactile feedback. Constructed to meet RoHS compliance and environmental standards.

Durability tested with a mean time before failure of 10,000 cycles.

This Alps Alpine switch is suitable for use in electrical control panels, automation equipment, telecommunications, and various industrial applications requiring dependable manual switching capability on PCBs. Its compact size and robust design facilitate integration into manufacturing and laboratory equipment, HVAC control systems, and consumer electronics.
