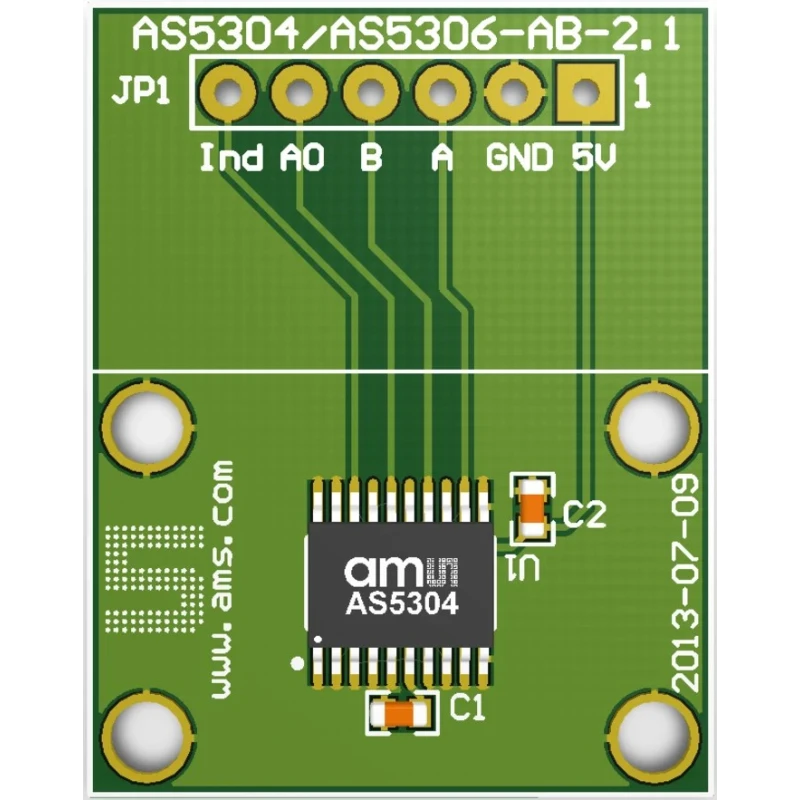

ams OSRAM Position Sensor Adapter Board AS5304-TS_EK_AB for AS5304 Sensor Development Tool

Free Delivery in India | Lowest Global Shipping Charges

ams OSRAM Position Sensor Adapter Board AS5304-TS_EK_AB for AS5304 Sensor Development Tool

Name: ams OSRAM Position Sensor Adapter Board AS5304-TS_EK_AB for AS5304 Sensor Development Tool
Brand: ams OSRAM
SKU: 167589
Price: 29.24 USD
Availability: InStock



Category Sensor Development Tool Brand ams OSRAM Condition New

Specifications

Country of Origin	Austria
Brand	ams OSRAM
Model	AS5304-TS_EK_AB
Sensor Technology	Position Sensor
For Use With	AS5304
Standards/Approvals	RoHS
Kit Classification	Adapter Board
Featured Device	AS5304
Kit Name	AS5304-TS_EK_AB

Key Features

The adapter board enables quick testing and evaluation without building custom test fixtures or PCBs.
Requires only a 5V power supply for normal operation.
Equipped with quadrature AB outputs compatible with microcontroller quadrature counters.
Includes JP1 connector and four 2.6mm mounting holes for secure installation.
Designed specifically for use with AS5304 sensors, ideal for development and testing applications.
RoHS compliant and manufactured in Austria ensuring quality and environmental standards.
Provides an accessible evaluation platform for rapid development of position sensing projects.
Facilitates integration into robotics, automation, and embedded system prototyping workflows.

Product Description

ams OSRAM AS5304-TS_EK_AB Position Sensor Adapter Board is a specialized Sensor Development Tool designed for efficient evaluation of AS5304 and AS5306 linear encoder sensors. This adapter board allows engineers and developers to quickly conduct tests without the need for building dedicated test fixtures or custom printed circuit boards (PCB).

Powered by a standard 5V supply, the board features quadrature AB output signals that interface directly with microcontrollers equipped with quadrature counting capabilities. Its design includes a JP1 connector and four 2.6mm mounting holes, facilitating straightforward integration into development setups and test rigs.

This adapter board is RoHS compliant and manufactured in Austria, ensuring adherence to quality and environmental standards. It provides an accessible means to accelerate development workflows in applications requiring precise position sensing.

Typical industrial, laboratory, and electronic development use cases for this adapter board include robotics, automation, sensor calibration, and embedded system prototyping. It supports rapid iteration and debugging for projects that employ AS5304 series sensors.

The adapter board allows testing of AS5304 linear encoders without custom PCB fabrication. Operates on a 5V power supply with quadrature AB outputs for microcontroller compatibility. JP1 connector and mounting holes enhance usability and secure placement.

RoHS certified and manufactured in Austria, ensuring compliance and quality assurance. Ideal for industrial, laboratory, and development tool applications involving position sensing. Explore more sensor development solutions and adapter boards at EnvMart to fulfill your industrial and electronic component needs.
