Nexperia Digital Transistor 100 mA NPN 50 V 6-Pin UMT PUMH2,115

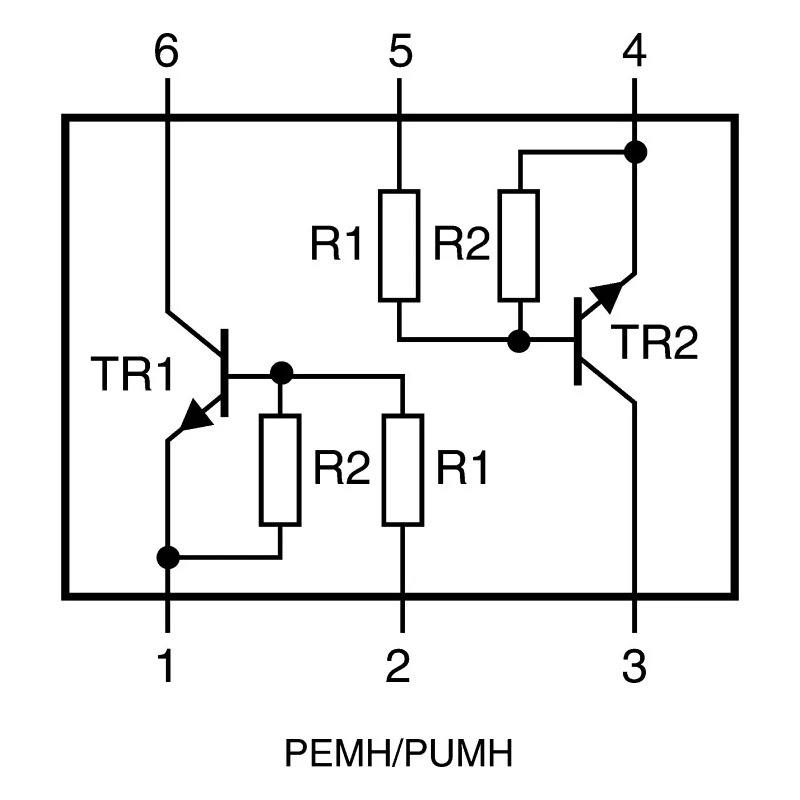

Nexperia PUMH2,115 is a digital transistor designed for switching and amplification purposes, featuring an NPN transistor configuration with integrated bias resistors. It supports a maximum collector current of 100 mA and a collector emitter voltage of 50 V, packaged in a compact 6-pin UMT surface mount device.

This device operates reliably in industrial and automotive environments, complying with the AEC-Q101 automotive standard, and functioning across a wide temperature range from -65°C to 150°C. The minimum DC current gain (hFE) of 80 and maximum transition frequency of 230 MHz make it suitable for fast switching digital circuits.

With a low power dissipation of 200 mW and compact dimensions (2.2 x 2.2 x 1.1 mm), the transistor is optimized for space-constrained electronic applications such as consumer electronics, automotive control, and industrial automation.

The 6-pin UMT package facilitates convenient surface mounting on printed circuit boards, enhancing production efficiency in high-volume manufacturing processes. Operates within -65°C to 150°C temperature range. Minimum DC current gain (hFE) of 80 ensures reliable switching performance.

Maximum power dissipation rating of 200 mW supports moderate power applications. Compact package dimensions measuring 2.2 mm length, 2.2 mm width, and 1.1 mm height. Automotive-grade quality compliant with AEC-Q101 standard.

Pin count of 6 for easy surface mounting on printed circuit boards. Maximum transition frequency up to 230 MHz suitable for digital switching. Manufactured in Malaysia ensuring high reliability and quality.

This digital transistor is ideal for applications in industrial electronics, automotive control systems, consumer electronics, and embedded systems requiring reliable and compact switching components.
