XP Power Ag Series Isolated DC-DC Converter 500V DC Output, 2mA, 12V DC Input, 1W Surface Mount AG05P-12

Free Delivery in India | Lowest Global Shipping Charges

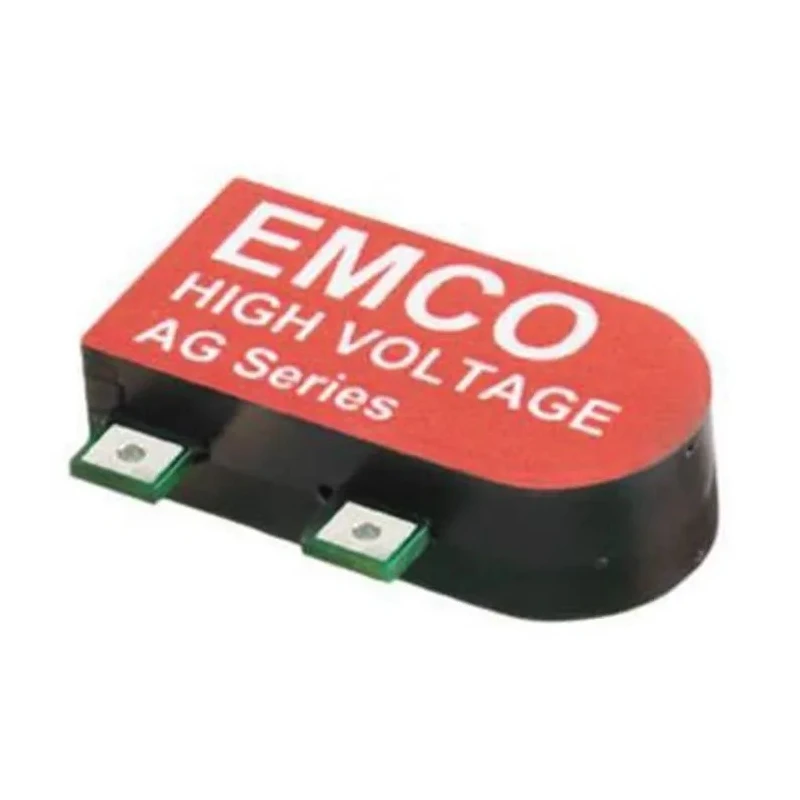

XP Power Ag Series Isolated DC-DC Converter 500V DC Output, 2mA, 12V DC Input, 1W Surface Mount AG05P-12

Name: XP Power Ag Series Isolated DC-DC Converter 500V DC Output, 2mA, 12V DC Input, 1W Surface Mount AG05P-12
Brand: XP Power
SKU: 193799
Price: 196.37 USD
Availability: InStock



Category DC-DC Converter Brand XP Power Condition New

Specifications

Country of Origin	United States
Voltage	Converters / DC-DC Converters XP Power Ag DC/DC Converter, 500V dc/ 2 mA, 12V dc
Brand	XP Power
Length	23.37mm
Model	AG05P-12
Gross Weight	5.7g
Width	17.53mm
Mount Type	Surface
Series	Ag
Maximum Operating Temperature	75°C
Package Type	Surface Mount
Minimum Operating Temperature	-25°C
MTBF	1862000h
Number of outputs	1
Ripple and Noise	0.5% Pk-Pk
Maximum Output Power	1W
Maximum Input Voltage	12V dc
Minimum Input Voltage	0V dc
Number of Pins	5
Output Voltage 1	500V dc
Output Current 1	2mA
Isolation Voltage	500V

Key Features

Ultraminiature isolated converter suitable for applications requiring minimal size and weight.
Surface mount type for ease of installation on PCBs.
Operating temperature range from -25°C to 75°C ensures reliable performance in harsh environments.
Features galvanic input to output isolation with an isolation voltage of 500V.
Incorporates low leakage current and low output/input capacitance to reduce noise.
Designed with quasi-sinewave oscillator and proportional input/output for stable operation.
Rugged design including short circuit protection lasting a minimum of one minute.
Ideal for use with avalanche photodiodes, capacitor charging, photomultiplier tubes, piezo devices, and mass spectrometry.

Product Description

XP Power AG05P-12 is an ultraminiature isolated DC-DC converter delivering a 500V DC output at 2mA from a 12V DC input, with a maximum output power of 1W. This surface mount device operates efficiently across a temperature range of -25°C to 75°C, making it suitable for industrial, laboratory, and scientific instrumentation.

Featuring galvanic isolation between input and output with a voltage isolation rating of 500V, the converter minimizes noise through its low leakage current and low output/input capacitance design. The proportional quasi-sinewave oscillator ensures stable and smooth power delivery, while the integrated short circuit protection enhances device reliability.

The converter's robust performance and miniature footprint make it ideal for applications such as avalanche photodiodes, capacitor charging, electrophoresis, photomultiplier tubes, piezoelectric devices, mass spectrometry, and sustaining ion pumps. Its design eliminates the need for external components and does not require a minimum load for proper functionality.

This device is surface mount packaged with dimensions of 23.37mm length and 17.53mm width, weighing 5.7 grams. It is constructed to meet the needs of high-precision power supply systems in industrial and scientific use cases.

Ultraminiature isolated DC-DC Converter with 500V output voltage. Surface mount type suitable for PCB assembly. Wide operating temperature range from -25°C to 75°C. Galvanic isolation voltage of 500V ensures safety and noise reduction.

Low leakage current and low output/input capacitance for signal integrity. Proportional quasi-sinewave oscillator control for performance stability. Reliable short circuit protection for enhanced durability. Applications include photodiodes, capacitor charging, and mass spectrometry.

No external components or minimum load required.

XP Power AG05P-12 supports critical industrial, laboratory, and scientific environments requiring compact, reliable high-voltage DC power conversion. Explore the extensive range of DC/DC converters and related power components at EnvMart.
