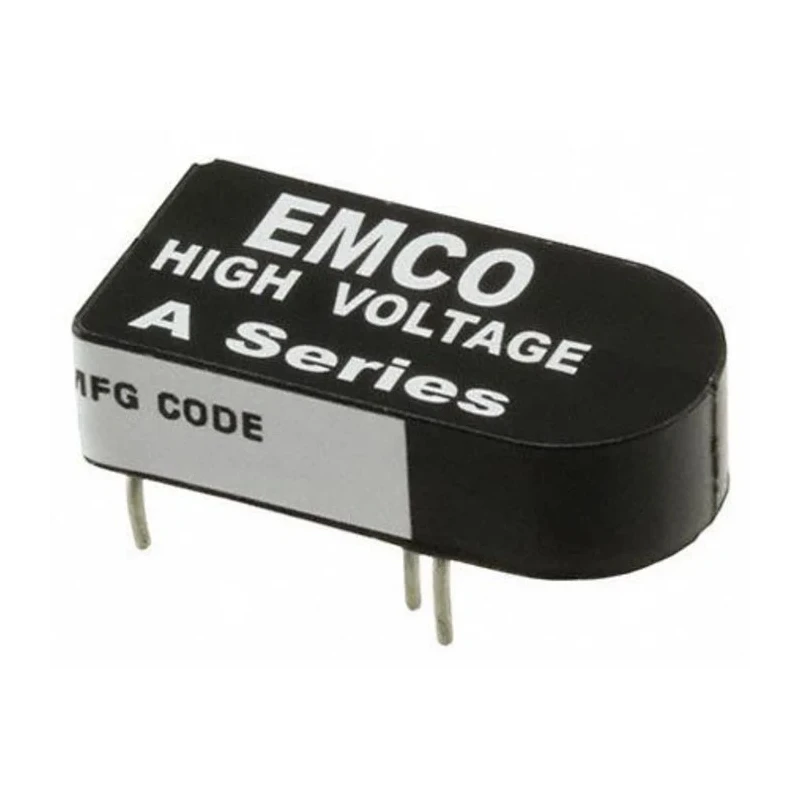

XP Power Isolated DC to High Voltage DC Converter, 300V Output, 3.33 mA, 12V Input, Through Hole Mount, 1 W Power A03N-12

XP Power A03N-12 DC/DC Converter is a compact, isolated DC to high voltage DC converter designed for applications demanding minimal size and weight. This converter provides a stable 300 V output with an output current of 3.33 mA from input voltages between 0 V and 12 V. It uses a through hole mounting format for straightforward PCB integration.

The converter operates across a wide temperature range of -25°C to 75°C, making it suitable for varied industrial and laboratory environments. Galvanic isolation of 500 V ensures safe operation by preventing electrical interference between input and output sections. Additionally, the device features a quasi-sinewave oscillator and control pin for low leakage currents.

XP Power A03N-12 includes protections such as a minimum one-minute short circuit capability and requires no external components, simplifying circuit design. The converter’s low output/input capacitance and minimal ripple and noise (0.7% peak-to-peak) make it ideal for sensitive instrumentation.

Common applications include avalanche photodiodes, capacitor charging, electrophoresis, photomultiplier tubes, piezo devices, mass spectrometry, sustaining ion pumps, and other precise electronic systems requiring stable high voltage DC outputs.

Manufactured in the United States, this model belongs to XP Power’s A Series of ultra-miniature isolated DC to high voltage DC converters, known for high reliability with a mean time between failures (MTBF) of 1,862,000 hours. The device weighs 5.7 grams and is dimensioned at 23.37 mm length, 11.43 mm width, and 6.35 mm depth.

Choose XP Power A03N-12 for compact, efficient, and reliable high voltage DC/DC conversion suitable for industrial, medical, laboratory, and scientific instrumentation applications.

Explore related DC/DC Converters and power supply products on EnvMart for additional options to meet your power conversion needs. Compact through hole mount design ideal for minimal size applications. Operates with input voltages ranging from 0 V to 12 V.

Delivers output current of 3.33 mA with 0.7% peak-to-peak ripple and noise. Provides galvanic isolation with a 500 V isolation voltage rating. Supports operating temperatures from -25°C to 75°C for robust use. Includes built-in protection with minimum one-minute short circuit capability.

No external components required for simple integration. Suitable for precision applications like avalanche photodiodes and piezo devices. Weight of 5.7 grams enables lightweight circuit designs. Manufactured in the United States ensuring high-quality standards.
