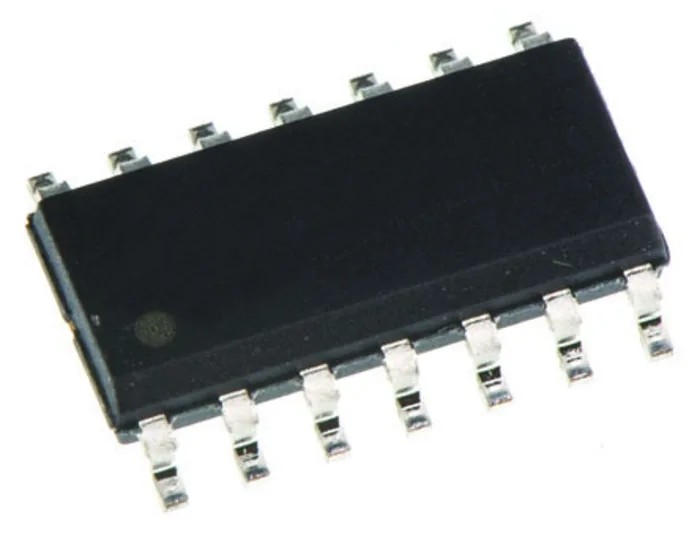

Texas Instruments 14-Pin SOIC Operational Amplifier, 1.2 MHz Gain Bandwidth, 5-30 V Supply LM224D

Texas Instruments LM224D is a versatile operational amplifier offered in a 14-pin SOIC surface mount package. Featuring a gain bandwidth product of 1.2 MHz, this quad channel op amp is ideal for a wide range of electronic applications requiring signal amplification, filtering, and general analog processing.

Designed for use with supply voltages from 5V up to 30V, LM224D accommodates both low and higher voltage circuits while maintaining low offset voltage of 7 mV, which ensures signal accuracy in sensitive instrumentation.

This operational amplifier is optimized for robust performance within industrial, laboratory, and commercial electronic environments across temperatures from -25°C to 85°C. Its moderate slew rate of 0.5 V/μs allows for effective handling of analog signals without excessive distortion.

The quad channel configuration in a compact SOIC package facilitates space-saving PCB layouts in complex electronics systems. With output current of up to -10 mA and low input bias and offset currents, LM224D delivers reliable analog processing with low power consumption.

Being RoHS compliant, this component meets environmental safety regulations and is well suited for modern electronics manufacturing standards. Typical applications include audio amplification, signal conditioning circuits, sensors, instrumentation amplifiers, and control systems.

Offers 4 channels in a single package designed for general purpose amplification. Package type is Surface Mount SOIC with 14 pins for compact PCB integration. Wide supply voltage range from 5V minimum to 30V maximum ensures flexible use.

Input offset voltage is low at 7 mV for precise amplification. Slew rate is 0.5 V/μs ensuring moderate speed of signal change handling. Operating temperature range from -25°C to 85°C for reliable performance in varied environments.

Compliant with RoHS environmental standards for lead-free applications. Physical dimensions include a height of 1.58mm, length of 8.65mm, and width of 3.91mm. Output current capability of -10mA suitable for general purpose circuitry.

Input bias current is -300 nA and offset current is 100 nA for low current operation.

Choose LM224D from Texas Instruments for applications demanding reliable, low power, and moderate bandwidth analog amplification. Explore similar Operational Amplifiers and semiconductor components in the Electronics & Electricals category at EnvMart.
