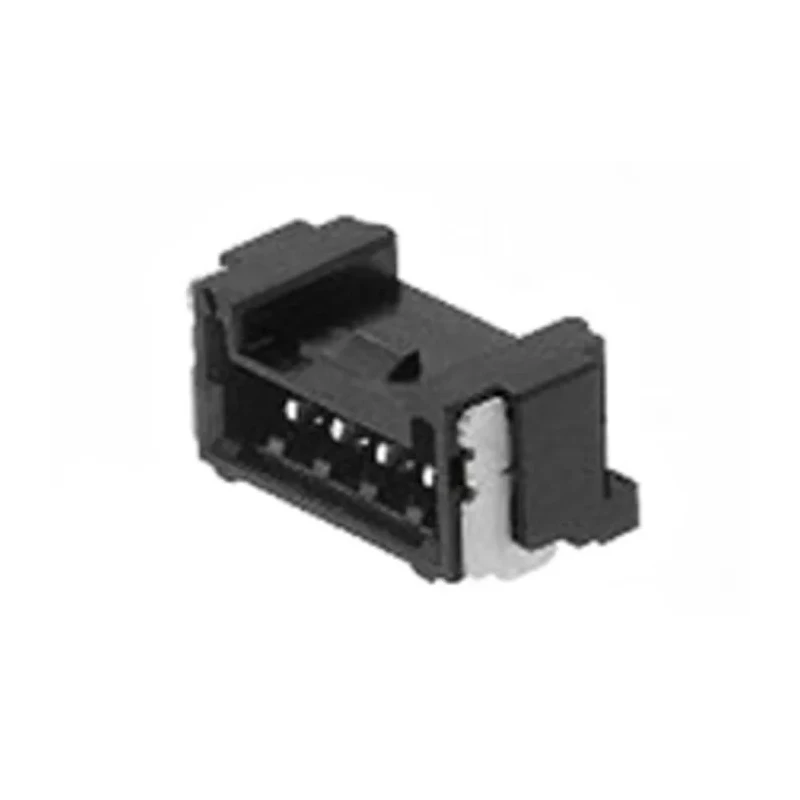

Molex Micro-Lock Plus Series Right Angle Surface PCB Header, 4 Contacts, 1.25 mm Pitch, 1 Row, Shrouded 505567-0471
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 50V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1.5A |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | Micro-Lock Plus |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Compact, shrouded single-row header designed for surface mounting.
- Constructed with polyamide housing ensuring durability in high-temperature environments.
- Contacts made of brass with tin plating for corrosion resistance.
- Rated for 1.5A current and 50V voltage suitable for automotive and industrial use.
- Operates reliably between -40°C and 105°C temperature range.
- Right angle orientation facilitates compact PCB designs in limited spaces.
- Provides mechanical and electrical reliability meeting automotive industry standards.
- Ideal for applications including automotive lighting, steering wheel switches, and industrial automation.
Product Description
Molex 505567-0471 Micro-Lock Plus Series right angle surface PCB header is a shrouded, single-row connector designed with a 1.25 mm pitch for precise wire-to-board connections. It features a robust polyamide housing and brass contacts with tin plating, ensuring durability and electrical integrity in harsh environments.
This PCB header supports a current rating of 1.5A at 50V, operating effectively in temperature ranges from -40°C to 105°C. Its right angle orientation allows for compact, space-saving PCB layouts commonly required in automotive and industrial sectors.
Engineered for high-temperature applications, this connector system meets stringent automotive industry demands and is well-suited for steering wheel controls, paddle shifts, combination switches, as well as head, rear, and side-mirror lighting assemblies. Additional industrial uses include automation controls, consumer electronics, gaming machines, drones, air conditioners, laser printers, and vacuum cleaners.
The shrouded design minimizes accidental contact and improves connector alignment, enhancing safety and installation accuracy. This product is manufactured in Malaysia under rigorous quality standards.
Compact design with 4 contact points and 1.25 mm pitch. Polyamide housing for high temperature resilience. Brass contacts with tin plating provide corrosion resistance. Supports up to 1.5A current and 50V voltage. Temperature rating from -40°C to 105°C suitable for demanding environments.
Right angle configuration for space-saving PCB layouts. Shrouded connector increases safety and installation precision. Applications in automotive, industrial automation, and consumer electronics. Explore more in the PCB Headers category at EnvMart for compatible components and related connectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 1.5A at a voltage of 50V.
It operates effectively within a temperature range of -40°C to 105°C.
The housing is made of polyamide, while the contacts are constructed from brass with tin plating for corrosion resistance.
This PCB header has 4 contacts.
The pitch size of this model is 1.25 mm.
It uses a solder termination type for connections.
This model features a right angle orientation, facilitating compact PCB designs.
The PCB header is manufactured in Malaysia.
It is suitable for automotive applications such as lighting and steering wheel switches, as well as industrial automation and consumer electronics.
This unit is designed as a wire-to-board connector system.
The shrouded design minimizes accidental contact and improves connector alignment, enhancing safety and installation accuracy.
The right angle orientation allows for space-saving PCB layouts, which is essential in applications with limited space.
