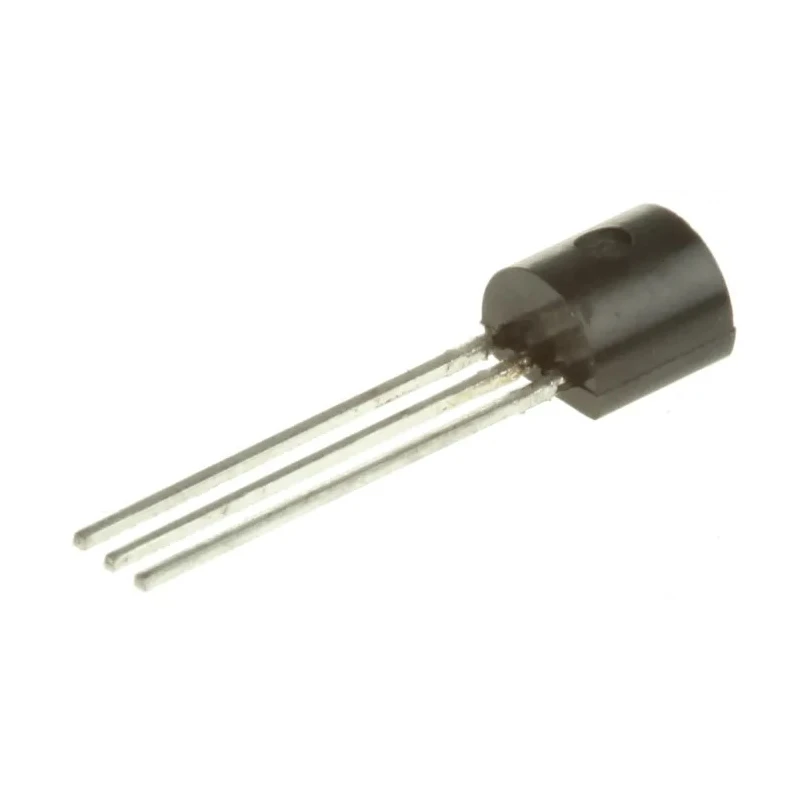

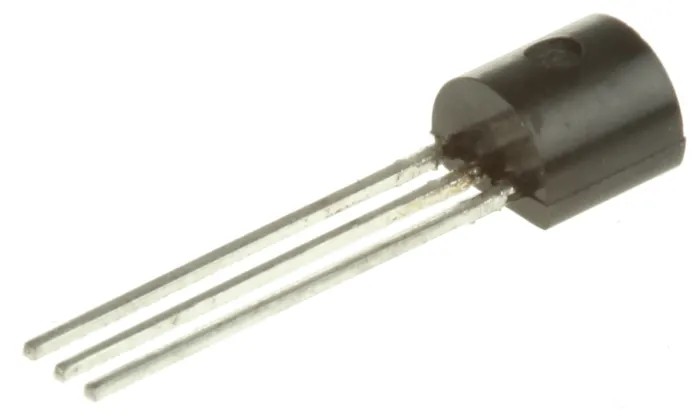

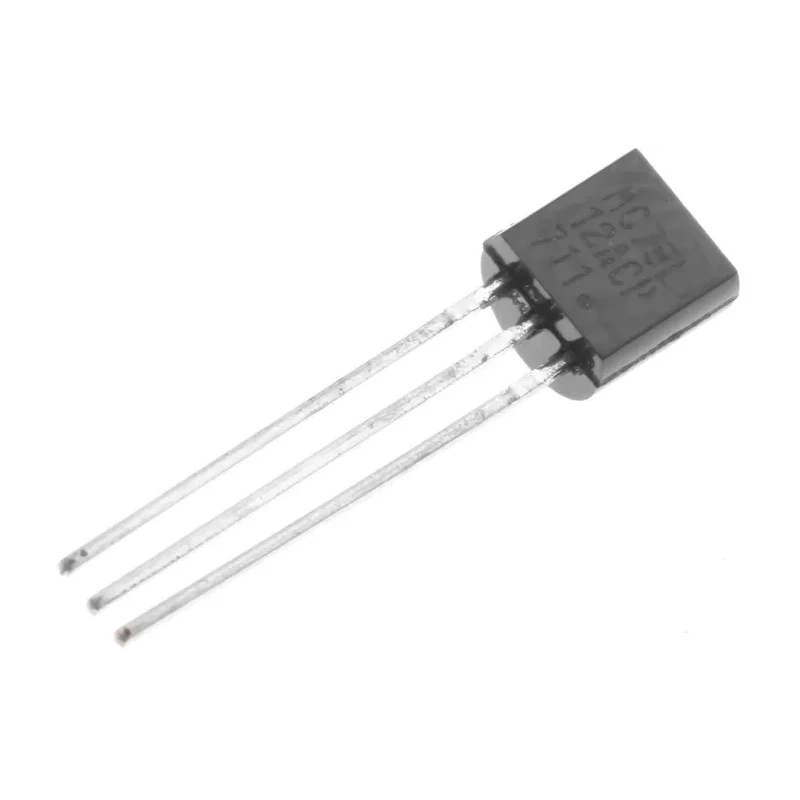

onsemi Voltage Regulator MC78L12ACPG 35V TO-92 3-Pin Positive Polarity 4.2mA Quiescent Current MC78L12ACPG
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators onsemi MC78L12ACPG, Voltage Regulator 35V TO-92 3-Pin RS Stock No |
| Brand | onsemi |
| Height | 5.33mm |
| Length | 5.2mm |
| Model | MC78L12ACPG |
| Width | 4.19mm |
| Mount Type | Through Hole |
| Series | MC78Lxx |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-92 |
| Polarity | Positive |
| Maximum Input Voltage | 35V |
| Quiescent Current | 4.2mA |
| Minimum Input Voltage | 13.7V |
| Pin Count | 3 |
| Automotive Standard | AEC-Q100 |
Key Features
- The regulator supports a maximum input voltage of 35V and minimum input voltage of 13.7V.
- Features internal thermal overload protection and current limiting for safety.
- Complies with automotive standard AEC-Q100 for reliable operation in automotive environments.
- Compact dimensions include length 5.2mm, width 4.19mm, and height 5.33mm for PCB space efficiency.
- Ideal for local on-card regulation in electronic and power management applications.
- Designed for use in industrial, automotive, and electronic device circuits requiring stable 12V supply.
Product Description
onsemi MC78L12ACPG is a linear voltage regulator designed for fixed 12V output with positive polarity. Its TO-92 3-pin package supports through-hole mounting with compact dimensions of 5.2mm length, 4.19mm width, and 5.33mm height. It features a quiescent current of 4.2mA, maximum input voltage of 35V, and minimum input voltage of 13.7V, suitable for a wide range of electronic components and power management IC applications.
This voltage regulator integrates internal thermal overload protection, current limiting, and safe area compensation, allowing stable and safe operation without requiring additional external components. It also complies with the automotive AEC-Q100 standard, making it suitable for automotive and industrial applications demanding reliability and precision.
The compact TO-92 package allows easy incorporation on printed circuit boards requiring reliable voltage regulation for local on-card power management. The positive polarity design ensures compatibility with positive voltage supply lines. Typical applications include power supplies for electronic devices, industrial controls, and automotive electronics.
The regulator supports maximum input voltage of 35V with a fixed 12V output. Internal protections provide safe operation under overload and thermal conditions. The device complies with automotive standard AEC-Q100 ensuring durability in harsh environments.
Compact package simplifies PCB integration and space management. Quiescent current of 4.2mA minimizes power loss during idle operation. Suitable for industrial, automotive, and laboratory power management uses.
This onsemi MC78L12ACPG Voltage Regulator is an excellent choice for engineers and designers looking to implement efficient and reliable 12V regulation in various electronic systems. EnvMart offers this component for customers requiring quality semiconductor power management devices.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this voltage regulator is 35V.
It provides a fixed output voltage of 12V.
The quiescent current for this regulator is 4.2mA.
The dimensions of the TO-92 package are 5.2mm in length, 4.19mm in width, and 5.33mm in height.
The minimum input voltage is 13.7V.
This model supports through-hole mounting.
It complies with the automotive standard AEC-Q100.
The maximum operating temperature is 125°C.
This voltage regulator has a pin count of 3.
Typical applications include power supplies for electronic devices, industrial controls, and automotive electronics.
Yes, it features internal thermal overload protection and current limiting for safe operation.
The polarity of this voltage regulator is positive.
