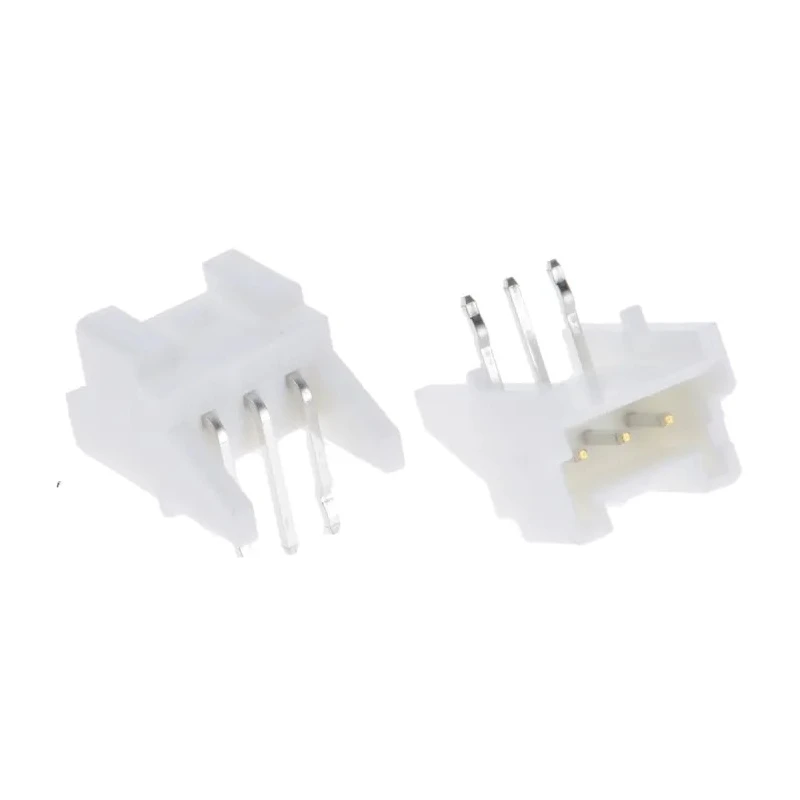

JST PA Series Right Angle Through Hole PCB Header 3 Contacts 2 mm Pitch 1 Row Shrouded S03B-PASK-2 (LF) (SN)
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | JST |
| Orientation | Right Angle |
| Current | 3A |
| Model | S03B-PASK-2 (LF) (SN) |
| Mount Type | Through Hole |
| Contact Material | Copper Alloy |
| Series | PA |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Mating Pin Length | 3mm |
Key Features
- Rated for 3A current and 250V voltage for reliable electrical performance.
- Shrouded housing provides enhanced protection and secure mating.
- Right angle orientation optimizes PCB layout for side entry connections.
- Constructed with copper alloy contacts plated in tin for durability and conductivity.
- Termination type is solder with a mating pin length of 3 mm for robust mechanical retention.
- Operates reliably within -25°C to 85°C temperature range.
- Designed as a through hole mount type for stable PCB installation.
- Header features polarizing guides and a thumb depress locking mechanism to prevent accidental disconnection.
Product Description
JST S03B-PASK-2 (LF) (SN) is a PA Series right angle through hole PCB Header designed for wire-to-board connections with 3 contacts spaced at a 2 mm pitch on a single row. This shrouded header incorporates a thumb depress locking mechanism which prevents accidental disconnection caused by vibration or handling during assembly. The right angle design facilitates side entry connections, improving layout flexibility on PCBs.
The header is constructed from copper alloy contact material plated with tin, ensuring electrical integrity and corrosion resistance. It is rated for 3 amps of current and operates at a voltage of 250 volts, withstanding temperatures from -25°C to 85°C, making it suitable for various industrial and electronic applications.
The through hole mounting type ensures mechanical stability on printed circuit boards. The mating pin length of 3 mm provides secure solder termination. Polarising guides assist in correct orientation and connection, while the shrouded design offers protection for contacts.
This component is ideal for use in manufacturing electronics, industrial equipment, and other applications requiring robust and vibration-resistant PCB connector solutions. Rated for 3A current and 250V voltage. Shrouded housing prevents damage and ensures secure connection.
Right angle orientation enables efficient PCB layout side entry. Copper alloy contacts with tin plating provide reliable conductivity. Solder termination with 3 mm mating pin length for solid attachment. Temperature range from -25°C to 85°C suitable for diverse environments.
Through hole mount type for firm PCB installation. Thumb depress locking mechanism prevents accidental disconnection. Polarising guides ensure proper connector alignment. Ideal for industrial and electronic device manufacturing.
Explore EnvMart for a broad catalog of PCB connectors and electronic components adapted for professional assembly and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a current of 3A and a voltage of 250V, ensuring reliable electrical performance.
This model operates reliably within a temperature range of -25°C to 85°C.
It is designed as a through hole mount type, providing stable installation on printed circuit boards.
The header features 3 contacts arranged in a single row with a 2 mm pitch.
The contacts are constructed from copper alloy and are plated with tin for enhanced conductivity and corrosion resistance.
Yes, it incorporates a thumb depress locking mechanism that helps prevent accidental disconnection due to vibration or handling.
The mating pin length is 3 mm, which provides secure solder termination.
It features a right angle orientation, which optimizes PCB layout for side entry connections.
This header is shrouded, which provides enhanced protection for the contacts.
It uses solder termination, ensuring a robust mechanical connection.
It is designed for wire-to-board connections, making it suitable for various electronic applications.
The country of origin for this model is India.
