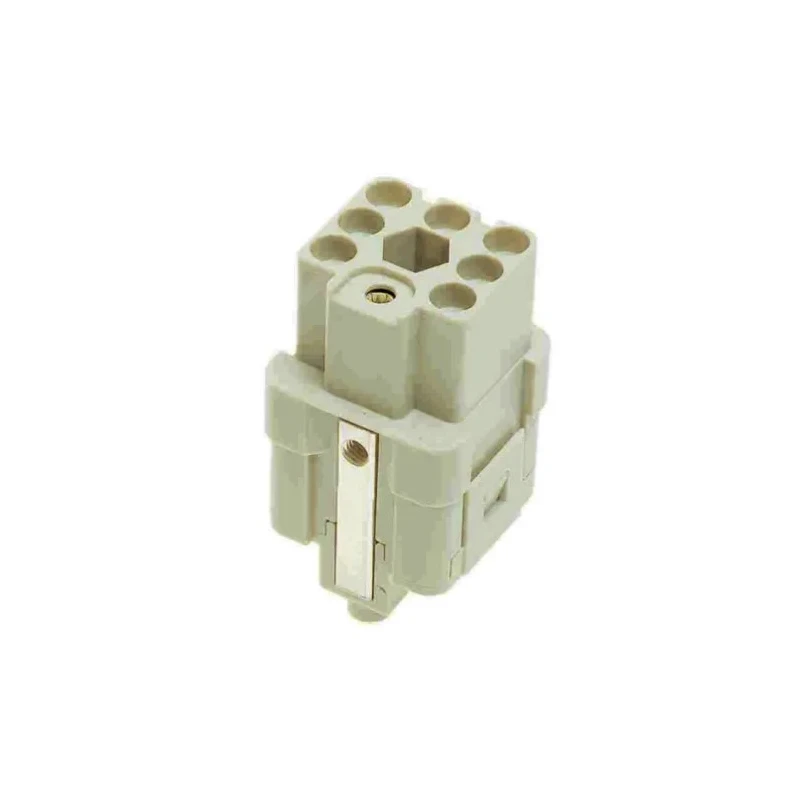

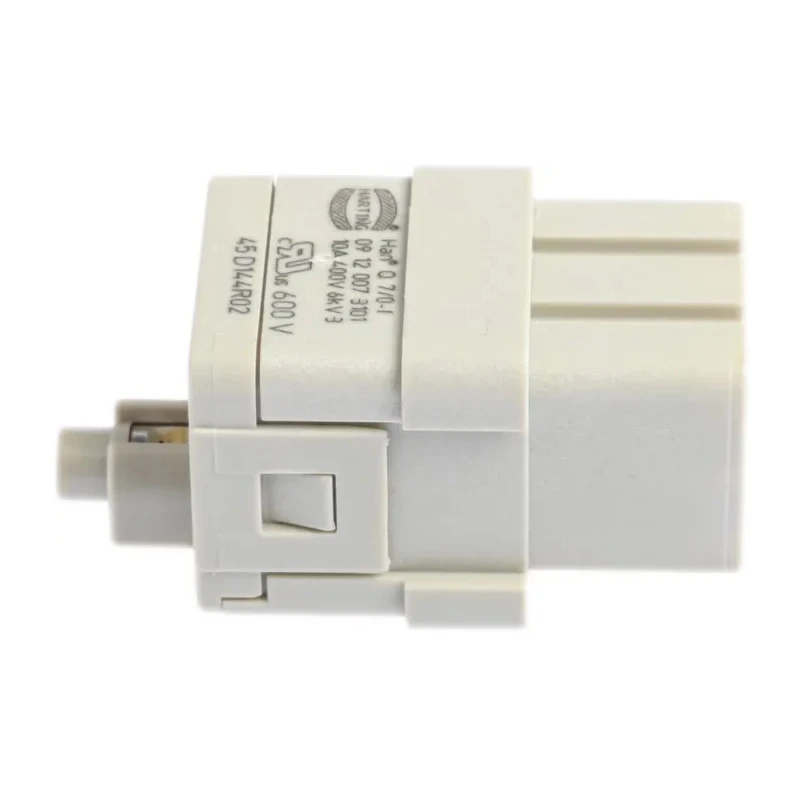

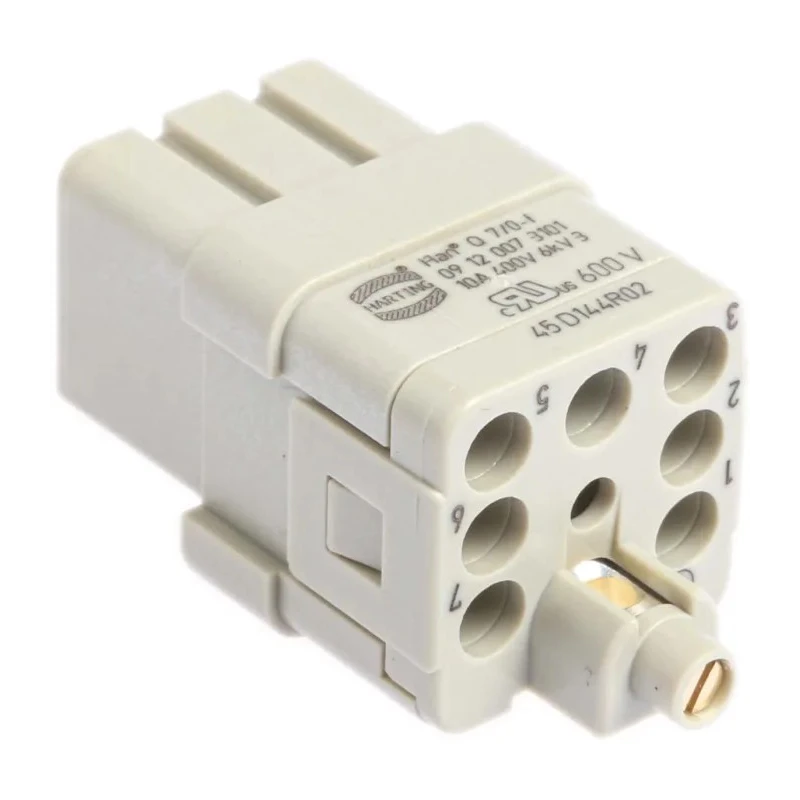

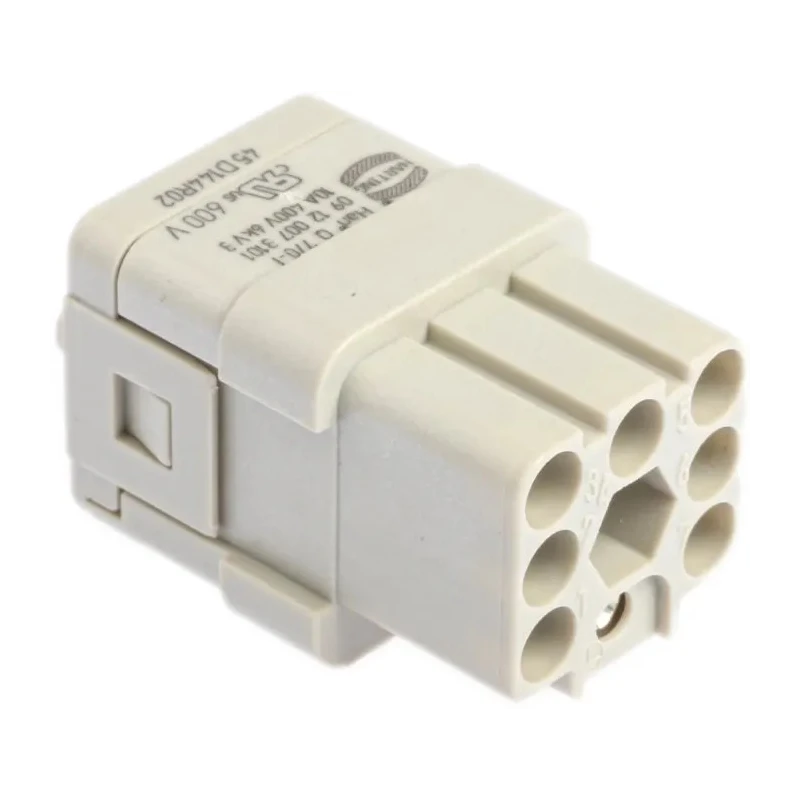

HARTING Heavy Duty Power Connector Insert 10A Han Q Series Female 8 Contacts 09120073101
Specifications
| Country of Origin | Romania |
|---|---|
| Voltage | 400V |
| Brand | HARTING |
| Orientation | Straight |
| IP Rating | IP67 |
| Mount Type | Cable |
| Contact Material | Copper Alloy |
| Current Rating | 10A |
| Series | Han Q |
| Sub Type | Connector Insert |
| Number of Rows | 4 |
| Standards/Approvals | IEC 60664-1 |
| Pole Format | 8 |
| Contact Plating | Silver |
| Number of Contacts | 8 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.14mm² |
| Maximum Wire Size mm² | 2.5mm² |
Key Features
- Rated for 10A current to handle moderate electrical loads effectively.
- Compact Han Q Series design suitable for industrial power distribution.
- Features 8 contacts arranged across 4 rows for multi-conductor connections.
- Constructed with silver-plated copper alloy contacts for optimal conductivity.
- Enclosure offers IP67 ingress protection for reliable use in harsh environments.
- Supports cable mounting with straight orientation for ease of installation.
- Operates up to 400V, conforming to IEC 60664-1 insulation standards.
- Accommodates wire sizes from 0.14 mm² to 2.5 mm² for versatile cabling options.
Product Description
HARTING 09120073101 Heavy Duty Power Connector Insert is engineered for robust industrial use, offering a compact solution for multi-contact power distribution in cable-mounted assemblies. Rated for 10A and designed for operation up to 400V, it meets IEC 60664-1 requirements for insulation coordination, making it suitable for demanding machinery and control systems.
This connector insert features eight silver-plated copper alloy contacts, arranged in four rows with a straight orientation, ensuring excellent electrical conductivity and secure connections. The IP67-rated enclosure provides protection against dust and water ingress, enabling reliable operation in harsh industrial environments including motor control cabinets, factory automation, and outdoor installations.
The connector supports conductors from 0.14 mm² to 2.5 mm² wire size, accommodating a wide range of cable gauges. Its cable-mount type allows insertion into compatible housings designed for inline terminations. Typical applications include power distribution in assembly-line robotics, field service units, and portable test rigs requiring sealed multi-pin power feeds.
Rated 10A current capacity for moderate electrical loads. Han Q Series Female insert with 8 robust contacts. IP67 protection level prevents ingress from water and dust. Constructed from copper alloy with silver plating to reduce contact resistance.
Conforms to IEC 60664-1 for clearance and creepage distances. Compatible with wire sizes ranging from 0.14 mm² to 2.5 mm². Designed for straight orientation and cable mounting installations. Suitable for motors, automation, robotics, and outdoor field applications.
This product is manufactured in Romania under stringent quality standards and is supplied new and ready for industrial deployment. Explore more power connectors and heavy-duty inserts in our comprehensive EnvMart electronics and electrical components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector insert is rated for a current capacity of 10A, making it suitable for moderate electrical loads.
It operates at a voltage of up to 400V, conforming to IEC 60664-1 insulation standards.
It features 8 contacts arranged in 4 rows, designed for multi-conductor connections.
This model has an IP67 rating, providing protection against dust and water ingress, suitable for harsh environments.
The contacts are constructed from silver-plated copper alloy, which enhances electrical conductivity.
It accommodates wire sizes ranging from 0.14 mm² to 2.5 mm², allowing for versatile cabling options.
This model supports cable mounting with a straight orientation for ease of installation.
It is suitable for applications such as power distribution in assembly-line robotics, motor control cabinets, and outdoor installations.
It conforms to IEC 60664-1 standards for insulation coordination, ensuring safety in electrical applications.
This connector insert is manufactured in Romania under stringent quality standards.
The connector insert is designed for straight orientation, facilitating easy installation in compatible housings.
This product is classified as a connector insert within the Han Q Series by HARTING.
